- Page 1 Fast frame Z135 Installation frames / Frames Installation instructions InstallatIon By specIalIst personnel Valid from 06.2016 E 639.2...
-
Page 2: Notes
Fast frame Z135. Insufficient technology. safety-conscious behaviour is nec- knowledge at the time of commissioning and essary for commissioning the product safely. -
Page 3: Table Of Contents
Contents notes..........2 explanation of signs and symbols . -
Page 4: Explanation Of Signs And Symbols
Important notes Explanation of signs and symbols Safety notes Warning notes only qualified specialist personnel may carry out installation and commission- ing! DaNgEr Designates an imminent danger that WarNINg could lead to death or severe injuries if Incorrect installation could lead to se- the respective precautionary measures vere injuries and/or damage to property. - Page 5 Important notes no personnel or obstacles are permitted to WarNINg be within the range of pivoting and/or travel- ling shutters while they are moving. Keep Danger of suffocation from packaging personnel and objects away until the shut- foil. ters have reached their final position. ...
-
Page 6: Ec Declaration Of Conformity
Bahnhofstrasse 14 - 18 77972 Mahlberg, Germany declares that the product: Fast frame Z135 to which this guideline refers meets all the applicable requirements of the ec Directives specified above, and that the following harmonised standards have been applied in full: EN 13659:2004+a1:2008 shutters –... -
Page 7: Installation Faqs
Important notes Installation FaQs Which parts have been delivered? What is to be taken into account during the function • 3 × frame profiles, loose, check? with pre-mounted bracket • 2 × clamping brackets • T he frame must be installed parallel and at • 2 × angle brackets a right angle in the reveal to ensure that the • 4 × M5 screws (S1) window shutters work perfectly. -
Page 8: Product Description

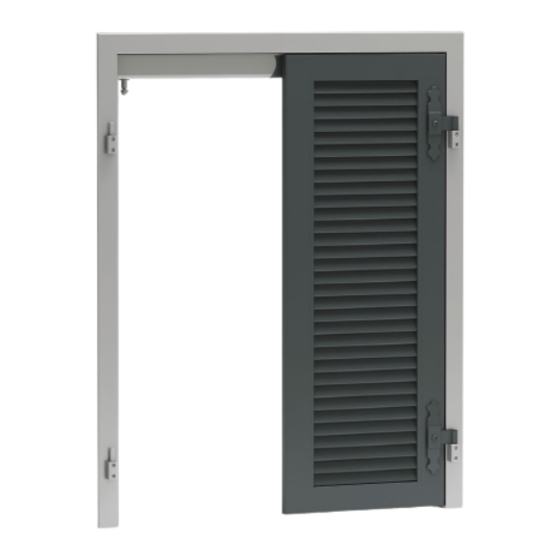

1 product description Scope of delivery Fast frame Z135 Contained in the scope of delivery Frame, in 3 parts Frame profiles with pre-mounted brackets accessories clamping angle bracket bracket 4× M5... -
Page 9: Tools Required
Fitting material to be provided by the customer! VolEtroNIC io NotES Detailed instructions for the installation of the EHRET VOLETRONIC io or VO- LETRONIC Solar shutters can be found in the enclosed installation and operat- ing instructions: e 641 VoletronIc io resp. -
Page 10: Installation Instructions
2 Installation instructions 2 Installation instructions assembling the frame Insert the angle and clamping brackets into Caution the frame profile risk of cutting injuries caused by the sharp edges of mitre cuts on frame profiles Wear protective gloves! NotES ... - Page 11 2 Installation instructions Fasten the angle bracket using the put the frame corner together screWs...
-
Page 12: Securing The Frame In The Reveal
2 Installation instructions Securing the frame in the reveal Fix the frame corner using the s1 screWs WaRninG tension the clamping bracket Danger of injury and property damage caused by unsuitable fitting materials select the fastening material in accordance with the load capacity of the installation sub- strates! NotES... - Page 13 pre-drill the frame for bolting with counter- Fasten the frame sunk screws NotES EHRET recommends fastening the frame to avoid a collision with the clip profile, use 100 mm away from each of the frame corners countersunk screws for fastening purposes.
-
Page 14: Fastening The Clip Profiles
2 Installation instructions Fastening the clip profiles Insert the top clip profile in the lintel into the Insert the clip profiles on the left-hand and frame groove and clip into place right-hand sides in the reveal into the frame groove and clip into place Clip profile, lintel Clip profile, left... -
Page 15: Fastening The Clip Profiles When Installing Voletronic (Optional)
Window NotES Clip profile, right Detailed instructions for the installation of the EHRET VOLETRONIC io or VOLETRONIC Solar shutters can be found in the enclosed installa- tion and operating instructions: e 641 VoletronIc io resp. e 668 VoletronIc solar. - Page 16 © 02.2022 eHret GmbH | e 639.2 | this technical document includes information that is protected by copyright. all rights are re- served. We reserve the right to make changes, including technical changes, in this document. this document has been prepared with...
