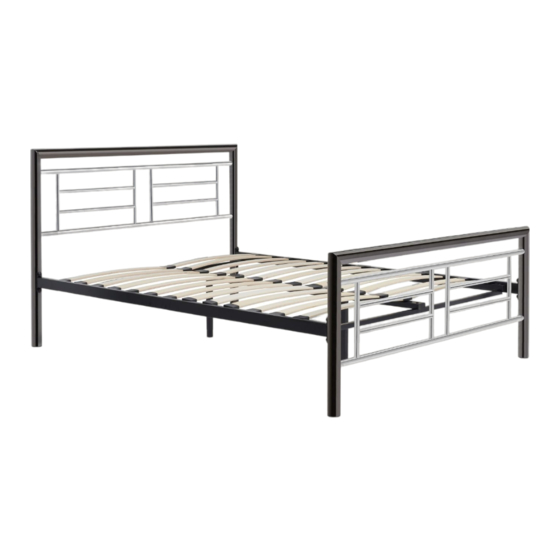

IMPORTANT： ： ： ： READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE OR
USE YOUR MONTANA 4'6 BED FRAME.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
HEALTH & SAFETY： ： ： ：
DO NOT jump on this bed frame
DO NOT use this bed frame if any parts are missing,damaged or worn
DO NOT use this bed frame unless all fixings are tightly secured
Always use on a level, even surface
WARNING： ： ： ： IF THIS BED FRAME IS ON A LAMINATED FLOOR YOU MUST PLACE SOME PROTECTION
UNDER ALL LEGS TO STOP THE BED FRAME FROM MOVING. IF THIS IS NOT ADHERED TO THERE IS
NO GUARANTEE IF THE BED FRAME COLLAPSES
CARE & MAINTENANCE： ： ： ：
Periodically check all screws & fixings to ensure they are tightly secured
DO NOT push the bed frame as this will damage the support legs.
Always lift the bed with 2 people whenever you need to change the bed frames position
Keep any sharp objects away from the metal bed frame
7
2
PARTS LIST
NO
Item
1 Headboard
2 Footboard
3 Side Rails
4 Cross Bar
5 Centre Rail
6 Support Legs
7 Bendwood Slats
ASSEMBLY INSTRUCTIONS
MONTANA 4'6 BED
3
4
Qty NO
1
A
1
B
2
C
2
D
1
E
2
F
26
G
H
I
1
6
HARDWARE LIST
Item
M8 x 25mm JCBC Screw
1/4"x 60mm JCBC Screw
1/4"x 15mm JCBC Screw
Hex Nut
Double Slat Cap
Single Slat Cap
SPANNER
M4 Allen Key
M5 Allen Key
Vendor：S000084
5
Qty
8
6
4
6
13
26
1
1
1
Advertisement
Table of Contents
Related Manuals for Birlea MONTANA
Summary of Contents for Birlea MONTANA
- Page 1 ASSEMBLY INSTRUCTIONS MONTANA 4'6 BED IMPORTANT： ： ： ： READ THESE INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE OR USE YOUR MONTANA 4'6 BED FRAME. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE HEALTH & SAFETY： ： ： ： DO NOT jump on this bed frame...
- Page 2 Vendor：S000084 Step 1: Fix the side rails (3) to the headboard (1) and the footboard (2) using hardware part A and the M5 allen key (I) Do not fully tighten the screws until you have completed step 2 of the assembly You will need to use the M5 allen key (I) as provided for this step of the assembly DO NOT use any power tools as this may damage the frame and will invalidate any claims...
- Page 3 Vendor：S000084 Step 3: Attach the support legs (6) to the centre rail (5) using hardware part C and the M4 allen key (H). Then attach the centre rail (5) to the cross bars (4)using hardware parts B and D with the M4 allen key (H) and the spanner (G) You will need to use the M4 allen key (H) and the spanner (G) as provided for this step of the assembly...
