IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR USING YOUR
MERLIN CABIN BED FRAME.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
HEALTH & SAFETY:
DO NOT jump on this bed frame.
DO NOT use this bed frame if any parts are missing, damage or worn.
DO NOT use this bed frame unless all fixings are secured.
Please keep small parts out of reach of children.
Always use on a level, even surface.
This bed is tested to European safety standard BS EN 747-1 & 2:2012+4I:2015
WARNING: If this bed is placed on a non-carpeted floor you must place some protection under all legs to stop
the bed frame from moving. If this is not adhered to there is no guarantee if the bed frame collapses.
WARNING: High beds are not suitable for use by children under 6 years of age due to risk of injury from falls.
WARNING: Please note the area underneath the bed is to used for storage purpose only
WARNING: High beds present a serious risk of injury from strangulation if used incorrectly. Never attach or
hang anything on any part of the frame that is not designed to be used with the bed, for example, but not
limited to ropes, strings, cords, hooks, belts, and bags.
WARNING: Do not use the high bed if any structural part is missing or broken.
WARNING: Children can become trapped between the bed and adjoining structures including walls, roof
pitches, ceilings and other pieces of furniture. To avoid risk of serious injury, the distance between the top
safety barrier and any adjoining structure shall not exceed 75mm or shall be more than 230mm.
CARE & MAINTENANCE:
Assemble in the room of use.
Assemble on a soft, clean surface.
Please check regularly that all assembly fastening are properly tightened.
DO NOT push the bed frame as this will damage the legs.
Always lift the bed with two people to reposition.
Use a soft, dry cloth to clean - do not use any detergents or chemicals.
Avoid contact with water and direct sunlight. Do not place bed near heat sources, window to keep the
humidity low and prevent mould in and around the bed
INFORMATION
- Maximum thickness of mattress 15cm. Please refer to making headboard.
- Recommend size of mattress L192cm x W92cm x H15cm
- When you are ready to start, make sure that you have the right tools, plenty of space on a clean, dry area
for assembly.
- Check the pack and make sure you have all the part listed.
- Ensure that this product is fully assembly and secured as illustrated before use.
ASSEMBLY INSTRUCTIONS

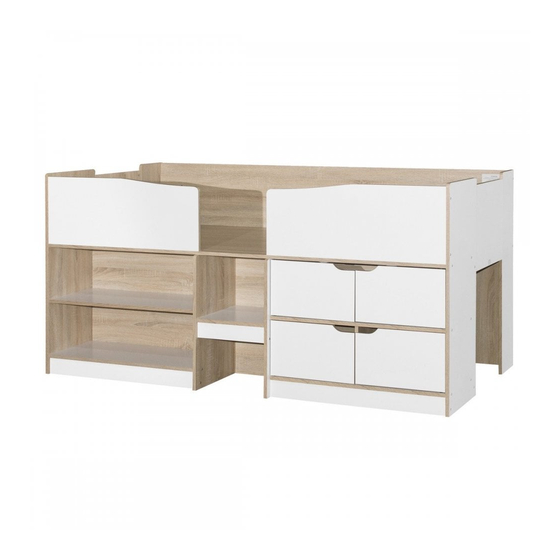

MERLIN CABIN BED
Page 1 of 14

Advertisement

loading
Need help?

Need help?

Do you have a question about the Merlin and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Birlea Merlin

  • Page 1 ASSEMBLY INSTRUCTIONS MERLIN CABIN BED IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR USING YOUR MERLIN CABIN BED FRAME. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. HEALTH & SAFETY: DO NOT jump on this bed frame. DO NOT use this bed frame if any parts are missing, damage or worn.
  • Page 2 Page 2 of 14...
  • Page 3: Parts List

    PARTS LIST HARDWARE LIST: Carton 2 of 3 Carton 1 of 3: Part Description Part Description CAM NUT 15mm Lower Back Panel CAM BOLT 15 Centre Shelf Panel WOOD DOWEL M6 x 25mm 16 Centre Front Plinth M5 x 40mm UNITAR SCREW 17 Right Shelf Centre Panel CSK SCREW M4 x 25mm 18 Front Plinth Panel...
  • Page 4 Insert hardware part A & part B using a screwdriver (not provided). Insert hardware part C using a small mallet (not provided). Insert hardware part J using a small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. 24 x 4 Page 4 of 14...
  • Page 5 Insert hardware part A & part B using a screwdriver (not provided). Insert hardware part C using a small mallet (not provided). Insert hardware part J using a small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. 18 x 2 16 x 2 Page 5 of 14...
  • Page 6 Join the end panels together as shown. Turn to tighten the cam nut part A by using a screwdriver (not provided) clockwise. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Fix the left back post (22) to the left back end panel (2) by using a screwdriver (not provided), and also fix the end support (25) to left center end panel (3) using a screwdriver (not provided).
  • Page 7 Attach the left division panel (8) and right division panel (9) to the center shelf panel (15) and center plinths (16) with screw (D) by using allen key (K) and tighten clockwise. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Attach the lower back panel (7) with screw (D) by using allen key (K) and tighten clockwise.
  • Page 8 Attach the left lower shelf (11) and front plinth (18) together. Attach the left upper shelf panel (13) and left lower shelf (11) to the left division panel (8) and lower back panel (7) by using screw (D) and allen key (K). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 9 Insert the right shelf center panel (17). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Attach the right upper shelf panel (14) using screw (D) by allen key (K). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Page 9 of 14...
  • Page 10 Attach the front base panel (10) by screw (D) using allen key (K). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Attach the left front panel (20) and right front panel (21) using screw (D) by allen key (K). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 11 Attach the assembled left end panel by screw (D) using allen key (K). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Attach the assembled left end panel by screw (D) using allen key (K). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 12 Attach upper back panel (19) with screw (D) by allen key (K). Secure the right back post (23) and left back post. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Secure the support plinths (24) using screw (D) by allen key (K). Attach L bracket (M) with screw (N) by screwdriver (not provided).
  • Page 13 Attach the back base panel (26) with screw (D) by allen key (K). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Fix magnet (F) with screw (H) by screwdriver (not provided). Fix magnet plate (G) with screw (H) by screwdriver (not provided).
  • Page 14 Cover screw hole with sticker (I) as shown. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Page 14 of 14...
