SCREEN COMPONENTS AND THEIR MEANINGS (CONT.)
A
Identification Tab
B
Page Title
Home

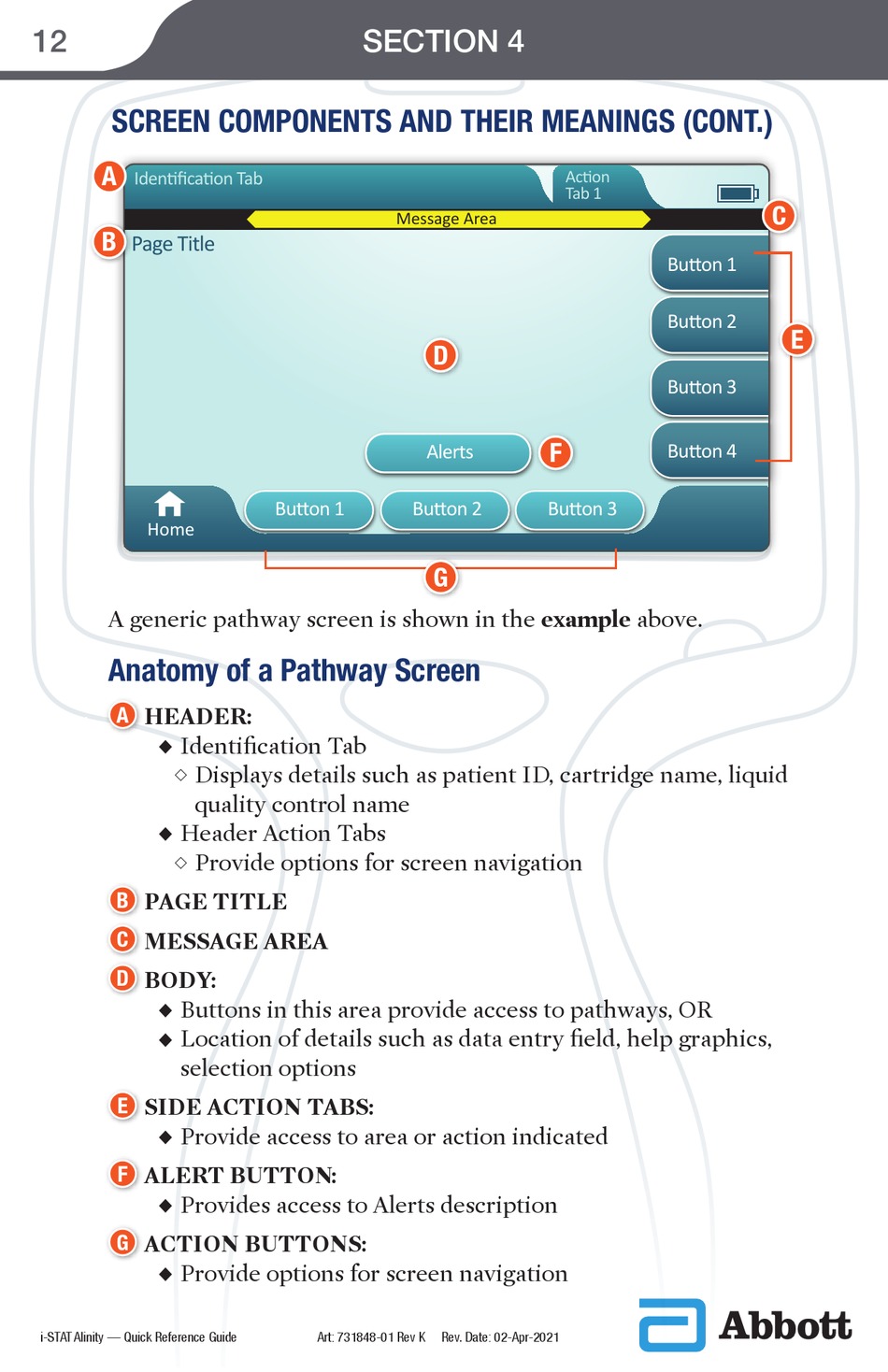

A generic pathway screen is shown in the example above.
Anatomy of a Pathway Screen
A HEADER:
® Identification Tab
Displays details such as patient ID, cartridge name, liquid
¯
quality control name
® Header Action Tabs
Provide options for screen navigation
¯
B PAGE TITLE
C
MESSAGE AREA
D
BODY:
® Buttons in this area provide access to pathways , OR
® Location of details such as data entry field, help graphics,
selection options
E
SIDE ACTION TABS:
® Provide access to area or action indicated
F ALERT BUTTON:
® Provides access to Alerts description
G ACTION BUTTONS:
® Provide options for screen navigation
