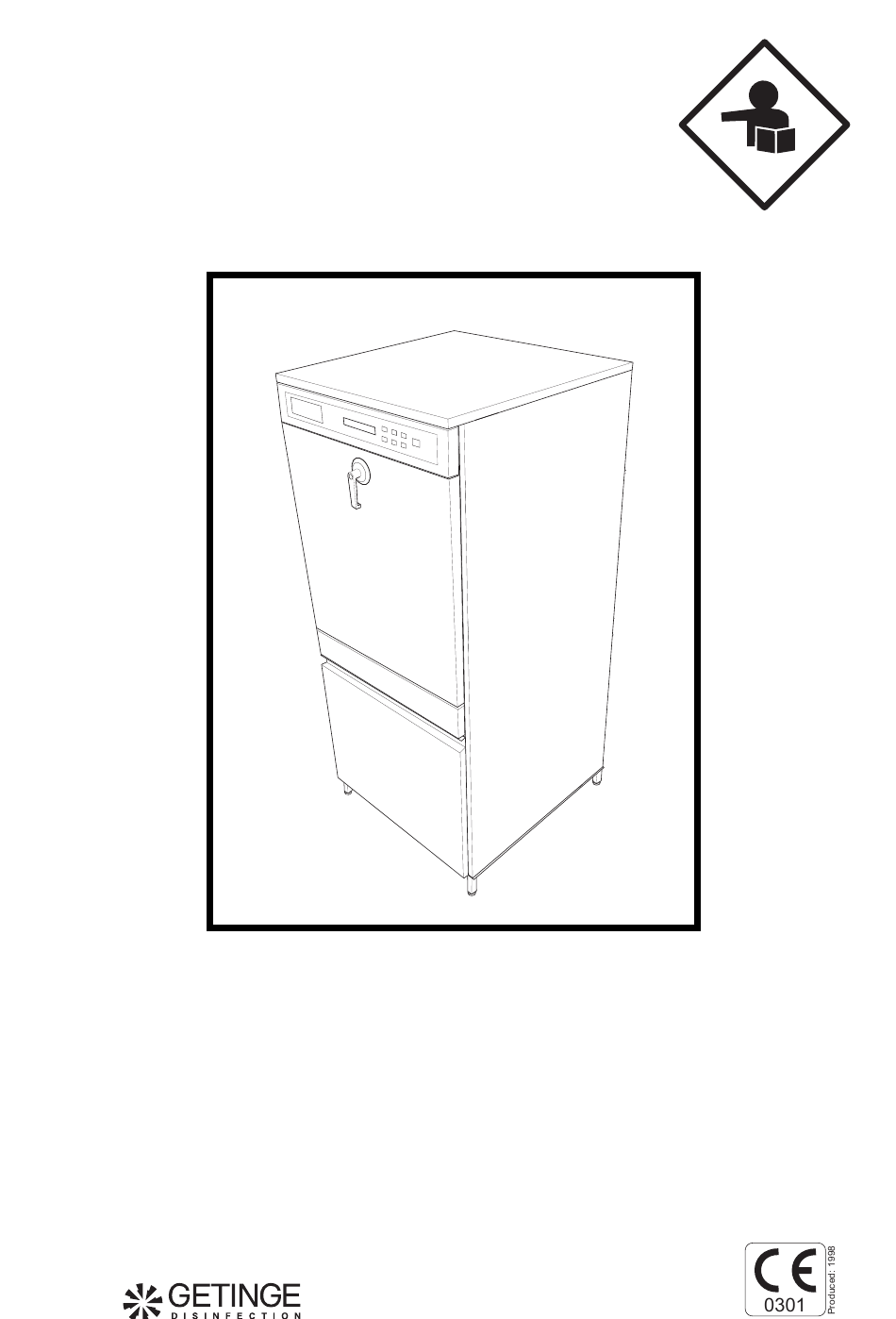

- Page 1 Operating instructions Decomat 4656 OPERATING INSTRUCTIONS Decomat 4656 Serial No. 701600 - 4997989-02 9803...
-
Page 2: Table Of Contents
Contents Safety rules _______________________________________________ 3 General safety rules _______________________________________ 3 Power cut-off device ______________________________________ 3 Caution symbols _________________________________________ 3 Decomat 4656 _____________________________________________ 4 Programming device ______________________________________ 5 Door function ___________________________________________ 5 Dispenser system _________________________________________ 5 Drying _________________________________________________ 6 Operation _________________________________________________ 7... -
Page 3: Safety Rules
Operating instructions Decomat 4656 Safety rules This machine is designed with a number of integrated safety devices. To avoid personal injury it is essential that the safety devices are not bypassed or in any other way put out of action. -
Page 4: Decomat 4656

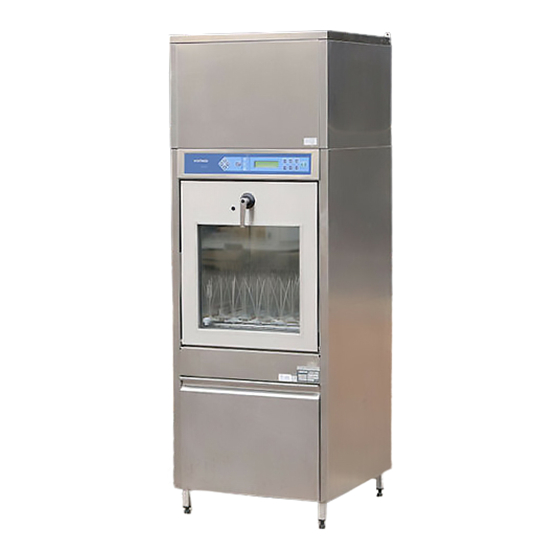

Decomat 4656 Operating instructions Decomat 4656 The Decomat 4656 is a fully automatic washer disinfector for the cleaning and disinfecting of contaminated dishware in hospitals, laboratories and the pharmaceutical industry. The machine is provided with three spray arms and can be equipped with a variety of accessories for different cleaning requirements. -
Page 5: Programming Device
Programming may only be carried out by authorized personnel. Door function Decomat 4656 can be provided with one or two doors. Doors are fitted with an electrical interlocking system to prevent opening during the program sequence. Soiled... -
Page 6: Dispenser System
Decomat 4656 Operating instructions Dispenser system Dispenser tube Dispenser pumps connections to washing chamber Detergent/rinse-aid bottles V160 In its standard version the machine has two different dispenser systems. One system for alkaline detergent and one system for rinse-aid or acidic detergent. -
Page 7: Operation
Operating instructions Decomat 4656 Operation Yellow: Process in progress Before starting: Selected program During process: Program phase (eg, Green: Process completed ”Rinsing”) Program number Red: Not disinfected Rinsing 047°C 00:30 V200 Programming buttons (see Actual temperature Remaining Program selection ”Service instructions”) -
Page 8: Red Lamp Lights
Decomat 4656 Operating instructions Error indication Red lamp: Not disinfected Error message or error code Fill detergent 1 V200 Red lamp lights If the red lamp lights at K, this is an indication that disinfection is aborted because the temperature is too low. Contact maintenance personnel. -
Page 9: Error Codes (F-Codes)
Operating instructions Decomat 4656 Error codes (F-codes) Error code: 05 The error codes indicate a serious malfunction in the washing sequence. Such errors must be attended to by authorized personnel. The following error codes can appear: Code Fault Comments Filling with water too slow Water level sensor not activated within 10 minutes from commencement of filling. -
Page 10: Maintenance
Decomat 4656 Operating instructions Maintenance Centre nut V317 Strainer V163 Detergent/rinse-aid bottle Daily • Check that no objects have fallen down at the bottom of the washing chamber. • Check that the spray arms can rotate freely. Check that holes in the spray arms are not blocked. -
Page 11: If Necessary
Operating instructions Decomat 4656 If necessary V319 The washing chamber The washing chamber should be kept free of limescale deposits. Remove remaining deposits by spraying on a normal acid-based detergent. Then run a program to cleanse the washing chamber (if the correct dosage of descaling compound is used, this should not normally be necessary). -
Page 12: Standard Programs
Decomat 4656 Operating instructions Standard programs The following pages show the programs that are included in the machine on delivery. The programs will vary depending on the initial range of use intended and the equipment fitted. Machine for hospitals, without drying function... -
Page 13: Machine For Hospitals, With Drying Function
Operating instructions Decomat 4656 Machine for hospitals, with drying function 1 OP-BGA (A+B) 2 AN-BGA (A+B) °C °C Dos 2 Dos 2 Dos 1 Dos 1 Vv Vv V354 V353 4 OP-BGA (A+B)-T 3 OP-BGA (A) °C °C Dos 2... -
Page 14: Machine For Laboratories, Without Drying Function
Decomat 4656 Operating instructions Machine for laboratories, without drying function 1 SHORT-LAB 2 LONG-LAB °C °C Dos 2 Dos 2 Dos 1 Dos 1 Kv Dv Kv Vv Dv V211 V212 PIPETTES 3 TEST TUBES °C °C Dos 2 Dos 2... -
Page 15: Machine For Laboratories, With Drying Function
Operating instructions Decomat 4656 Machine for laboratories, with drying function 2 LONG LAB-T 1 SHORT LAB-T °C Dos 2 Dos 1 Kv Vv Dv Drying V216 V215 PIPETTES 3 TEST TUBES-T °C °C Dos 2 Dos 2 Dos 2 Dos 2... - Page 16 This product is manufactured by: GETINGE DISINFECTION AB, Ljungadalsgatan 11, Box 1505, 351 15 Växjö, Sweden...
