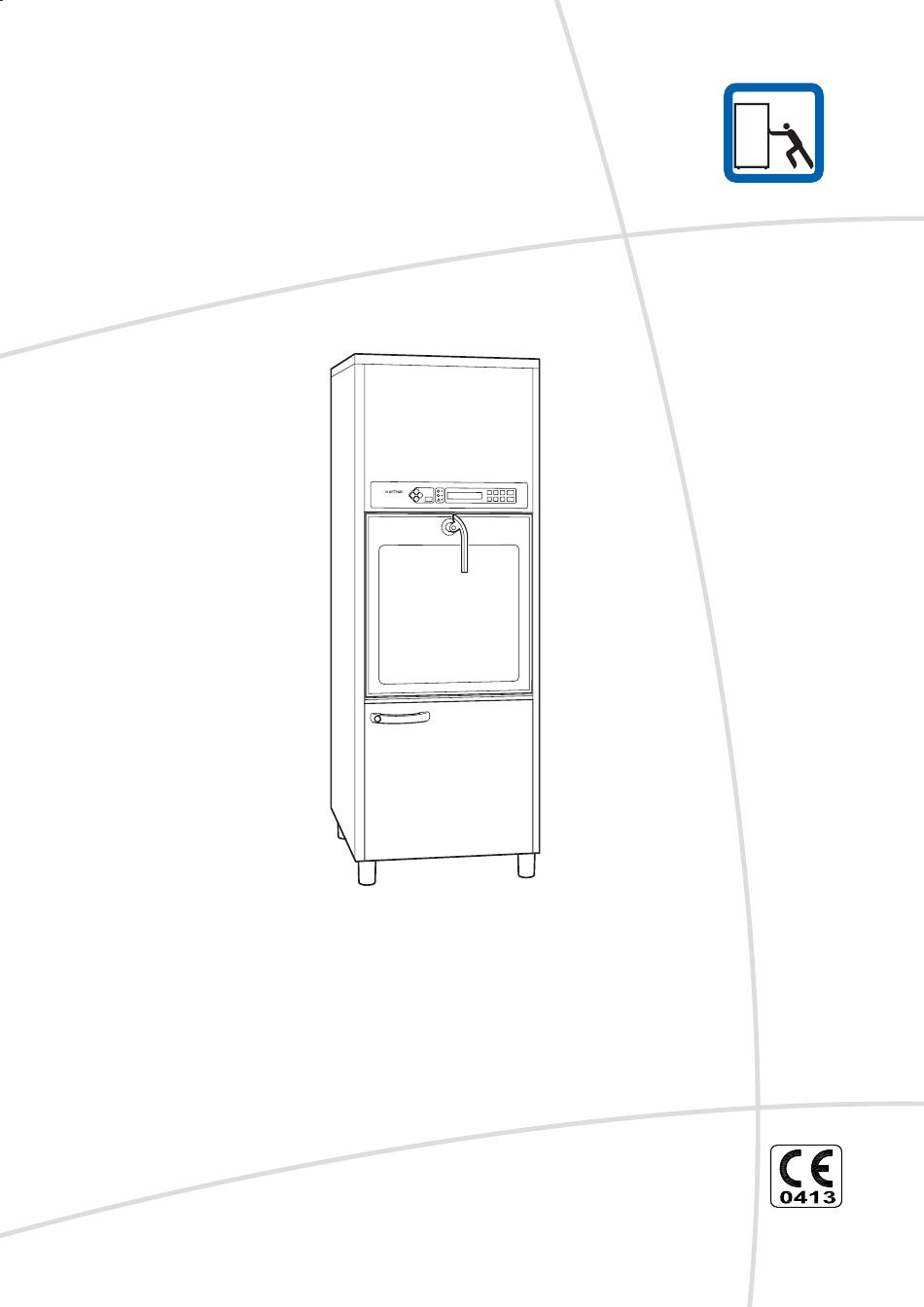

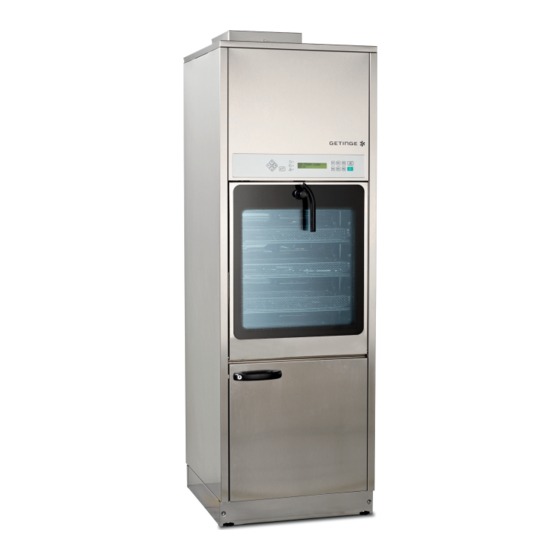

- Page 1 INSTALLATION INSTRUCTIONS Washer disinfector 46-2,46-4,46-5 Mfg. no.. SEV0632001- 5018606-00 Rev.C...
-
Page 2: Table Of Contents
Contents Contents Safety regulations _________________________________________________ 3 The machine must be assembled and installed by ___________________ 3 When the work is complete, check that _____________________________ 3 Product liability __________________________________________________ 3 Isolator switch ___________________________________________________ 3 Attention symbols _______________________________________________ 3 Installation ________________________________________________________ 4 Wall-mounted model _____________________________________________ 5 Free-standing model _____________________________________________ 6 Connecting electric power ________________________________________ 7... -
Page 3: Safety Regulations
• all hoses, pipes and connections are intact and free from defects • all the functions of the machine are working properly. Adjust if necessary. Product liability Any modification or incorrect use of the equipment without the approval of Getinge Disinfection AB invalidates Getinge Disinfection AB’s product liability. Isolating device The machine should be fitted with a separate isolating device in the electric power supply. -
Page 4: Installation
Installation Installation • The floor where the machine is to stand must be flat and level within ±5 mm. • Pull the machine (on a transport pallet) to the location where it will be installed. • Lift the machine off the pallet. •... -
Page 5: Wall-Mounted Model
Installation Wall-mounted model • If the machine has double doors and is to be mounted in a wall, the distance between machine and wall must be 15 mm. • If more than one machine is to be installed next to each other they must be adjusted to the same height on installation. -
Page 6: Free-Standing Model
Installation Free-standing model • Secure the tipover protection to the machine with the screws, then secure the backplate. • Fix the tipover protection to the wall with screws. Tipover protection V1640 Figure 4. Tipover protection • Check that the door and the two side plates are parallel. If not: •... -
Page 7: Connecting Electric Power
Installation Connecting electric power Installation may only be done by authorized personnel. Connect electric power to the machine as follows: • Install the machine in accordance with installation category CAT II. • Connect the power supply to the electrical connections of the machine; see the diagram with alternative connection arrangements. -
Page 8: Connecting Water, Steam, Waste And Dryer
7. Condensate connection, 200 mm above floor. 8. Dryer, exhaust air, at roof, 46-4, 46-5 9. Dryer, exhaust air, at roof, 46-2 10. Distilled/de-ionized water without pressure, 200 mm above the floor. * A flexible hose can be connected from... - Page 9 Installation Leave this air hole open avlopp_46 Figure 9. Connecting waste and draft traps • Connect the disinfector to a waste outlet with a capacity of at least 50 litres/min. The trap can be connected towards the rear or downwards, as shown in Figure 8.
-
Page 10: Function Check
Installation Function check • Check that the machine is connected to the correct voltage and the waste, water, steam and condensate connections are correctly connected. Open the valves for water and steam. • Fill the detergent and rinse aid containers and place alarm sensors in the containers. - Page 11 Installation • On a machine with manual double doors, check the door locking function when the program is complete as follows: - Check that the soiled-side door side cannot be opened. - Open and close the clean side door. - Open the soiled-side door. - Check that the clean side door cannot be opened.
-
Page 12: Technical Data
Technical data Technical data Dimensions Outside dimensions Weight Total Loading per machine foot incl. water and load Machine 46-2 without dryer 150 kg 50 kg Machine 46-2 with dryer 150 kg 50 kg Machine 46-4 without dryer 150 kg 55 kg... - Page 13 Technical data Connections Water consumption about 15-19 liters/phase Cold water Water quality Driinking water with max 5 °dH Connection 15 (1/2") mm Pressure 100-800 kPa Flow rate, min 20 l/min Hot water Water quality Preheated drinking water with max 5 °dH Temperature 45-60 °C (113 - 140 °F) Connection...
- Page 14 Other points Max outside temperature 50 °C (122 °F) Sound level Table 1 Calculated sound power level Lw for the test object, db ref 1 pW. Octave band frequency (Hz) 1000 2000 4000 8000 LwAFmax Correction terms (Kok) The calculated sound power level implies different sound levels LpA in different types of space. With a larger room volume, the sound level decreases slightly and with a smaller room level it increases slightly.
-
Page 15: Alternative Connection Arrangements
Alternative connection arrangements Alternative connection arrangements 46-5 Electric heater 46-4 Electric heater 46-2 Electric heater 46-5 Steam heater with dryer 46-4 Steam heater with dryer 46-5 Steam heater without dryer 46-4 Steam heater without dryer 5018606-00 Rev.C Edition 0704 Installation instructions... - Page 16 This product is manufactured by: GETINGE DISINFECTION AB, Ljungadalsgatan 11, Box 1505, 351 15 Växjö, Sweden...
