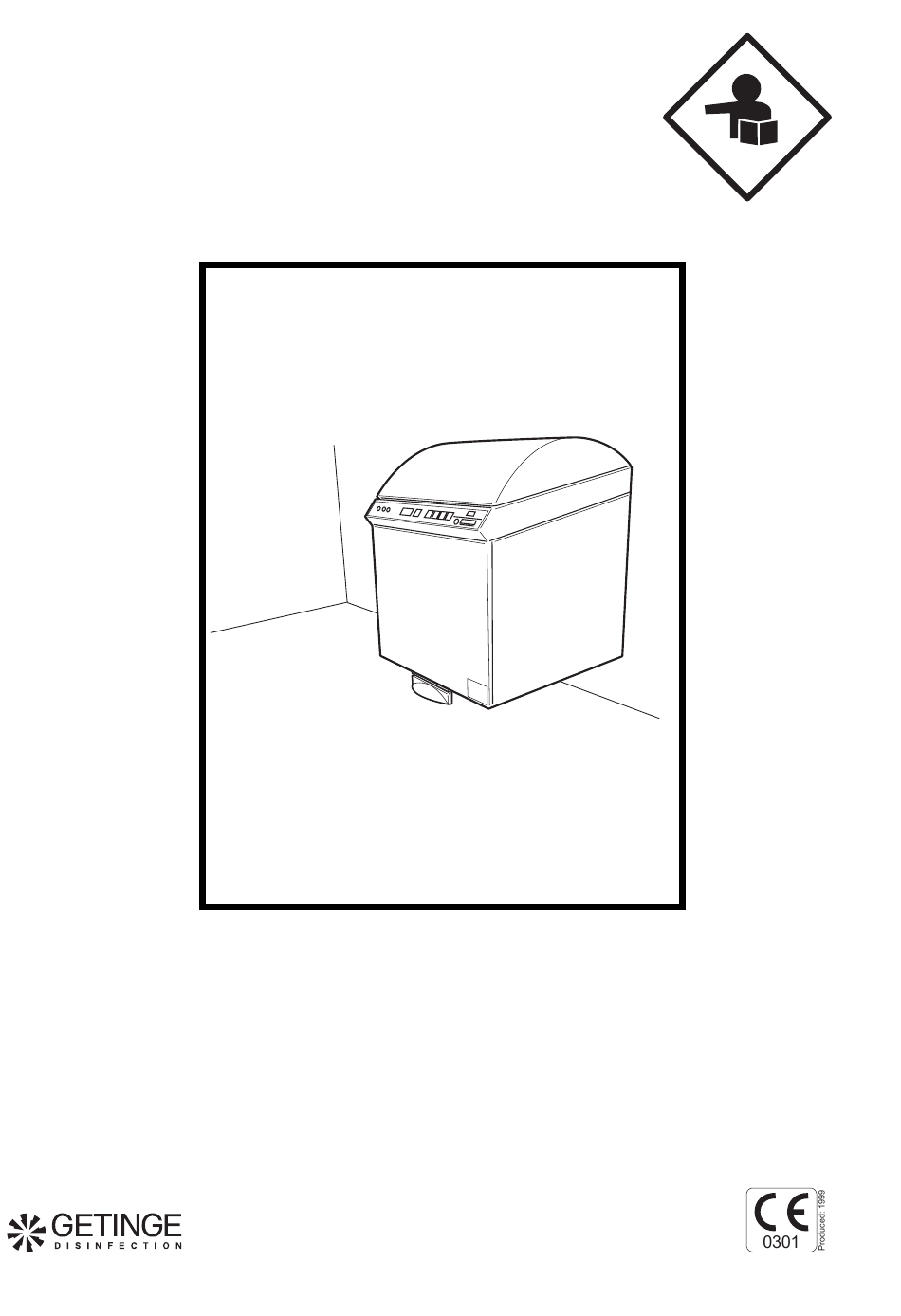

- Page 1 OPERATING INSTRUCTION Wash disinfector S-606 Serial no. 970001- 5000376-00...
-
Page 2: Foreword
Foreword These Operating Instructions are standard for all models referred to below: Wall-mounted Free-standing with tipping protection The models are supplied with different levels of equipment: Rotator Process or spray dispensing De-scaler dispensing Rinse-aid dispensing Inserts Central steam supply Models are also available for different voltages. -
Page 3: Table Of Contents
Operating instructions Contents Foreword _______________________________________________ 2 Safety regulations ________________________________________ 4 General safety rules ______________________________________ 4 Isolating device _________________________________________ 4 Description ____________________________________________ 4 Warning symbols ________________________________________ 4 Constituent parts _________________________________________ 5 Control panel ___________________________________________ 6 Using the wash disinfector __________________________________ 7 Using the normal programme _______________________________ 7 Using the economy programme _____________________________ 8 Using the intensive programme ______________________________ 8... -
Page 4: Safety Regulations
Operating instructions Safety regulations The design of this machine incorporates a number of built-in safety devices. To avoid personal injury, it is very important not to render these safety devices ineffective by by-passing them. General safety rules • The machine shall be connected in accordance with the installation instructions. -
Page 5: Constituent Parts
Operating instructions Constituent parts Control panel Washing chamber Door for machine cabinet V663 Foot pedal Detergent reservoir with level sensor 5000376-00 Version 990426... -
Page 6: Control Panel
Operating instructions Control panel Yellow: Process running Green: Process completed Peripheral washing Cleaning agent Display window &=q S-606dekal Red: Disinfection Normal programme not achieved, or Economy programme Intensive programme other fault code F Button/ Function lamp When the yellow lamp lights: The machine is busy running a programme. The temperature and cleaning phase appear in the display window. -
Page 7: Using The Wash Disinfector
Operating instructions Using the wash disinfector Using the normal programme 1. Place items to be cleaned in the holder. For details of how to position items, see the separate instructions. 2. Press the u button for the normal programme. If the normal programme is set on the foot pedal, depress the foot pedal instead (the most frequently used programme is allocated to the foot pedal). -
Page 8: Using The Economy Programme
Operating instructions Using the economy programme 1. Place items to be cleaned in the holder. For details of how to position items, see the separate instructions. 2. Press the t button for the economy programme. If the economy programme is set on the foot pedal, depress the foot pedal instead (the most frequently used programme is allocated to the foot pedal). -
Page 9: Maintenance
Operating instructions Maintenance As required Washing chamber The washing chamber shall be kept free from lime scale deposits. Remove any remaining deposits by spraying on an ordinary, acid-based cleaning agent. There is no need to rinse this off - rinsing will take place automatically the next time the cleaning programmes are run. -
Page 10: Faults In The Wash Disinfector
Operating instructions Faults in the wash disinfector Warning Fault message Note Low de-scaling agent level Low rinse-aid level Low cleaning agent level Low spray agent level Inspection needed Warning of high item temperature External communication Warnings requiring action before the machine is re-started Fault message Note Measure... -
Page 11: Fault Message Requiring Attendance By A Service Technician
Operating instructions Fault message requiring attendance by a service technician For certain process faults, information about the cause of the fault appears in the display window on the front panel. Certain fault messages must be acknowledged once the fault has been remedied (no acknowledgement is required for a message indicating the need to fill with an agent);... -
Page 12: Red Lamp Lights
Operating instructions Red lamp lights If the red lamp for K lights, disinfection has been interrupted due to an excessively low temperature or some other fault. A fault message describing the cause of the fault in clear text appears in the display window. Acknowledging a fault message Certain fault messages must be acknowledged before... -
Page 13: Wash Disinfector Function
Operating instructions Wash disinfector °C function Normal programme The normal programme is used for cleaning items containing rubbish and paper. Press the u button for basins. The cleaning programme now starts. The following cycles are performed: 01. Flushing During flushing, the item is rinsed with a high- pressure jet of clean water. -
Page 14: Economy Programme
Operating instructions Economy programme C° If the items to be cleaned only contain liquids, or if they are only lightly soiled, the economy programme can be used. The water consumption is a good deal less in this programme, but disinfection is the same as for the normal programme. -
Page 15: Intensive Programme
Operating instructions Intensive programme °C If the items to be cleaned are heavily soiled, the intensive programme shall be used. Press the r button for the intensive programme. The cleaning programme now starts. The following cycles are performed: 01. Flushing During flushing, the item is rinsed with a high- pressure jet of clean water. - Page 16 Den här produkten är tillverkad av: GETINGE DISINFECTION AB, Ljungadalsgatan 11, Box 1505, 351 15 Växjö, Sweden...
