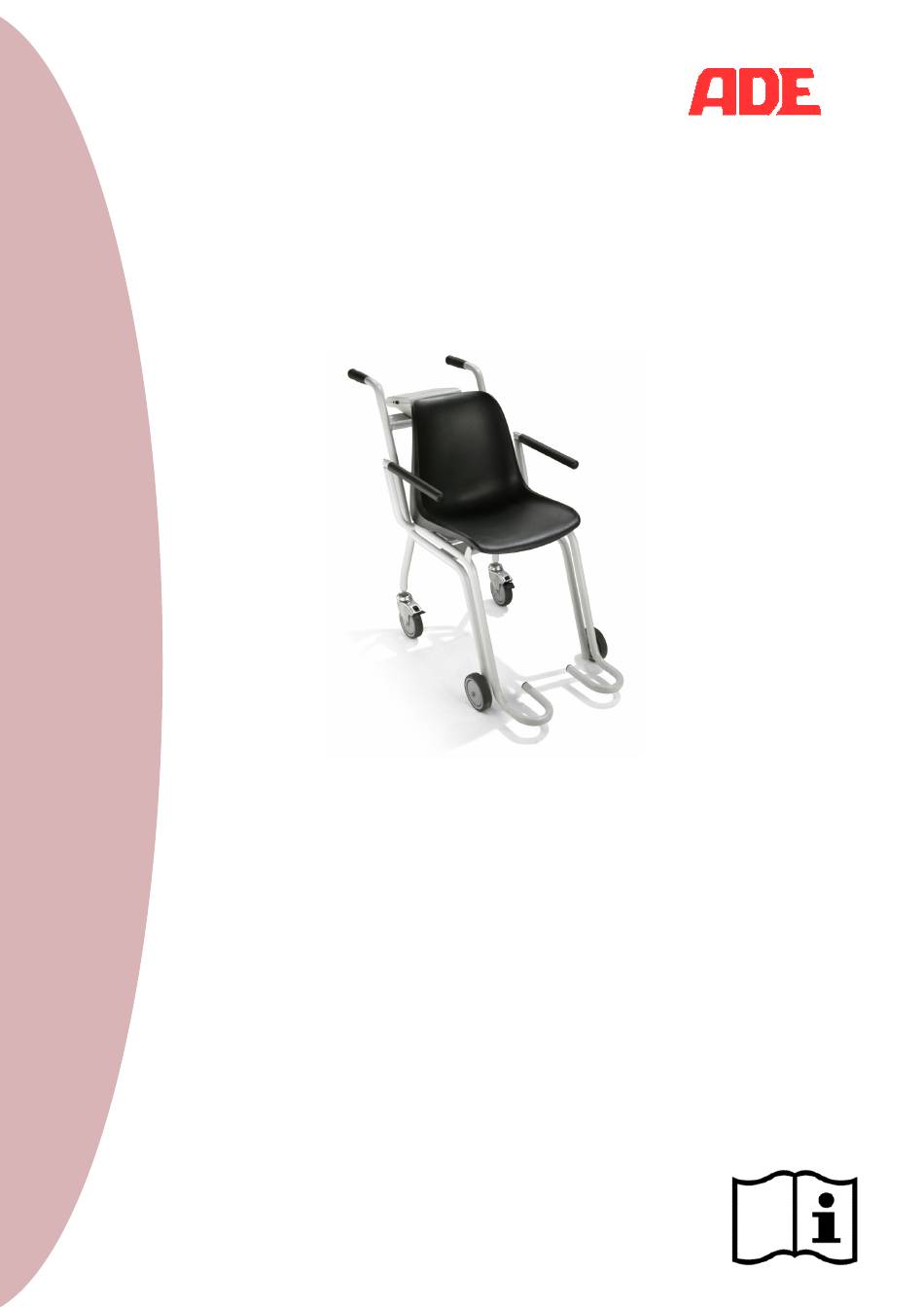

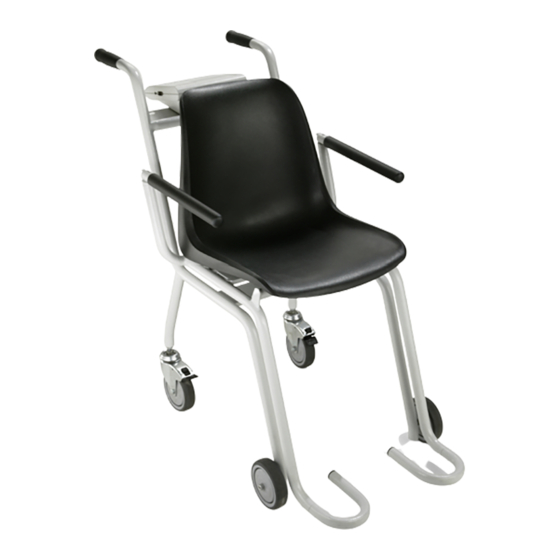

  • Page 1 Operating Manual Class III Approved Scales Electronic Chair Scales M400020 Series M400020-210322-Rev007-UM-e...
  • Page 2: Table Of Contents

    Contents Introduction .............................. 3 Assembly and set up ..........................4 Power supply ........................4 Replacing the rechargeable batteries ................4 Tips for handling the batteries .................... 4 Quality features ........................5 Type approval ........................5 Using the scales for legal metrological applications ............5 Display ..............................
  • Page 3: Introduction

    ADE instruction manuals have been prepared to provide the user with all the necessary knowledge about the safe use of ADE scales and their related accessory equipment.
  • Page 4: Assembly And Set Up

    Assembly and set up The ADE chair scale is already been delivered in a fully assembled condition. Please insure that your scale is being placed vibration free at a dry place. Alignment of the scale 1) Place the chair scale on a plain, dry and level surface before the weighing of patients.
  • Page 5: Quality Features

    The scales must be recalibrated according to legal conditions and regulations. Display Description The ADE-display (MAK) is a digital precision display unit for medical use in hospitals by doctors and special- ists of all medical fields. Fig. 1-1 Indicator and operating controls...
  • Page 6: Safety

    Safety Safety instructions The ADE-display unit (MAK) corresponds to the latest state of the art technology and complies with standard regulations and directives. Kindly follow the safety instructions in this operating manual, the country-specific installation standards as well as the applicable safety conditions and accident prevention regulations in all aspects.
  • Page 7: Connecting Additional Devices

    The "weighing mode" is of course the standard mode of your scale. After initial configuration and sealing (by attaching a calibration sticker to the back of the unit), the ADE-scale can only be operated in this mode.  Setting mode Date, time and consecutive numbers for print commands are being set in this mode.
  • Page 8: Settings

     Test mode There are different diagnostic functions for the ADE-MAK in test mode. This is reserved for service personnel only. Manipulations to test and configuration modes can revoke the calibration status and will result in loss of warranty! Settings The following functions are available in setting mode: –...
  • Page 9: Weighing

    If no number is entered within five seconds, the unit will turn back to weighing mode. After entering the number, the ADE-MAK accesses the preset tare value, shows it for five seconds on the dis- play and then changes to net mode. The accessed tare value is accepted at the same time. Enter the tare button again to leave this mode.
  • Page 10: Determining The Body Mass Index (Bmi)

    To determine this value you need the height of the person. Best way to get the height is of course to use an ADE height measuring rod; model MZ10023. Start the scale and weigh the person. Then press the BMI key (11) to start BMI mode. The last value entered appears on the display.
  • Page 11: Error Messages

    Any warranty or damage compensation claims presuppose the use of original ADE accessories and replace- ment parts. The warranty does not cover units that have been opened by unauthorised persons.
  • Page 12: Recalibration

    Recalibration Have the calibration carried out by an authorised company or authorised person according to national legisla- tive regulations. The CE symbol shows the notified body (0122) and the year of initial calibration. Recalibration must be carried out if the calibration mark has been damaged after calibrated scales have been successfully repaired or after expiry of a period for recalibration as stipulated by national, legal regulations.
  • Page 13: Conformity Declaration

     RoHS Directive 2011/65/EC in the currently valid versions. This declaration loses its validity if modifications are made to the scale without our approval. Hamburg, March 2021 ADE Germany GmbH Neuer Hoeltigbaum 15 22143 Hamburg / Germany Manufacturer: ADE Germany GmbH...
  • Page 14 M400020-210322-Rev007-UM-e...
