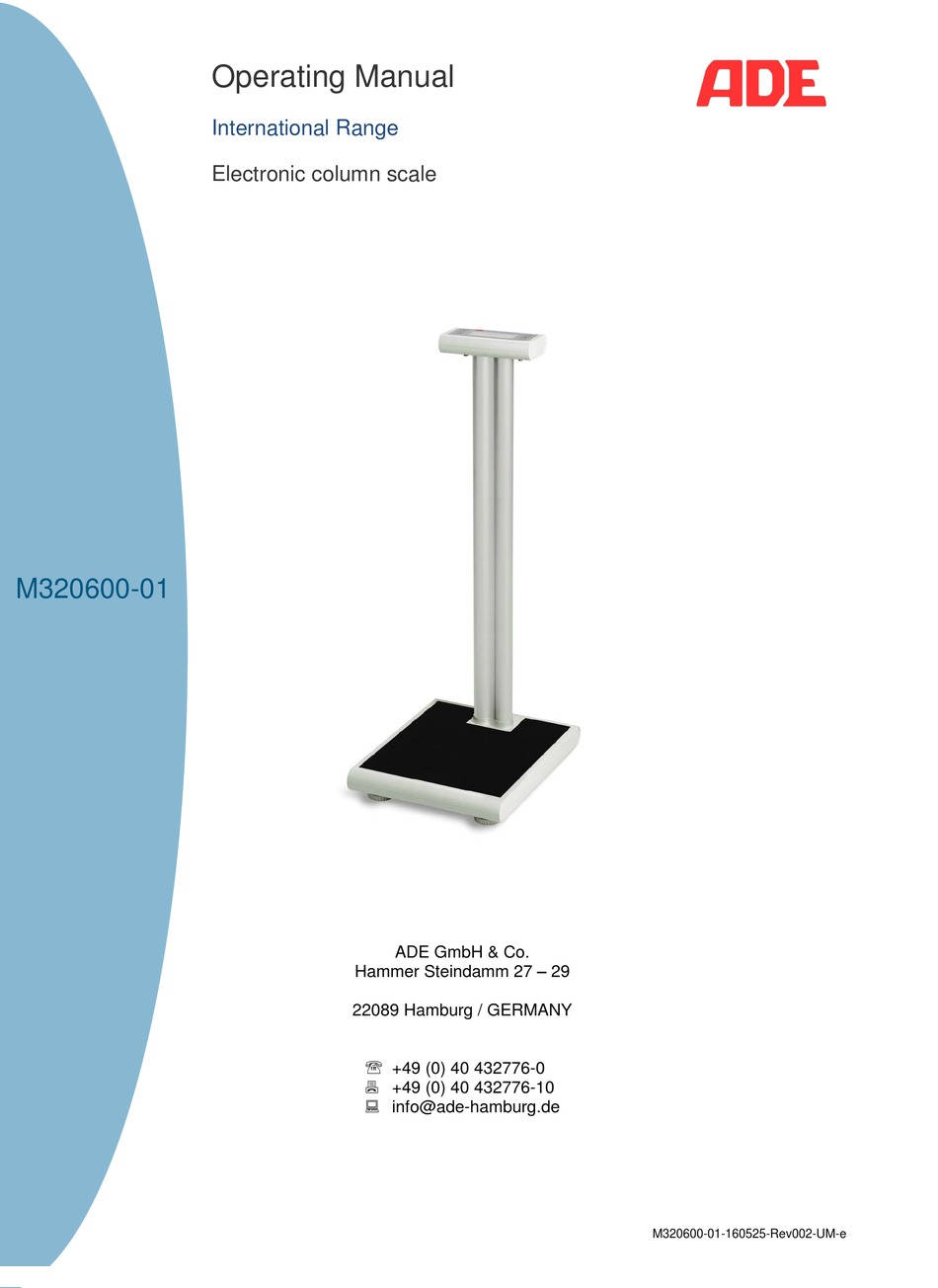

- Page 1 Operating Manual International Range Electronic column scale M320600-01 Series M500660 M321600 ADE GmbH & Co. Hammer Steindamm 27 – 29 22089 Hamburg / GERMANY +49 (0) 40 432776-0 +49 (0) 40 432776-10 info@ade-hamburg.de M320600-01-160525-Rev002-UM-e...
-
Page 2: Table Of Contents
Evaluation of the Body Mass Index ..................8 Cleaning and Maintenance ........................9 Cleaning ..........................9 Waste disposal ........................9 Storage and transport ......................9 Warranty ..........................10 CE-marking and Declaration of Conformity ..................10 Declaration of CE Conformity ................... 10 Technical details ..........................11 M320600-01-160525-Rev002-UM-e... -
Page 3: Introduction
Your ADE electronic column scale is a quality, sturdy and durable product manufactured in accordance with national regulations in Germany. ADE instruction manuals have prepared to provide the user with all the necessary knowledge about the safe use of ADE scales and their related accessories. -
Page 4: Contents Of Carton
Place the scale on a flat and firm surface. To level the scale, use the leveling feet. The spirit level helps to indicate a level position of the scale. The scale is now ready for use. Assembly Mounting screw ‘A’ Mounting screw ‘B’ M320600-01-160525-Rev002-UM-e... -
Page 5: Power Supply
BMI function is activated. “Hold” Displayed when the auto-hold function is activated. “Ib” Displayed when the weight is displayed in pounds. “kg” Displayed when the weight is displayed in kilograms. “Net” Net is displayed, when the tare function is activated. M320600-01-160525-Rev002-UM-e... -
Page 6: Key Pad
Press in order to switch the units between kg and lb Use this key in BMI mode to switch between the numbers upwards. Weighing platform from underneath Hole for mounting screw ‘A’ Battery compartment Power socket Levelling feet M320600-01-160525-Rev002-UM-e... -
Page 7: Operation
Press the HOLD button to activate or deactivate the hold function. “HOLD” is being displayed on the display. The weight remains frozen in the display for 90 seconds after unloading the scale. To deactivate the Hold function press again the HOLD key. M320600-01-160525-Rev002-UM-e... -
Page 8: Mother And Child Weighing Function
The patient is slightly overweighed to pre-obese. A reduction of weight is indicated or, is necessary if the state of health is already affected (e.g. diabetes, high end blood pressure, heart diseases). BMI over 30 Reduction of weight is imperative. To visit a doctor is highly recommended. M320600-01-160525-Rev002-UM-e... -
Page 9: Cleaning And Maintenance
Please keep all original parts and pieces for an eventual sending back of the scale in order to avoid any possi- ble damage during transport, which automatically leads to loss of warranty. Disconnect all cables before transport and avoid unnecessary damages and switch the scale off at the back side of the scale. M320600-01-160525-Rev002-UM-e... -
Page 10: Warranty
Warranty does not apply to normal appearance of usage or sign of wear or any damages caused by accidents or misuse. Eventual warranty- or liability claims are subject to using the original ADE accessories or spare parts. Products which have been opened by unauthorized persons are automatically out of warranty. -
Page 11: Technical Details
4 x AA 1,5 V alkaline batteries Environmental –10 to +40°C Operating Temperature –20 to +70°C Storage Temperature Supplier: ADE GmbH & Co. Hammer Steindamm 27 – 29 D – 22089 Hamburg +49 (0) 40 432776-0 +49 (0) 40 432776-10 info@ade-hamburg.de M320600-01-160525-Rev002-UM-e... - Page 12 M320600-01-160525-Rev002-UM-e...
- Page 13 M320600-01-160525-Rev002-UM-e...
