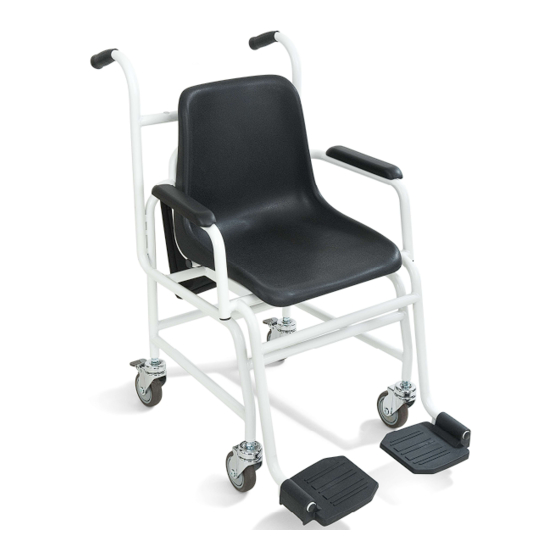

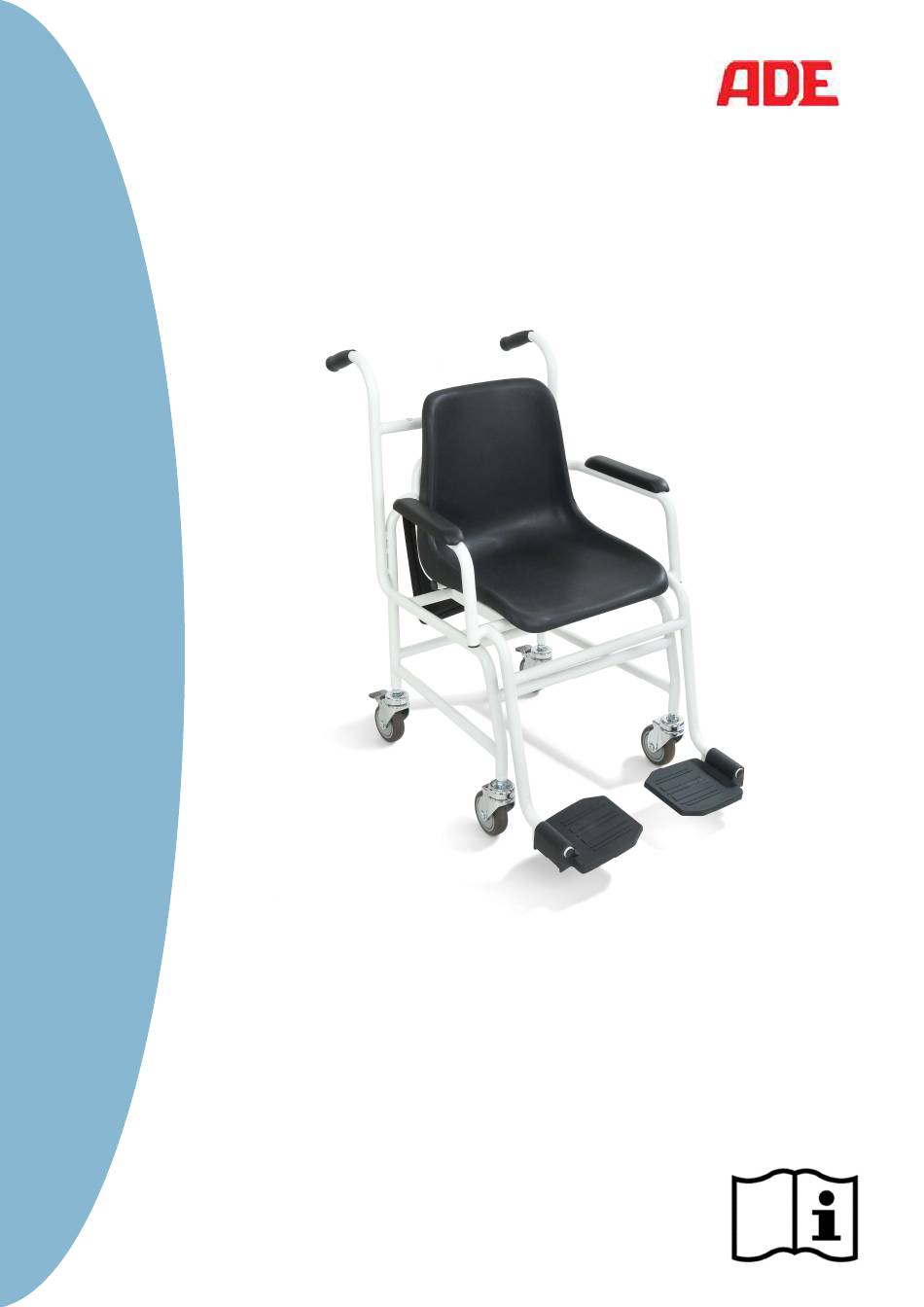

- Page 1 Operating Manual International Range Electronic Chair Scales M403660 M403660-211129-Rev006-UM-e...
-
Page 2: Table Of Contents
Error Messages ........................8 Cleaning and Maintenance ........................9 Cleaning ..........................9 Storage and Transport ......................9 Warranty – Liability ......................9 Technical details ............................ 10 CE-marking and Declaration of Conformity ................... 11 Declaration of CE Conformity ................... 11 M403660-211129-Rev006-UM-e... -
Page 3: Introduction
Operating manual Safety The ADE-display unit corresponds to the latest state of the art technology and complies with standard regulations and directives. Kindly follow the safety instructions in this operating manual, the country- specific installation standards as well as the applicable safety conditions and accident prevention regulations in all aspects. -
Page 4: Assembly And Set Up
Assembly and set up The ADE chair scale is already been delivered in a fully assembled condition. Please insure that your scale is being placed free of any vibration and at a dry place. Alignment of the scale 1) Place the chair scale on a plain, dry and level surface before weighing. -
Page 5: Display
In case the LCD is not displayed is the scale not in the standstill mode. “Hold” Displayed when the hold function is activated. “Ib” Displayed when the weighing unit is displayed in pounds. “kg” Displayed when the weight is displayed in kilograms. M403660-211129-Rev006-UM-e... -
Page 6: Key Pad
Armrest and footrest are not to be used as helping device for getting up from the chair! They are to be understood as supporting device for arms and legs only in order to allow an accurate weighing procedure! M403660-211129-Rev006-UM-e... -
Page 7: How To Change The Unit
To input a pre set tare value press down the tare button more than 3 seconds. NET will appear at the screen. Follow the same steps as before and place a load on the platform. The last stored tare value will appear at the display and ignored by the scale. M403660-211129-Rev006-UM-e... -
Page 8: Hold Function
Reduction of weight is imperative. To visit a doctor is highly recommended. Connecting additional devices Connection of printer, PC or remote-display will be done with the RS-232 interface. For connection of additional devices kindly ask your local representative or authorized ADE dealer for further instructions. M403660-211129-Rev006-UM-e... -
Page 9: Print Out A Record
Remove load from the scale. display or will Load on scale is not stable. Wait for load to become stable. not zero when turned on. Load cell damage. Service required. No Battery symbol or Batteries are discharged. Charge batteries. display of Lo.bAt M403660-211129-Rev006-UM-e... -
Page 10: Cleaning And Maintenance
Disconnect all cables before transport and avoid unnecessary damages. Warranty – Liability ADE will repair or replace this product within a period of 2 years from date of delivery applying to defects occurred due to poor material or workmanship (presentation of invoice is necessary). All moveable parts –... -
Page 11: Technical Details
Working temperature: -10°C to 40°C Storage temperature: -20°C to 70°C Humidity: 10 to 90% RH without condensation Voltage: 5Vdc Max. Current: 60mA (can power 4-350 ohm bridge, take care the limitation when USB is power supply) Serial port: Full-duplex RS232 M403660-211129-Rev006-UM-e... -
Page 12: Ce-Marking And Declaration Of Conformity
CE-marking and Declaration of Conformity ADE products are manufactured as per the standards applicable of the actual European norms and directives to produce and offer world-wide products at the latest technical standard and with a long lifetime. Declaration of CE Conformity Declaration of conformity by the manufacturer These scales have been manufactured in accordance with the harmonised European standards. - Page 13 M403660-211129-Rev006-UM-e...
- Page 14 M403660-211129-Rev006-UM-e...
- Page 15 M403660-211129-Rev006-UM-e...
- Page 16 M403660-211129-Rev006-UM-e...
