Summary of Contents for ADE M403020

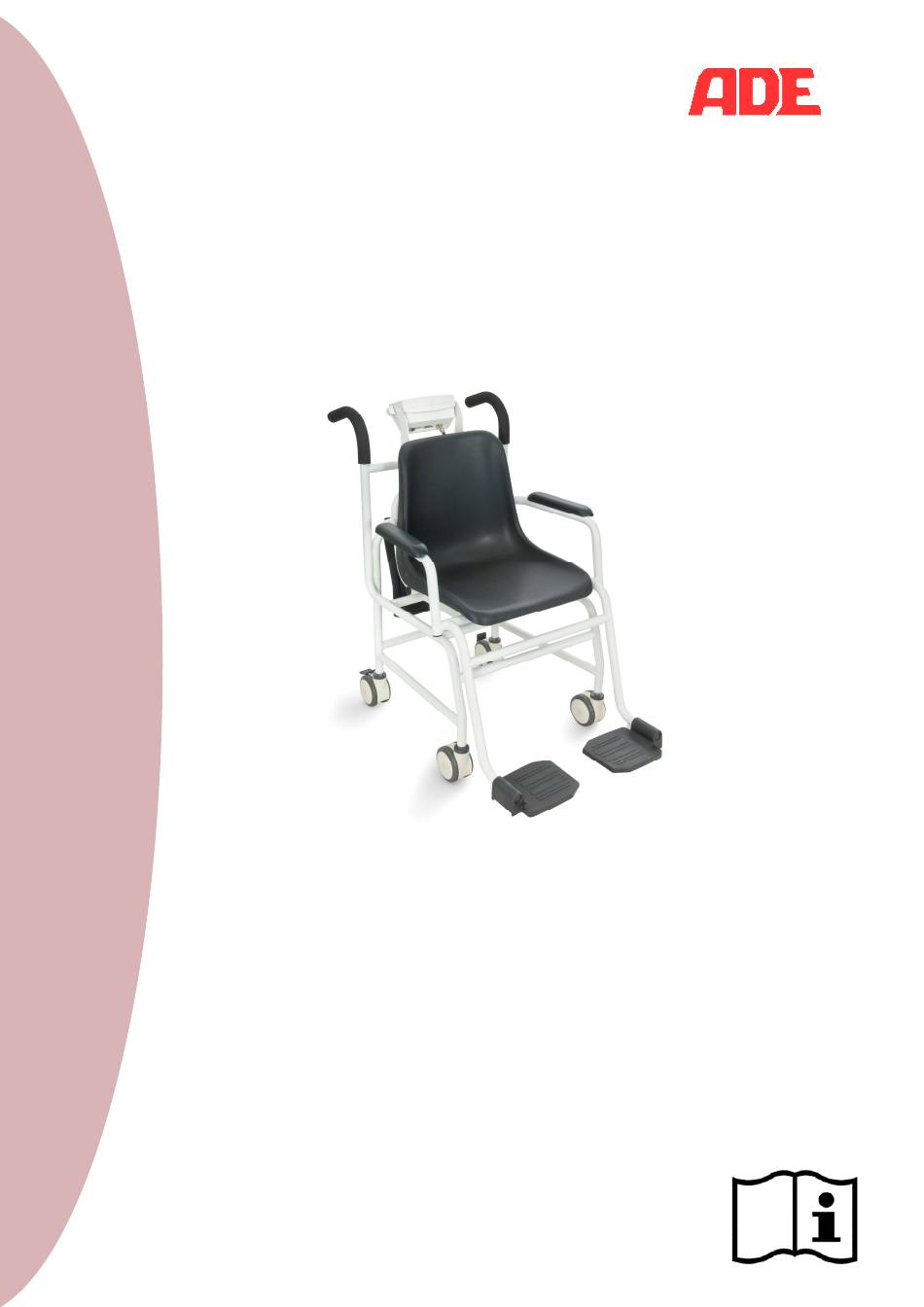

- Page 1 Operating Manual Class III Approved Scales Electronic Chair Scales M403020 M403020-210322-Rev006-UM-e...
-
Page 2: Table Of Contents
Print out a record ....................... 10 Care, servicing and recalibration ......................10 Cleaning ..........................10 Waste disposal ........................11 Storage and transport conditions ..................11 Warranty ..........................11 Recalibration ........................11 Technical specifications ......................... 12 Conformity declaration ........................... 13 M403020-210322-Rev006-UM-e... -
Page 3: Introduction
In order to achieve the best possible results kindly read and follow the operation manual in all respects. Assembly and set up The ADE chair scale is already been delivered in a fully assembled condition. Please insure that your scale is being placed vibration free at a dry place. -
Page 4: Replacing The Rechargeable Batteries
3) Close the battery compartment. Only use original rechargeable batteries and charger units from ADE. The warranty does not cover any damage caused by using other types of batteries or charger units. Tips for handling the batteries The life of a battery depends essentially on the load, frequency of use, temperatures, settings and the acces- sories used. -
Page 5: Display
Display Description The ADE-display (MAK) is a digital precision display unit for medical use in hospitals by doctors and special- ists of all medical fields. Fig. 1-1 Indicator and operating controls No. Name Description Display LCD display for weight, mode, settings and configuration information. -
Page 6: Safety
Safety Safety instructions The ADE-display unit (MAK) corresponds to the latest state of the art technology and complies with standard regulations and directives. Kindly follow the safety instructions in this operating manual, the country-specific installation standards as well as the applicable safety conditions and accident prevention regulations in all aspects. -
Page 7: Housing And Connections
The "weighing mode" is of course the standard mode of your scale. After initial configuration and sealing (by attaching a calibration sticker to the back of the unit), the ADE-scale can only be operated in this mode. Setting mode Date, time and consecutive numbers for print commands are being set in this mode. -
Page 8: Setting Date And Time
(5) is on). The weight of the previously weighed and saved items is ignored when the patients’ weight is displayed. Enter the tare button again to get back to the normal weighing mode and remove any load from the platform. M403020-210322-Rev006-UM-e... -
Page 9: Hold Function
If no number is entered within five seconds, the unit will turn back to weighing mode. After entering the number, the ADE-MAK accesses the preset tare value, shows it for five seconds on the dis- play and then changes to net mode. The accessed tare value is accepted at the same time. Enter the tare button again to leave this mode. -
Page 10: Evaluating Body Mass Index
Please contact your supplier or service EEPROM indicates an error partner. PM SUM Please contact your supplier or service Internal program indicates a check error partner. HOFSET Please remove the weight from the Switch on – above zero scales and restart. M403020-210322-Rev006-UM-e... -
Page 11: Waste Disposal
Any warranty or damage compensation claims presuppose the use of original ADE accessories and replace- ment parts. The warranty does not cover units that have been opened by unauthorised persons. -
Page 12: Technical Specifications
Operating Temperature –10 to +40°C (legal); Storage Temperature –25 to +70°C Humidity 0–95% relative humidity Altitude 2000 m (6500 ft) maximum Housing Dimensions 18.6 cm x 9.5 cm x 10 cm Weight 0.4 kg (without battery) Material ABS plastic, white M403020-210322-Rev006-UM-e... -
Page 13: Conformity Declaration
RoHS Directive 2011/65/EC in the currently valid versions. This declaration loses its validity if modifications are made to the scale without our approval. Hamburg, March 2021 ADE Germany GmbH Neuer Hoeltigbaum 15 22143 Hamburg / Germany Manufacturer: ADE Germany GmbH... - Page 14 M403020-210322-Rev006-UM-e...
- Page 15 M403020-210322-Rev006-UM-e...
- Page 16 Dealer: M403020-210322-Rev006-UM-e...
