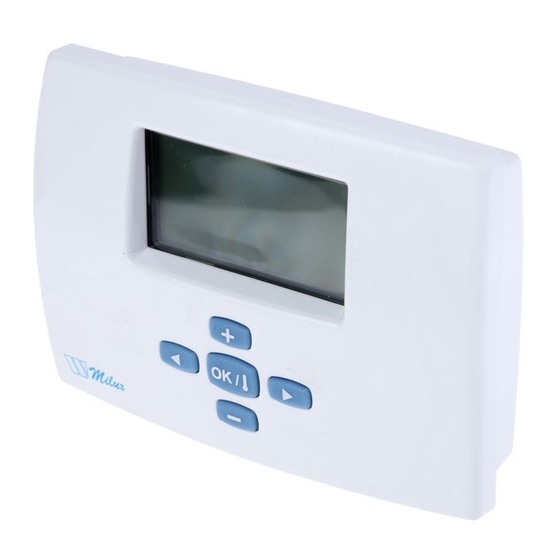

The MILUX Chrono-thermostat is a programmable digital thermostat able to control and regulate directly
your central heating (Electric, Gas, Oil) or cooling system.
It's weekly programmable function enables power savings according to your every day life.
Features
• 7 days program ( except for daily version)
• 9 Built-in programs
• 4 User programs
• Program graphic display
• Room temperature and Time display
• Comfort / Reduced / Anti-freeze temperatures
• Temporary temperature override
• Automatic or Manual operation
• Holiday function
• Select HOT or COLD operation
• Easy wiring (2 conductor wire)
• Keypad lock function (child safety)
• Battery powered to prevent loss of program
and time during power cuts
• Battery weakness monitoring
• Battery replacement without loss of program
• Reset function
Measured temperature precision 0.1°C (or 0.2°F)
Set temperature precision 0.5°C (or 0.5°F)
Set temperature range in comfort & reduced : 5°C – 35°C (or 41°F – 95°F)
in anti-freeze : 0,5°C – 10°C (or 33°F – 50°F)
Regulation characteristics - regulation speed: 7.5 cycle per hour (8 minutes cycle)
- regulation band: 2°K of proportional band (adjusted power)
Driving element 8A RELAY (with heater and cooling devices contacts)
Connection 3 points screw connector on the rear part of the box
Batteries 3x LR6 AA 1.5V batteries
Advertisement
Table of Contents
Related Manuals for Watts MILUX
Summary of Contents for Watts MILUX
- Page 1 The MILUX Chrono-thermostat is a programmable digital thermostat able to control and regulate directly your central heating (Electric, Gas, Oil) or cooling system. It’s weekly programmable function enables power savings according to your every day life. Features • 7 days program ( except for daily version) •...
-
Page 2: Installation And Wiring
Installation & Wiring 1 Place the MILUX thermostat (A) on a plain wall away from windows and doors and not to close to the heater. Put the connection wires (B) thru the back hole of the rear part. Use the screws (C) to mount the rear part on the wall. -
Page 3: Quick Start
Go to reduced mode and adjust reduced temperature required with keys (Default reduced temp. is 17°C) Finally go to automatic mode. Your MILUX Chrono-thermostat is now working and follows the program. Modes Description Manual COMFORT operating mode : Force comfort temperature operation indefinitely or for a few hours or days (see Holiday function). - Page 4 User programs are saved, time is kept running and battery consumption becomes very low. Any key will wake up the MILUX. The OK / key displays the actual room temperature. DANGER : IN THIS MODE YOUR INSTALLATION CAN FREEZE because the MILUX is stopped.
-
Page 5: Special Features
Special Features Battery Replacement To close the MILUX, Press on then left side Replace the three LR6 AA Place the front panel in front of button and 1.5V the rear part. Insert the three pull the front panel to batteries with new ones contacts in the connector holes.
