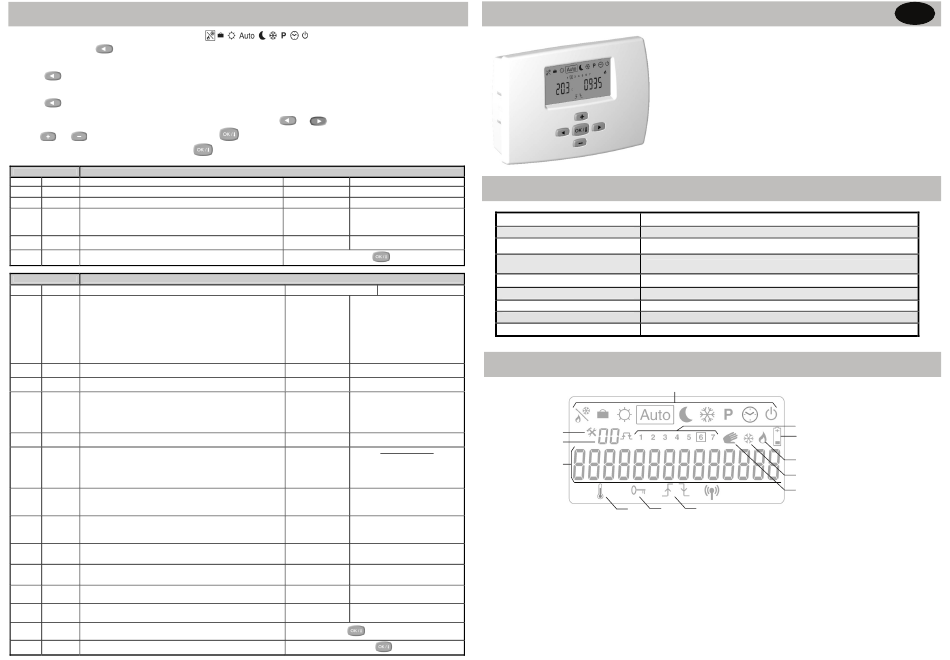

Watts Milux Star Installer's And User's Parameters

INSTALLER'S AND USER'S PARAMETERS
Your thermostat has 2 menus with configurable parameters.
To enter in the menu, with key, move the mode cursor to
The first menu is meant for the end user.
Press the key during 5 seconds.
The second menu is meant for the system installer.
Press the key during 10 seconds
Once you have chosen a menu, go to the parameter which you can change by using
Use the and keys to modify the value and confirm with
To leave the parameter menu, choose « End » and press
Parameters
number name Description of the parameter
°C °F
01 Select a type "°" on the display
.
02 12H 24H Select type of hour.
Calibration of the internal probe
(The calibration must be done after 12H working with the same setting
03 CAL Air
temperature. Check the room temperature with a thermometer and enter the
reel value)
Calibration of the external probe (if connected)
04 CAL Flor
(The calibration must be done same as above)
09 End To exit the user's menu.
Parameters
number name Description of the parameter
The thermostat Intelligent Temperature Control System will activate your
installation in advance to assure the desired temperature at the hour
programmed following your weekly program.
This automatic control system works in the following way:
When you start your thermostat for the first time, it will measure the time
11 ItCS
taken by your installation to reach the set temperature. The thermostat will
re-measure this time at each program change to compensate external
temperature change & influence. You can now program your thermostat
without the need to adjust the temperature in advance because your
thermostat does it automatically for you.
12 Out Type of output
Anti-lock-braking function of the pump. When the pump hasn't worked on a
13 PUMP
particular day, start it up for one minute each day
14 SEnSOR Selection of the sensor for regulation
15 rEGUL Selection of regulation type
16 t Cy Selection of the proportional band duration in minutes
17 t on Minimal starting time in minutes
18 t off Minimal resting time between 2 heating cycles in minutes
19 bP Value of the proportional band
20 CP Compensating value
FLorLi. Lower limit of the floor temperature. Only effective if the external probe is
21
Lo connected and selected.
FLorLi. Upper limit of the floor temperature. Only effective if the external probe is
22
Hi connected and selected.
reset ALL
23 All parameters are reloaded with default setting values.
29 End To exit the installer's menu
and .
.
.
User's Menu
Factory value Other possibility
°C
24H 12H (AM/PM)
Air sensor + 0°C From -5°C to +5°C
Floor sensor + 0°C From -5°C to +5°C
Press
Installer's Menu
Factory value
« Yes »
Function active Function not active
« nC»
Normally closed Normally Open
« Yes »
Function active Function not active
« Air »
or
Room sensor with
floor limitation Floor sensor only
If floor sensor
connected
« bp »
Proportional band Static differential of 0.5°C
Heating application :
Burner oil « 20 »
« 15 »
Burner gas « 10 »
Slow system adapted
Zone valve « 10 »
to each heating type
Heat pump « 20»
Ventilo convector « 10 »
Adjustable 0 to 5
In case of an installation with burner or
« 002 »
heat pump, it is recommended to adjust
value « 3 »
Adjustable 0 to 5
In case of an installation with burner or
« 003 »
heat pump, it is recommended to keep
value « 3 »
Adjustable 1°C to +4°C
« 2.0°C » A well insulated house « 1.5C »
A not insulated house « 4C »
Adjustable 1°C to 12.7°C
« 0.0°C » Increase the value according to the
current load
« 18°C » From 5°C to « FLorLi.Hi»
« 35°C » From « FLorLi.Lo »to 37°C
Press during a few seconds
Press
Digital chrono-thermostat "Milux Star"

TECHNICAL CHARACTERISTICS

°F
Measuring accuracy
Operating temperature
Ambient temperature range
Characteristics of different
regulations
Electrical Protection
Other possibility
Feeding and autonomy
Output
External probe in option
« no »
Program version
DISPLAY
« no »
« no »
« Flor »
2
« hyst »
3
4
1: Functioning mode
2: Installer's or user's menu.
3: Show the block number in program mode, or the program number in AUTO mode.
4: Display of temperature, task, hour or parameter title when "2" is indicated.
5: Ambient temperature is indicated.
6: Keyboard locked.
7: The next block (step) of the program is displayed. (Current setting, Temperature and starting hour of the next block)
9 : indicator for: override temperature or ITCS is running if blinking.
10 : Cooling mode indicator (blinks when operating)
11 : Heating mode indicator (blinks when operating)
12 : Replace batteries.
13 : Days of the week.
•
A programmable electronic thermostat, which
regulates your heating system where comfort,
simplicity and energy saving go hand in hand
Weekly programme per minute
o
12 temperature levels (steps) per day
o
o Permanent memory storage
o Regulation by internal probe, external
probe or a combination of both
(external probe in option)
0.1°C
0°C - 50°C
5° C – 37° C in steps of 0.5° C
Integral proportional band or Static differential.
Class II - IP30
3 batteries AA LR06 1.5 V /> 2 years (alkaline batteries)
Relay 5A 250Vac
CTN 10K at 25°C 3 Meters
The version is displayed when the thermostat is turned off StAr _ _ _ re
1
13
12
11
10
9
6
5 7
GB
.
PPL IMP 1185 C
