Summary of Contents for Advantech ICR-2734
- Page 1 LTE Industrial Router ICR-2734 USER MANUAL...
- Page 2 ICR-2734 c 2022 Advantech Czech s.r.o. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photography, recording, or any information storage and retrieval system without written consent. Information in this manual is subject to change without notice, and does not represent a commitment on the part of Advantech.
- Page 3 Information, notice – Useful tips or information of special interest. GPL licence Source codes under GPL licence are available at https://icr.advantech.cz/source-code address. Advantech Czech s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic Document No. MAN-0066-EN, revision from July 8, 2022. Released in the Czech Republic.
-
Page 4: Table Of Contents
ICR-2734 Contents 1 Product Overview 1.1 Product Introduction ....... . . - Page 5 ICR-2734 List of Figures Access to the Internet from LAN ......Backed up Access to the Internet .
- Page 6 ICR-2734 List of Tables Hardware Overview of the Router ......Order Codes Overview ....... .
-
Page 7: Product Overview
1. Product Overview 1.1 Product Introduction Industrial cellular router ICR-2734 is designed for wireless communication in mobile net- works that use traditional cellular technologies. The primary purpose of this router is its use in the Category 4 (Cat.4) services on the cellular LTE network. -
Page 8: Product Usage Examples
ICR-2734 1.2 Product Usage Examples The router is primarily intended for these four basic situations: I. Access to the Internet from LAN Figure 1: Access to the Internet from LAN II. Backed up access to the Internet (from LAN) Figure 2: Backed up Access to the Internet... -
Page 9: Using Vpn Tunnel
ICR-2734 III. Secure networks interconnection or using VPN Figure 3: Using VPN Tunnel IV. Serial Gateway Figure 4: Serial Gateway... -
Page 10: Hardware Overview

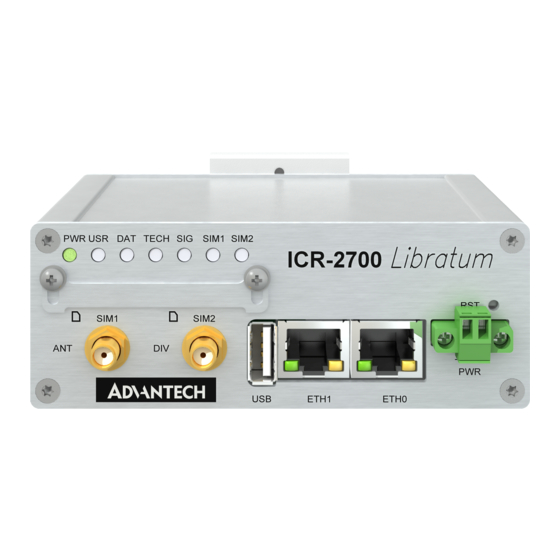

ICR-2734 1.3 Hardware Overview The router case preview is shown in Figure 5. A short description of hardware parts of the router is listed in Table 1, including the links to the chapters with a detailed description. For a router in a plastic box, the description of the components is similar. -
Page 11: Order Codes
ICR-2734 Continued from previous page Item/Caption Type Description Button to reboot the router or to restore the default configuration; see Chapter 2.7. DIN clip DIN rail clip, included as standard accessories; see Chap- ter 1.8. Grounding Pay attention to proper grounding of model with metal box;... -
Page 12: Package Contents
ICR-2734 1.5 Package Contents The standard router set includes items listed in Table 1: For other optional accessories, see Table 2. Item# Figure Q’ty Description 1 pcs Router in metal or plastic box DIN rail clip with screws (screws differ... -
Page 13: Other Accessories
ICR-2734 Table lists items that may be included as accessories or can be ordered separately. See Chapter for more information. Description Figure Ethernet cross cable of length 1.5 m. It can be ordered separately under BB-KD-ETH part number. Antenna 5G/LTE. It can be ordered separately under ANT-LTE5G-025 part number. -
Page 14: Product Dimensions
ICR-2734 1.6 Product Dimensions For the dimensions of the product in metal and plastic boxes see the figures below. Note that all sizes are measured in millimeters. Figure 5: Metal box – Front View Figure 6: Metal box – Top View... -
Page 15: Plastic Box - Front View
ICR-2734 Figure 7: Plastic box – Front View Figure 8: Plastic box – Top View... -
Page 16: Mounting Recommendations
ICR-2734 1.7 Mounting Recommendations The router can be placed: on a flat surface, on a DIN rail EN 60715 with the metal DIN rail clip (see Chapter 1.8) For most applications with a built-in router within a switchboard, it is possible to recognize... -
Page 17: Din Rail Mounting
ICR-2734 1.8 DIN Rail Mounting The DIN rail clip is suitable for a DIN rail according to EN 60715 standard only. There are four possible positions of the clip as shown in Figure 9. The DIN rail clip is the same for the metal and plastic router box. It just differs by the crews used. -
Page 18: Product Label
ICR-2734 1.9 Product Label An example of the product label, with all the information printed on it, is in the figure below. Figure 11: Label Example... -
Page 19: Hardware Functionality
ICR-2734 2. Hardware Functionality See Chapter for the product hardware overwiew. Table lists a short description of the hardware, including the links to the chapters with a detailed description. 2.1 SIM Card Slots Slots for two SIM cards are located on the front panel of the router under a metal cover. -
Page 20: Cellular Antennas
ICR-2734 2.2 Cellular Antennas Main (ANT) and diversity (DIV) antennas can be connected to the router using the SMA connectors located on the front panel. Do not run the router without connected cellular antenna connected to the main antenna connector as the energy from the transmission is effectively reflected by the open end and can damage the equipment. -
Page 21: Power Supply
ICR-2734 2.4 Power Supply The pins of power supply are physically connected to the 6-pin terminal block panel socket located on the left panel. The connection of power supply is shown in Figure and described in Table 4. Figure 7: Connection of Power Supply... -
Page 22: Usb Port
ICR-2734 2.5 USB Port There is one USB 2.0 host port with socket of USB-A type. USB Mass Storages and FTDI serial converters are supported. For a piece of advice, how to fix an unsupported FTDI chip, see the Commands and Scripts application note, chapter How to Use Unsupported FTDI Chip. -
Page 23: Led Status Indication
ICR-2734 2.6 LED Status Indication There are LED indicators on the front panel of the router to provide router status informa- tion. Moreover, ETH connector, has two additional LEDs providing information about the port status. Caption Color State Description Green... -
Page 24: Reset Functions
ICR-2734 2.7 Reset Functions The RST button on the front panel can be used in three different situations: Reboot the router: Hold the RST button for less than 4 seconds, the router will be restarted. Factory reset – restore the default configuration: Hold the RST button for more than 4 seconds. -
Page 25: Overview Of Router Reboot And Reset
ICR-2734 Action Router behavior Trigger events – options Reboot Turns off and then Disconnect and reconnect the power. turns on the router Send text reboot via SMS to SIM card number put in your router (your phone number has to be authorized –... -
Page 26: First Use
ICR-2734 3. First Use 3.1 Powering up the Router The router will start up when a power supply is connected to it. By default, the router will automatically log on to the default APN of the inserted SIM card. The DHCP server will assign an addresses to the devices connected through the Ethernet port ETH0. -
Page 27: Router's Web Interface
ICR-2734 Figure 11: Router’s Web Interface A detailed description of the router settings in the web interface can be found in the configura- tion manual of the router. -
Page 28: Technical Specifications
ICR-2734 4. Technical Specifications 4.1 Basic Parameters Router parameters Temperature range Operating -40 C to +75 C Storage -40 C to +85 C Humidity Operating 5 to 95 % relative humidity non condensing Storage 5 to 95 % relative humidity non condensing... -
Page 29: Standards And Regulations
ICR-2734 4.2 Standards and Regulations The router complies with the following standards and regulations: Standards and regulations Radio EN 301 511, EN 301 908-1, EN 301 908-2, EN 301 908-13 EN 301 489-1, EN 301 489-52, EN 61000-4-2, EN 61000-4-3,... -
Page 30: Type Tests And Environmental Conditions
ICR-2734 4.3 Type Tests and Environmental Conditions Phenomena Test Description Test levels EN 61000-4-2 Enclosure 6 kV, L3 8 kV, L3 RF field AM EN 61000-4-3 Enclosure 20 V/m, 80 MHz – 1 GHz, LX modulated 10 V/m, 1 GHz – 6 GHz, L3... -
Page 31: Parameters Of Cellular Module
ICR-2734 4.4 Parameters of Cellular Module Technical parameters of cellular module Antenna Connector type: SMA Impedance: 50 LTE parameters LTE: LTE Cat.4, 3GPP Rel. 10 FDD frequencies: B28 (700 MHz), B20 (800 MHz), B5 (850 MHz), B8 (900 MHz), B3 (1800 MHz), B1 (2100 MHz),... -
Page 32: System Configuration
ICR-2734 4.5 System Configuration The main parametes of the system are listed in Table 12. Other technical parameters CPU architecture ARM926EJ-S CPU frequency 600 MHz CPU power 4,72 DMIPS/MHz Flash memory 4 MB of NOR 4 096 MB of eMMC... -
Page 33: Appendix A: Troubleshooting
ICR-2734 Appendix A: Troubleshooting If you cannot connect to the router from your PC, your network card may be configured in such a way that it is not possible to connect to the router. Take one or more of the following steps in order to solve the problem: Make sure your PC’s network card is configured to obtain the IP address form the... - Page 34 ICR-2734 I can’t access my Web server placed behind the router over NAT. The remote HTTP access to the router has to be disabled on "NAT Configuration" page in the router. Also enable "Send all remaining incoming packets to default server"...
- Page 35 ICR-2734 Serial communication is not working. Verify that the router model supports serial communications. Also verify the serial communication settings. To do so, open the router’s configuration menu via the web browser, select the appropriate "Expansion Port" from "Configuration" part of the menu and verify the settings.
-
Page 36: Appendix B: Customer Support
ICR-2734 Appendix B: Customer Support Customer Support for Europe Advantech Czech s.r.o. Sokolska 71 562 04, Usti nad Orlici, Czech Republic Phone: +353 91 792444 Fax: +353 91 792445 E-mail: iiotcustomerservice@advantech.eu Web: www.advantech.com Customer Support for NAM Advantech B+B SmartWorx... -
Page 37: Appendix C: Regulatory & Safety Information
ICR-2734 Appendix C: Regulatory & Safety Information Safety Notices Please, observe the following instructions: The router must be used in compliance with all applicable international and national laws and in compliance with any special restrictions regulating the utilization of the router in prescribed applications and environments. - Page 38 ICR-2734 Product Disposal Instructions The WEEE (Waste Electrical and Electronic Equipment: 2012/19/EU) directive was in- troduced to ensure that electrical/electronic products are recycled using the best available recovery techniques to minimize the impact on the environment. This product contains high quality materials and components which can be recycled.
-
Page 39: Appendix D: Related Documents
ICR-2734 Appendix D: Related Documents Quick Start Guide for v2i Platform Configuration Manual for v2i Platform [EP] Product-related documents and applications can be obtained on Engineering Portal at address. https://icr.advantech.cz/download... - Page 40 ICR-2734 We, Advantech Czech s.r.o., declare that the radio equipment narrated in this user’s manual complies with Radio Equipment Regulations 2017 (S.I. 2017 No. 1206). We, Advantech Czech s.r.o., declare that the radio equipment narrated in this user’s manual complies with Directive 2014/53/EU.
