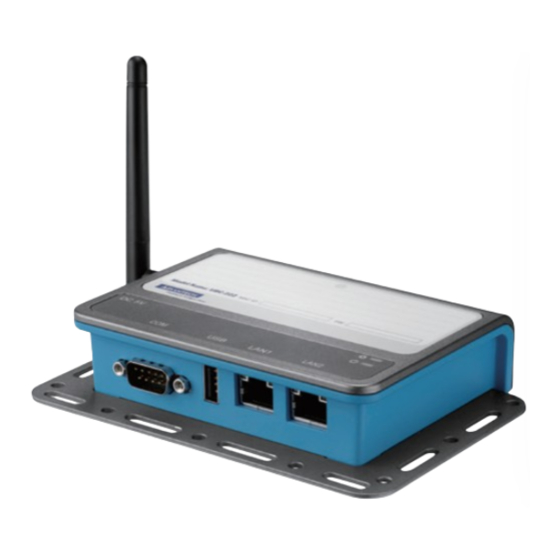

Advantech WISE-3200 Series User Manual
  1. Manuals
  2. Brands
  3. Advantech Manuals
  4. Wireless Router
  5. WISE-3200 Series
  6. User manual

Advantech WISE-3200 Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
WISE-3200 Series
WISE-3220 Wi-Fi for EPD-662,
880
WISE-3240 EPD Router for EPD-
230, 332
WISE-3270 4G Router for EPD
Solution

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WISE-3200 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech WISE-3200 Series

Summary of Contents for Advantech WISE-3200 Series

  • Page 1 User Manual WISE-3200 Series WISE-3220 Wi-Fi for EPD-662, WISE-3240 EPD Router for EPD- 230, 332 WISE-3270 4G Router for EPD Solution...
  • Page 2 No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. The information provided in this manual is intended to be accurate and reliable.
  • Page 3 Note 2: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. 備考 3.〝－〞係指該項限用物質為排除項目。 Note 3: The “−” indicates that the restricted substance corresponds to the exemption. WISE-3200 Series User Manual...
  • Page 4 WISE-3220IOS-21C2T WISE-3240IOS-41C2T WISE-3270IOS-71C2T WISE-3220IOS-21C3T WISE-3240IOS-41C3T WISE-3270IOS-71C3T WISE-3220IOS-21C4T WISE-3240IOS-41C4T WISE-3270IOS-71C4T WISE-3220IOS-21C5T WISE-3240IOS-41C5T WISE-3270IOS-71C5T WISE-3220IOS-21C6T WISE-3240IOS-41C6T WISE-3270IOS-71C6T WISE-3220IOS-21C7T WISE-3240IOS-41C7T WISE-3270IOS-71C7T WISE-3220IOS-21C8T WISE-3240IOS-41C8T WISE-3270IOS-71C8T WISE-3220IOS-21C9T WISE-3240IOS-41C9T WISE-3270IOS-71C9T WISE3220IOS21A1T-T WISE3240IOS41A1T-T WISE3270IOS71A1T-T WISE3220IOS21A2T-T WISE3240IOS41A2T-T WISE3270IOS71A2T-T WISE3220IOS21A3T-T WISE3240IOS41A3T-T WISE3270IOS71A3T-T WISE3220IOS21A4T-T WISE3240IOS41A4T-T WISE3270IOS71A4T-T WISE-3200 Series User Manual...
  • Page 5 This equipment complies with FCC radiation exposure limits set forth for an uncon- trolled environment. This equipment should be installed and operated with minimum distance of 20 cm (7.87 in) between the radiator and your body. WISE-3200 Series User Manual...
  • Page 6 20 公分。 b. WISE-3240 電波功率密度 MPE 標準值：1 mW/cm²，送測產品(WLAN)實測值： 0.198 mW/cm²，送測產品(ZigBee)實測值：0.0.042 mW/cm²，建議使用時設備 天線距人體至少 20 公分。 c. WISE-3270 電波功率密度 MPE 標準值：1 mW/cm²，送測產品實測值：0.179 mW/cm²，建議使用時設備天線距人體至少 20 公分。 「本產品支援 WCDMA B1、B8、LTE B1/B3/B7/B8/B28」。 申請商：研華股份有限公司 地址：台北市內湖區瑞光路 26 巷 20 弄 1 號 電話：02-27927818 WISE-3200 Series User Manual...
  • Page 7 WISE-1840WTB-TD01E MINI PCIE Card for Zigbee host control for EU 1930000721 Screw for mounting Mini PCIE LTE 4G,3G WCDMA/DC-HSPA+, 2G Card for US EWM-C117FL03E (please add the line between these products) EWM-C117FL04E Mini PCIE LTE 4G,3G WCDMA/DC-HSPA+, 2G Card for EU Ordering Information WISE-3200 Series User Manual...
  • Page 8 The equipment has been dropped and damaged – The equipment shows obvious signs of breakage DISCLAIMER: These instructions are provided according to IEC 704-1 standards. Advantech disclaims all responsibility for the accuracy of any statements contained herein. WISE-3200 Series User Manual viii...

  • Page 9: Table Of Contents

    Figure 2.2 WISE-3270 Left Side View ......... 8 Figure 2.3 WISE-3220/3240 Left Side View ........ 8 2.1.2 WISE-3200 Series Antenna Connectors........8 Figure 2.4 WISE-3200 Series Antenna Connectors ....8 2.1.3 LED Indication................9 Table 2.1: WISE-3200 LED Indications ........9 Figure 2.5 WISE-3200 LED Locations.........
  • Page 10 Reboot ..................37 Figure 3.34Reboot..............37 3.5.4 Diagnostics ................. 37 Figure 3.35Diagnostics............... 37 3.5.5 Remote Management ..............37 Figure 3.36Remote Management..........37 Wi-Fi Configuration ................. 38 Figure 3.37Wi-Fi Configuration........... 38 3.6.1 Wi-Fi Configuration: General Setup..........38 WISE-3200 Series User Manual...
  • Page 11 Wi-Fi Configuration: Advanced Setup......... 40 Figure 3.42Wi-Fi Configuration Advanced Setup ....... 40 3.6.3 Wireless Security ................ 41 Figure 3.43Wireless Security............41 3.6.4 MAC Filter ................... 41 Figure 3.44MAC Filter..............41 3.6.5 Static Routes................42 Figure 3.45Static Routes ............42 WISE-3200 Series User Manual...
  • Page 12 WISE-3200 Series User Manual...

  • Page 13: Chapter 1 General Introduction

    Chapter General Introduction This chapter details information on the WISE-3200 Series Sections include:  Introduction  Specification...

  • Page 14: Introduction

    EPD-332, we select 2.4GHz Wi-Fi or Ethernet in up-link and zigbee-like for down-link with WISE-1840. For EPD-770 and EPD-870, we select 4G/LTE in up-link. The Advantech WISE-3200 series industrial router is an IoT solution designed for smart city and industry 4.0 applications.

  • Page 15: Product Features

    WEP 64/128 bit, WPA_PSK, WPA2_PSK, Security WPA_PSK/WPA2_PSK (Mixed Mode) Password protected access Wifi IEEE 802.11b/g/n 2T2R Connectivity Advantech Zigbee-like (optional) IEEE 802.15.4 Expansion Mini PCIe 1 x full size mini PCIe module Antenna x1 Wi-Fi LED x2 Power on, Wi-Fi & Zigbee-like module on...
  • Page 16 Figure 1.1 Block Diagram WISE-3200 Series User Manual...

  • Page 17: Mechanical Specifications

     (-4 ~ 140 °F) Operating humidity: 5 ~ 95% relative humidity, non-condensing  Storage temperature: -40 ~ 85 °C (-40 ~ 185 °F)  Storage humidity: 60 °C/ 140 @ 95% RH Non-condensing °F  WISE-3200 Series User Manual...

  • Page 18: I/O Diagram

    I/O Diagram Figure 1.3 WISE-3220/WISE-3240/WISE-3270 I/O Back Side View Figure 1.4 WISE-3220/WISE-3240 I/O Side View Figure 1.5 WISE-3270 I/O Side View WISE-3200 Series User Manual...

  • Page 19: Chapter 2 H/W Installation

    Chapter H/W Installation This chapter details mechanical and connector information on the WISE-3200 series Sections include:  WISE-3200 I/O Indication Infor- mation  On board Connectors and Switches  WISE-3200 Hardware Installa- tion...

  • Page 20: Introduction

    2.1.2 WISE-3200 Series Antenna Connectors The WISE-3200 series provides 1 x SMA antenna connector. The rest of the internal antennas are built into the housing. WISE-3220/WISE-3240 comes with 1 x 2.4G SMA antenna. WISE-3270 comes with 1 x LTE antenna. The materials demonstrated in the table (2.3.2) are needed to enable the WWAN feature.

  • Page 21: Led Indication

    OFF = No RJ-45 Plug-in Orange LED Steady ON = RJ-45 Plug-in Orange LED Blinking = 10M/100Mbps TX / RX Transmission OFF = No RJ-45 Plug-in Figure 2.5 WISE-3200 LED Locations Figure 2.6 WISE-3200 LED Locations WISE-3200 Series User Manual...

  • Page 22: Reset Button

    2.1.4 Reset Button The WISE-3200 series has a reset button on the left side. Press this button to acti- vate the hardware reset function. Figure 2.7 Reset Button Locations 2.1.5 Ethernet Connector (WAN, LAN) The WISE-3200 series provides 1 x RJ45 WAN and one RJ45 LAN interface connec- tor.

  • Page 23: Power Input Connector

    Figure 2.11 Serial Port 2.1.8 Power Input Connector The WISE-3200 series comes with a DC-jack header for 12V DC external power input. Figure 2.12 Power WISE-3200 Series Jack 2.1.9 Micro SIM Connector The WISE-3270 has one micro SIM slot. Users can insert micro SIM cards manually.

  • Page 24: On Board Connectors And Switches

    Wi-Fi IPEX Connector 2 2.2.2 Connector Settings 2.2.2.1 Mini-PCIe Card Slot (CN4) WISE-3200 series supports a Mini-PCIe card slot to enable WPAN functions in Advantech IEEE802.15.4 Zigbee-like protocol. Mini-PCIe Card Slot Figure 2.14 Mini-PCIe Card Slot WISE-3200 Series User Manual...
  • Page 25 MICRO SIM CARD SLOT Figure 2.15 Micro-SIM Card Slot 2.2.2.3 Hardware Switch (SW2) WISE-3200 series supports a hardware switch for selecting RS-232 / RS-422 / RS- 485. The factory default setting is RS-232 by SW2:1000 Figure 2.16 Hardware Switch 2.2.2.4 On board Wi-Fi IPEX Connector (Ant1, Ant2) WISE-3200 series has built-in Wi-Fi functions that enable WLAN capabilities.

  • Page 26: Wise-3200 Series Hardware Installation

    IPEX connectors on the WISE-1840 module. Figure 2.18 WISE-1840 Module IPEX Connector WISE-3200 Series Hardware Installation 2.3.1 Mounting Assembly Method You can secure WISE-3200 series to a wall using the wall mounting kit demonstrated below: Figure 2.19 WISE-3200 Mounting Method WISE-3200 Series User Manual...

  • Page 27: Enable Wpan Feature With Hardware Installation

    2.3.2 Enable WPAN Feature With Hardware Installation The WISE-3200 series supports Advantech Zigbee-like technology for WWAN mini- PCIEe card installation and accessories. Instructions are as follows: Content Description Remark MINI PCIE Card for WISE-1840 Zigbee host control Open WISE-3200 top case by releasing 2 screws on the bottom mounting plate.
  • Page 28 Assemble the 2 x antenna cables (one is 1750008669-01 and the other is pro- vided in the housing) on WISE-1840 module by the following the diagram.  WISE-3200 Series User Manual...

  • Page 29: Chapter 3 Software Functionality

    Chapter Software Functionality This chapter details software con- figurations for the WISE-3200 Series.
  • Page 30 Wi-Fi 20-40 MHz channel bandwidth selection Wi-Fi Encryption: WEP 64/128bit, WPA/WPA2/WPA2 Mixed Wireless Wi-Fi SSID/Password update Network Wi-Fi Scan AP button Coexist of AP and STA mode WAN Connection Type for IPv4 (DHCP client, static IP) Ethernet LAN Independent DHCP Server WISE-3200 Series User Manual...

  • Page 31: Web Gui Login

    Figure 3.1 WEB GUI Login Router Ethernet Deployment Users can setup network configurations. Figure 3.2 Router Ethernet Deployment 3.2.1 NorthBound Visit Network → Ethernet. Select WAN → Edit. Figure 3.3 Step 2: Select WAN → Edit WISE-3200 Series User Manual...
  • Page 32 When a user chooses a static address, the router will activate a static IP provided by the Ethernet WAN port. Users need to configure related the IPv4 address, the IPv4 netmask, the IPv4 router, and the DNS servers. Figure 3.5 Step 3: Setup Static Address WISE-3200 Series User Manual...

  • Page 33: Southbound

    (2) Select -> DHCP Client. Setup DHCP server related settings are displayed below: Figure 3.6 Step 4: Select -> DHCP Client 3.2.2 SouthBound Visit Network → Ethernet. Select LAN→ Edit. Figure 3.7 Step 2: Select LAN→ Edit WISE-3200 Series User Manual...

  • Page 34: Wi-Fi Settings For Access Point And Hotspot Mode

    It will show 2.4Ghz Wi-Fi SSID. The Edit button can enter a detailed Wi-Fi set- tings page. Associated Stations  It will display the associated Wi-Fi hotspot including 2.4Ghz stations. Figure 3.9 Wi-Fi Settings for Access Point and Hotspot Mode WISE-3200 Series User Manual...

  • Page 35: Wi-Fi Station Mode Settings

    Wi-Fi Station Mode Settings Visit Network → Wi-Fi. To change WISE-3200 Series' up-link to a 2.4GHz Wi-Fi Network, and make it func- tion as a Wi-Fi hotspot.This results in WISE-3200's WAN port receiving an IP from the up-link Network via DHCP protocol.

  • Page 36: Wi-Fi Access Point Mode Settings

    (Station) and add a new Master interface (AP). Visit Network → Wi-Fi. Visit Wireless Overview → Disable. Figure 3.13 Step 2: Visit Wireless Overview Add Access Point to the WISE-3200 series. Figure 3.14 Step 3: Add Access Point WISE-3200 Series User Manual...
  • Page 37 (2) After establishing Wi-Fi station mode, the network content will change to WISE-3220: contain LAN/WAN/WWAN WISE-3240: contain LAN/WAN/WWAN WISE-3270: contain cellular/LAN/WAN/WWAN (3) Users need to select a LAN option in the Network's selection box. Figure 3.15 Step 4: Add ESSID Information and Select LAN Option WISE-3200 Series User Manual...
  • Page 38 Clients can make wireless connections to WISE-3200 and transmit data through uplink AP to access the Internet. WISE-3200 is acting as an active DHCP server that allows WLAN clients to share the same wireless network connection. WISE-3200 Series User Manual...

  • Page 39: Wise Router Connecting Settings

    LTE module information and SIM card connection status will appear after users insert a SIM card into the slot on WISE-3270. Users can check the connection status using the diagnostic tool. Figure 3.18 Status of WISE Cellular Router Configuration WISE-3200 Series User Manual...

  • Page 40: Tion

    USER: Users should acquire a user name from the SIM card's local telecom provider. – PASS: Users should get a password from the SIM card's local telecom pro- vider. – Operator Selection Mode: This option suggests using Auto unless user knows how to configure options. WISE-3200 Series User Manual...

  • Page 41: Wise Router Configuration In Wise-3220 And Wise-3240

    EPD Mac Address, AP SSID, AP Password, Server IP, and Server Port: 5853. Follow the set up steps detailed below. Check the SSID shown as ADV-ePaper (default), illustrated in Figure 3.22, before deploying EPD-662. WISE-3200 Series User Manual...
  • Page 42 Click “Add EPD Node” button”. Figure 3.24 Step1-3: EPD Deployment in WISE-3220 Enter the information of EPD MAC address, AP SSID, AP Password, Server IP, and Server Port: EPD MAC address: Please check the back of EPD device WISE-3200 Series User Manual...
  • Page 43 Server IP: Depends on your server IP Address Server Port: 5853 Figure 3.25 Step 4: Enter the Information Changed information should be recorded by click “save & apply” button or it will be lost. Figure 3.26 Step 5: Click “save&apply” WISE-3200 Series User Manual...
  • Page 44 The Array column is defined as follows: TagMac: EPD device Mac Address Tagssid: Connecting AP SSID Tagpswd: Connecting Password Taggwip: Connecting DeviceOn/ePaper Sever IP Taggwport: Connecting DeviceOn/ePaper Sever Port Figure 3.28 Step 3: json File Example WISE-3200 Series User Manual...
  • Page 45 Click “choose file button” to upload Node.json and then click “Overwrite button”. Figure 3.29 Step 4: Click “Overwrite” and “save&apply” WISE-3200 Series User Manual...

  • Page 46: System

    Hostname of a specific router. Timezone  Timezone settings for the router. Enable NTP client  Enable/disable SNTP client function. NTP server candidates  Router will perform time synchronization with SNTP server configured here. Figure 3.30 System WISE-3200 Series User Manual...

  • Page 47: Administration

    Visit System → Administration to change the router password. Old Password  Input the original password to authenticate a change of password. Password and Confirmation  Input the new password twice to double confirm a password change. Figure 3.31 Administration WISE-3200 Series User Manual...

  • Page 48: Backup/Flash Firmware

    To upgrade firmware, please select firmware and press the Flash image button. Flash Firmware-Verify  If you select this, the router will compute the MD5CHECKSUM for checking, and ask the user to Proceed or Cancel. Figure 3.33 Flash Firmware-Verify WISE-3200 Series User Manual...

  • Page 49: Reboot

    This is used to enable/disable port access from WAN zone interface. The WAN zone interface includes Ethernet WAN and a 4G module. After enabling the port on the WAN interface, the external host can access related services by running a router. Figure 3.36 Remote Management WISE-3200 Series User Manual...

  • Page 50: Wi-Fi Configuration

    The SSID is for this wireless interfaces. Mode  Configure this SSID to be AP, Client or WDS-AP, WDS-Client. Hide ESSID  Choose to hide SSID explored by clients. Click “Edit” button. Figure 3.38 Step 1: Click “Edit” button WISE-3200 Series User Manual...
  • Page 51 * Note: Transmit Power is based on certification testing results. Figure 3.39 Step 3: Change “Channel” and “Transmit Power” Change SSID, Network Setting to lan, and Click Wireless Security. Figure 3.40 Step 3: Change SSID, Network Setting, and Wireless Security WISE-3200 Series User Manual...
  • Page 52 Settings TAB to check or modify advance settings for the device level. Mode  This is the operating mode for Wi-Fi interfaces. It supports auto, 802.11b,802.11b+g, 802.11g, 802.11g+n and , 802.11n for 2.4Ghz band. Figure 3.42 Wi-Fi Configuration Advanced Setup WISE-3200 Series User Manual...
  • Page 53 This chip level MAC filter is used to drop hotspot traffic. It supports disable by default, listed only (white list), and all except listed (black list) functions. MAC-List  To choose the MAC address to list. WISE-3200 Series User Manual...
  • Page 54 3.6.5 Static Routes Visit Status → Routes. Users can view the status of the router’s static route. Figure 3.45 Static Routes WISE-3200 Series User Manual...
  • Page 55 WISE-3200 Series User Manual...
  • Page 56 No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2021...
