Summary of Contents for Pulse Shower Spas Nirvana 1070-CH

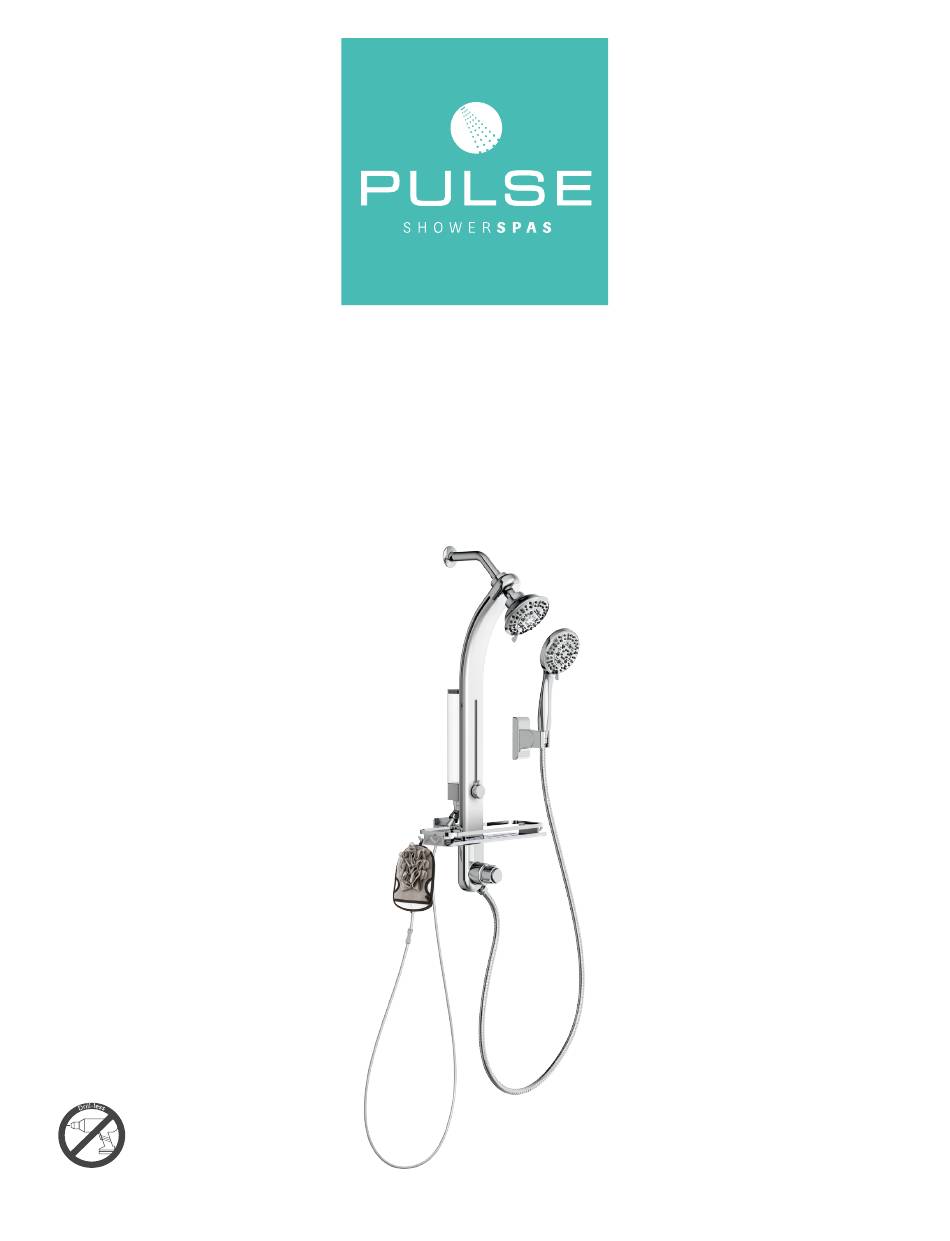

- Page 1 Nirvana Shower System Model #1070-CH PW-91070-8225CP Owner's Manual All images shown are for illustration purposes. Actual product may vary due to prodcut enhancement.
- Page 2 Nirvana Shower System/PW-91070-8225CP Please Read The Following Instructions COMPLETELY Before Beginning! Our goal is to ensure your installation goes smoothly and safely. Please read these instructions carefully and follow recommendations for plumbing and mounting. After reading instructions, if you determine you do not have the necessary skills and/or tools, we recommend that a licensed plumbing contractor complete the installation.
- Page 3 Parts Legend 1. Set Screws 9. Shelf 17. Plumber's Tape 2. Shower System 10. Allen Wrench 18. Washer 3. Showerhead 11. Shelf Screw 19. Loofa Glove 4. Mirror 12. Wall Mount 20. Soap Dispenser 5. Handshower 13. Mounting Screws 21. Diverter 6.
-
Page 4: Installation Instructions
Installation Instructions BEFORE YOU BEGIN Measure the following to ensure your shower system will fit properly. Measure Remove existing showerhead from shower arm 28” minimum Remove any remnants of old plumber's tape and flush out shower pipe. Make sure distance from water outlet and mixing valve trim (NOT INCLUDED) is a minimum 28"... - Page 5 Installation Instructions Glue Back of handheld holder Glue Back of wall mount Handshower holder is tapered. Assure larger opening is upright. Loofa assembly: Connect loofa (19) and loofa hose (8) to shower Insert washer (18) and screw shower system (2) onto shower arm. system (2).
- Page 6 Installation Instructions USAGE: Use existing shower valve to turn water on/off and adjust temperature. Always turn cold water on first to help prevent any accidental burning or scalding; especially for children and elderly. Use diverter to choose desired function. Switch between showerhead, handshower, or loofa.
-
Page 7: Care And Maintenance
Ch e m i c a l s O r A b r a s i ve s ! MANUFACTURER'S LIFETIME LIMITED WARRANTY 1. Defects Covered; Warranty Period: Pulse Shower Spas, 5. No Other Warranties; Limitation of Liability: OTHER Inc. (“Pulse”) warrants to the original consumer purchaser THAN THE LIFETIME LIMITED WARRANTY STATED who purchases this shower spa (the “Product”) for use in... - Page 8 NOTES PULSE ShowerSpas, Inc. | 297 Anna Street | Watsonville, CA 95076 | 831.724.7300 www.PulseShowerSpas.com PM-AA-02...
