Summary of Contents for Pulse Shower Spas Waimea ShowerSpa 1034

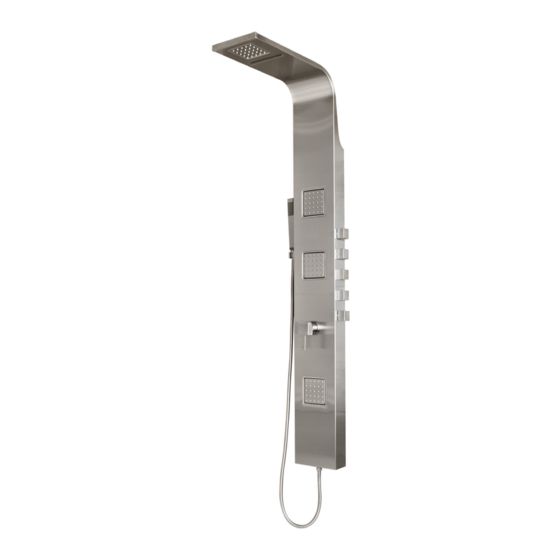

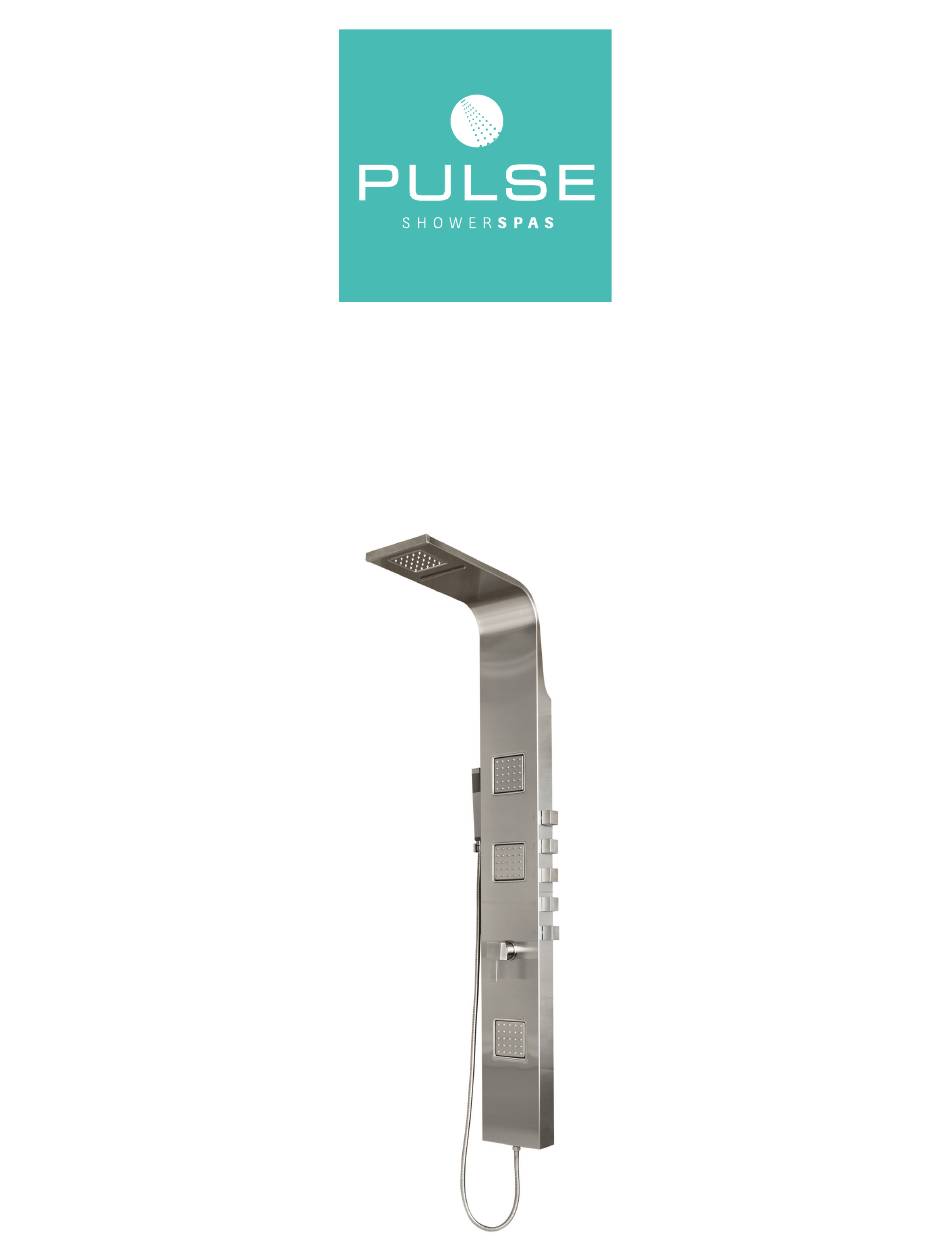

- Page 1 Waimea ShowerSpa Model #1034 PW-91034-5525BSS Owner's Manual...
- Page 2 Waimea ShowerSpa Model #1034 / PW-91034-5525BSS Please Read The Following Instructions COMPLETELY Before Beginning! Our goal is to ensure your installation goes smoothly and safely. Please read these instructions carefully and follow recommendations for plumbing and mounting. After reading instructions, if you determine you do not have the necessary skills and/or tools, we recommend that a licensed plumbing contractor complete the installation.
- Page 3 Dimensions 8 in. - 203.2 mm 21.75 in. - 552.45 mm Finished Wall Line Mount Bracket Mount Bracket 3 in. - 76.2 mm...
- Page 4 Parts Legend 1. ShowerSpa 6. Hand Holder Outlet 10. Nylon Anchor (2 extra).....6 2. Handshower 7. Handshower Outlet 11. Rubber Washer 3. Shower Hose 8. Mount Bracket ... 2 (3 extra).....5 4. Handshower Holder 9. Mounting Screw 12. Flow Restrictor..2 (2 extra) ....
- Page 5 Assembly After Unpacking Your ShowerSpa, Some Assembly Is Required Prior To Installation Handshower Holder Assembly Figure 2 1. Place the threaded end of the handshower holder (4) into the handshower outlet (6). Make certain the opening in the handshower holder (4) is facing forward.
- Page 6 New Construction or Extensive Remodel – New Finished Wall Surface 1. Prior to sheetrock, stub-out ½" hot and cold supply lines 4c. Use the mounts to mark only one of the lower holes in each beyond finished wall surface, 4" on center. For best results, mount, whichever is most convenient.
-
Page 7: Care And Maintenance
Usage Pressure Balance Mixing Valve This ShowerSpa is equipped with a cUPC® pressure balance mixing valve to adjust water flow and temperature. The valve automatically adjusts to changes in water pressure (i.e. someone flushes a toilet), keeping your temperature constant and preventing accidental scalding. To turn on the ShowerSpa simply raise the handle until the desired flow rate is achieved. - Page 8 Manufacturer’s Lifetime Limited Warranty 1. Defects Covered; Warranty Period. Pulse Shower Spas, 5. No Other Warranties; Limitation of Liability. OTHER Inc. (“Pulse”) warrants to the original consumer purchaser THAN THE LIFETIME LIMITED WARRANTY STATED who purchases this shower spa (the “Product”) for use in his...
