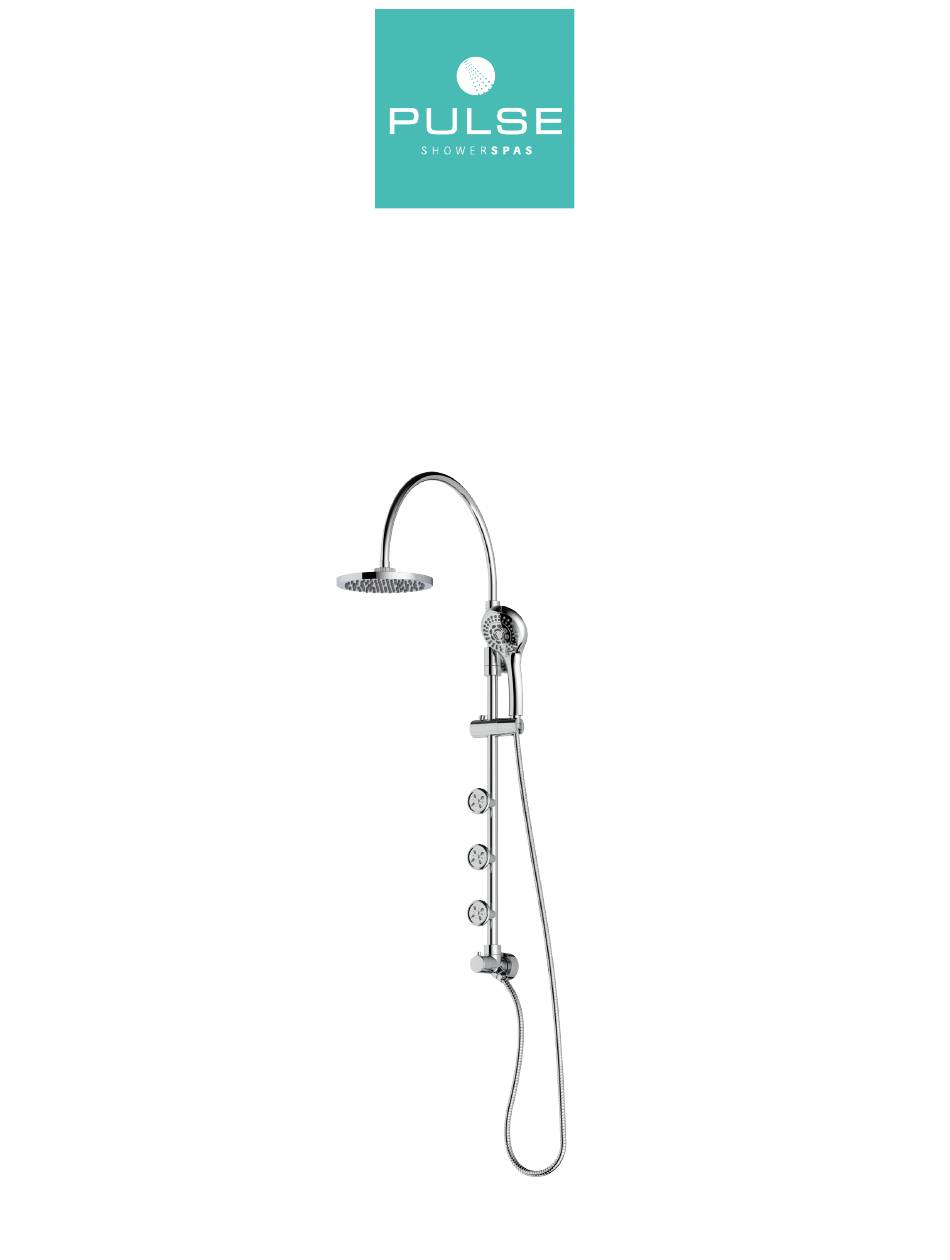

- Page 1 Riviera Shower System Model #7001-BN & 7001-CH PW-97001-6518BRN & PW-97001-6518CP Owner's Manual...
- Page 2 Riviera Shower System Please Read The Following Instructions COMPLETELY Before Beginning! Our goal is to ensure your installation goes smoothly and safely. Please read these instructions carefully and follow recommendations for plumbing and mounting. After reading instructions, if you determine you do not have the necessary skills and/or tools, we recommend that a licensed plumbing contractor complete the installation.
- Page 3 Parts Legend 1. Showerhead 2. Shower Arm 3. Shower Arm Riser 4. Set Screws......3 5. Escutcheon 6. Inlet Fitting 7. Shower Pipe 8. Body Jets......3 9. Handshower Holder 10. Handshower 11. Washers......3 12. Hose 13. Diverter Body 14. Diverter Handle 15.
-
Page 4: Installation Instructions
Installation Instructions BEFORE YOU BEGIN Measure the following to ensure your Shower System will fit properly. New Construction Retrofit 13” 13” minimum minimum 28” minimum 28” minimum Make sure distance from water outlet and mixing valve Remove existing shower arm and shower head. Make sure trim (NOT INCLUDED) is a minimum 28"... - Page 5 Installation Instructions Step 1 Step 2 Optional Step 2 Step 1 Connect shower pipe (7) with shower arm riser (3) shower arm (2) and secure with set screw (4). Mixing valve (NOT INCLUDED) [Step 1] Apply a generous amount of PTFE (plumber's) tape Slide escutcheon (5), insert washer (11), and screw to end of end of nipple.
- Page 6 Installation Instructions OPTIONAL CAUTION: Live Plumbing Attach assembled shower to inlet nipple and secure set Drill wall mount (15), place it on marked location and mark screws (4) with allen wrench (18) provided. holes for drilling. Set wall anchors (17) in place. Place the wall mount (15) on marked location for easy, steady, installation.
- Page 7 Installation Instructions Attach swivel joint to shower pipe (7). Insert washer (11) into the hex end of the handshower hose (12). Attach hose (12) to swivel joint on the diverter body (13). Insert washer (11) into the tapered end of the handshower hose (12) and attach the handshower (10).
-
Page 8: Care And Maintenance
1.8 GPM MANUFACTURER'S LIFETIME LIMITED WARRANTY 1. Defects Covered; Warranty Period: Pulse Shower Spas, Inc. 5. No Other Warranties; Limitation of Liability: OTHER (“Pulse”) warrants to the original consumer purchaser who THAN THE LIFETIME LIMITED WARRANTY STATED ABOVE, purchases this shower spa (the “Product”) for use in his or her own...
