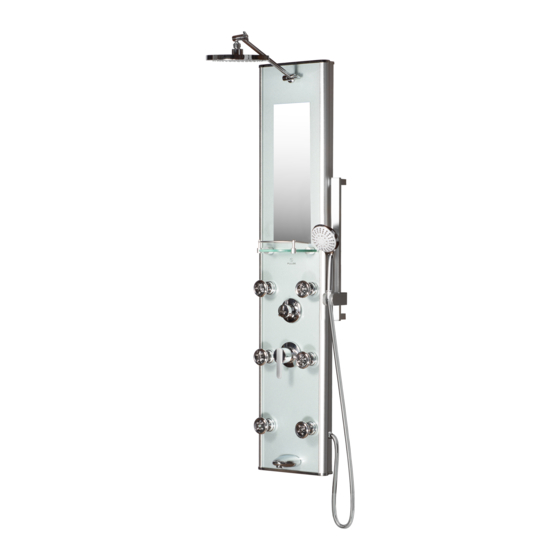

- Page 1 Kihei II ShowerSpa Model #1013-GL PW-91013-4825SL Owner's Manual...
- Page 2 Kihei ShowerSpa/PW-91013-4825SL Please Read The Following Instructions COMPLETELY Before Beginning! Our goal is to ensure your installation goes smoothly and safely. Please read these instructions carefully and follow recommendations for plumbing and mounting. After reading instructions, if you determine you do not have the necessary skills and/or tools, we recommend that a licensed plumbing contractor complete the installation.
-
Page 3: Product Dimensions
Product Dimensions 18 in. - 457.2 mm 2 in. - 10 in. - 254 mm 50.8 mm Finished Wall Line Holes For Mount Bracket 2.75 in. - 69.85 mm 5.75 in. - 11 in. - 279.4 mm 146.05 mm... - Page 4 Parts Legend 1. ShowerSpa 8. Hand Shower Holder 15. Nylon Anchor ....(2) 2. Showerhead 9. Hand Shower Hose 16. Glass Shelf 3. Shower Arm 10. Machine Screw ....(4) 17. Shelf Set Screw ....(2) 4. Slide Bar 11. Lock Washer ...... (4) 18.
- Page 5 ShowerSpa Assembly Some Assembly is Required Prior to Installation. Slide Bar Assembly Refer to exploded line drawing for reference. 1. Hold slide bar (4) with grooves facing away from you. Press button on hand shower holder (8) and place onto slide bar (4) with holder facing you and button on top.
-
Page 6: Installation
Installation New Construction or Extensive Remodel – New Finished Wall Surface 1. Prior to sheetrock, stub-out ½" hot and cold supply lines 6. Drill ¼" holes through wall surface using a masonry bit. Drill beyond finished wall surface, 4" on center. For best results, slowly through wall surface to avoid cracking and chipping. -
Page 7: Care And Maintenance
Usage Pressure Balance Mixing Valve This ShowerSpa is eqiuipped with a cUPC® pressure balance mixing valve to adjust water flow and temperature. The valve automatically adjusts to changes in water pressure (i.e. someone flushes a toilet), keeping your temerature constant and preventing accidental scalding. To turn on the ShowerSpa simply raise the handle until the desired flow rate is achieved. - Page 8 Manufacturer’s Lifetime Limited Warranty 1. Defects Covered; Warranty Period. Pulse Shower Spas, 5. No Other Warranties; Limitation of Liability. OTHER Inc. (“Pulse”) warrants to the original consumer purchaser THAN THE LIFETIME LIMITED WARRANTY STATED who purchases this shower spa (the “Product”) for use in his...
