Summary of Contents for Pulse Shower Spas Monterey ShowerSpa 1042-SSB-1.8GPM

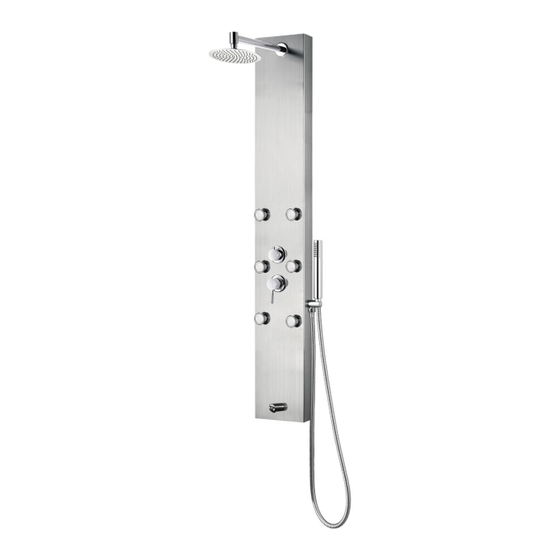

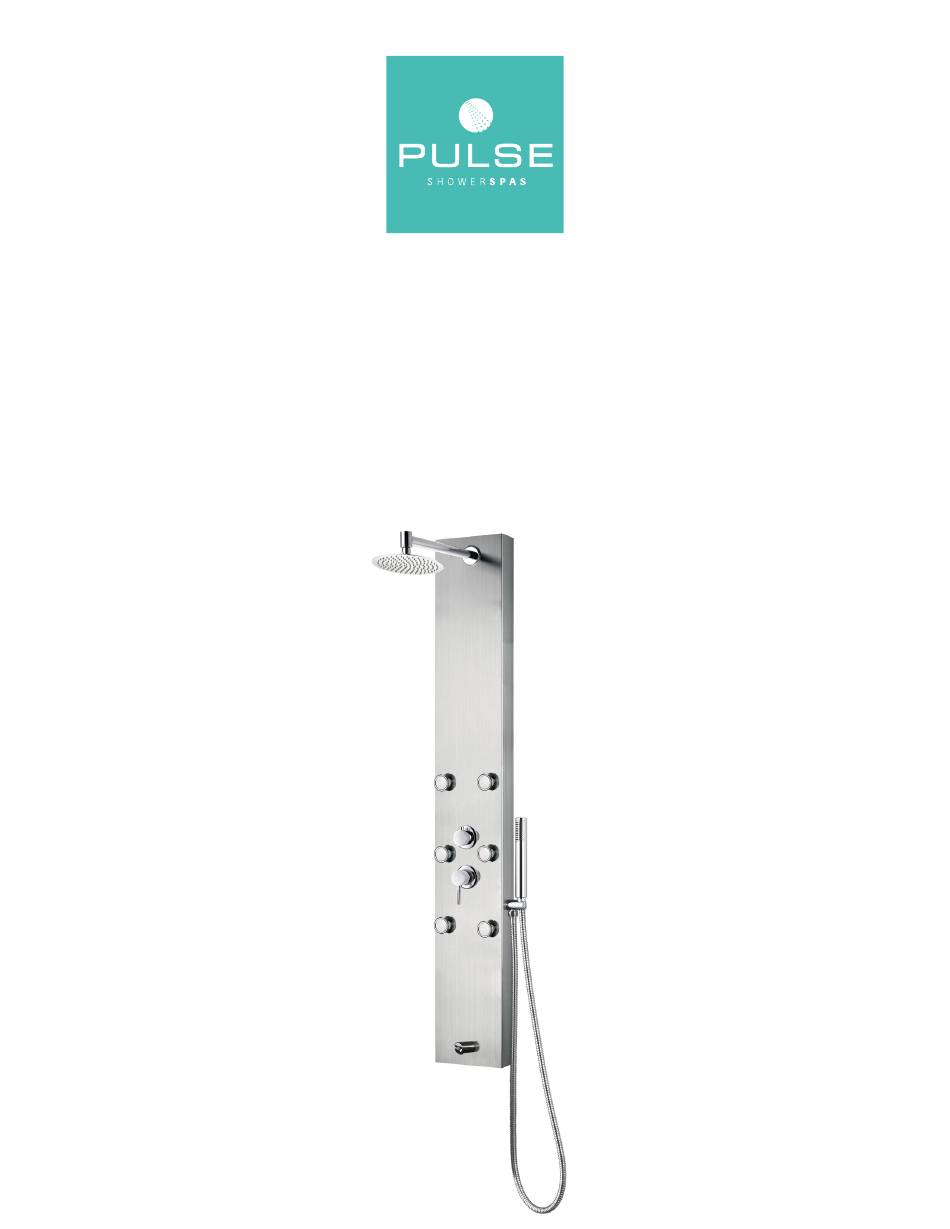

- Page 1 Monterey ShowerSpa Model #1042-SSB-1.8GPM, 1042-SSB, 1042-ORB-1.8GPM, & 1042-ORB PW-91042-2018BSS, PW-91042-2025BSS PW-91042-2018BRZ, & PW-91042-2025BRZ Owner's Manual...
- Page 2 ShowerSpa Please Read The Following Instructions COMPLETELY Before Beginning! Our goal is to ensure your installation goes smoothly and safely. Please read these instructions carefully and follow recommendations for plumbing and mounting. After reading instructions, if you determine you do not have the necessary skills and/or tools, we recommend that a licensed plumbing contractor complete the installation.
- Page 3 Dimensions 16.5 in. - 419.1 mm 13 in. - BACK FRONT 330.2 mm 8 in. - 3 in. - 203.2 mm 76.2 mm...
- Page 4 Parts Legend 1. ShowerSpa 7. 90° Elbow/Supply Line..2 13. Handshower Hose 2. Shower Arm 8. Showerhead 14. Handshower 3. Escutcheon 9. Screw........4 15. Flow Restrictor Housing 4. Silicone Gasket....2 10. Mounting Bracket....2 16. Flow Restrictor 5. Nut.........2 11. Wall Anchor......4 17.
- Page 5 Assembly After Unpacking Your ShowerSpa, Some Assembly Is Required Prior To Installation Shower Arm Assembly 1. Place escutcheon (3) over threaded end of shower arm (2) and insert through shower arm hole. At back of panel, place silicone gasket (4) over shower arm and secure with nut (5) to ShowerSpa.
- Page 6 nstallation New Construction or Extensive Remodel – New Finished Wall Surface 1. Prior to sheetrock, stub-out ½" hot and cold supply lines 4c. Use the mounts to mark only one of the lower holes in each beyond finished wall surface, 4" on center. For best results, mount, whichever is most convenient.
- Page 7 Usage Pressure Balance Mixing Valve This ShowerSpa is equipped with a cUPC® pressure balance mixing valve to adjust water flow and temperature. The valve automatically adjusts to changes in water pressure (i.e. someone flushes a toilet), keeping your temperature constant and preventing accidental scalding. To turn on the ShowerSpa simply raise the handle until the desired flow rate is achieved.
- Page 8 Manufacturer’s Lifetime Limited Warranty 1. Defects Covered; Warranty Period. Pulse Shower Spas, 5. No Other Warranties; Limitation of Liability. OTHER Inc. (“Pulse”) warrants to the original consumer purchaser THAN THE LIFETIME LIMITED WARRANTY STATED who purchases this shower spa (the “Product”) for use in his...
