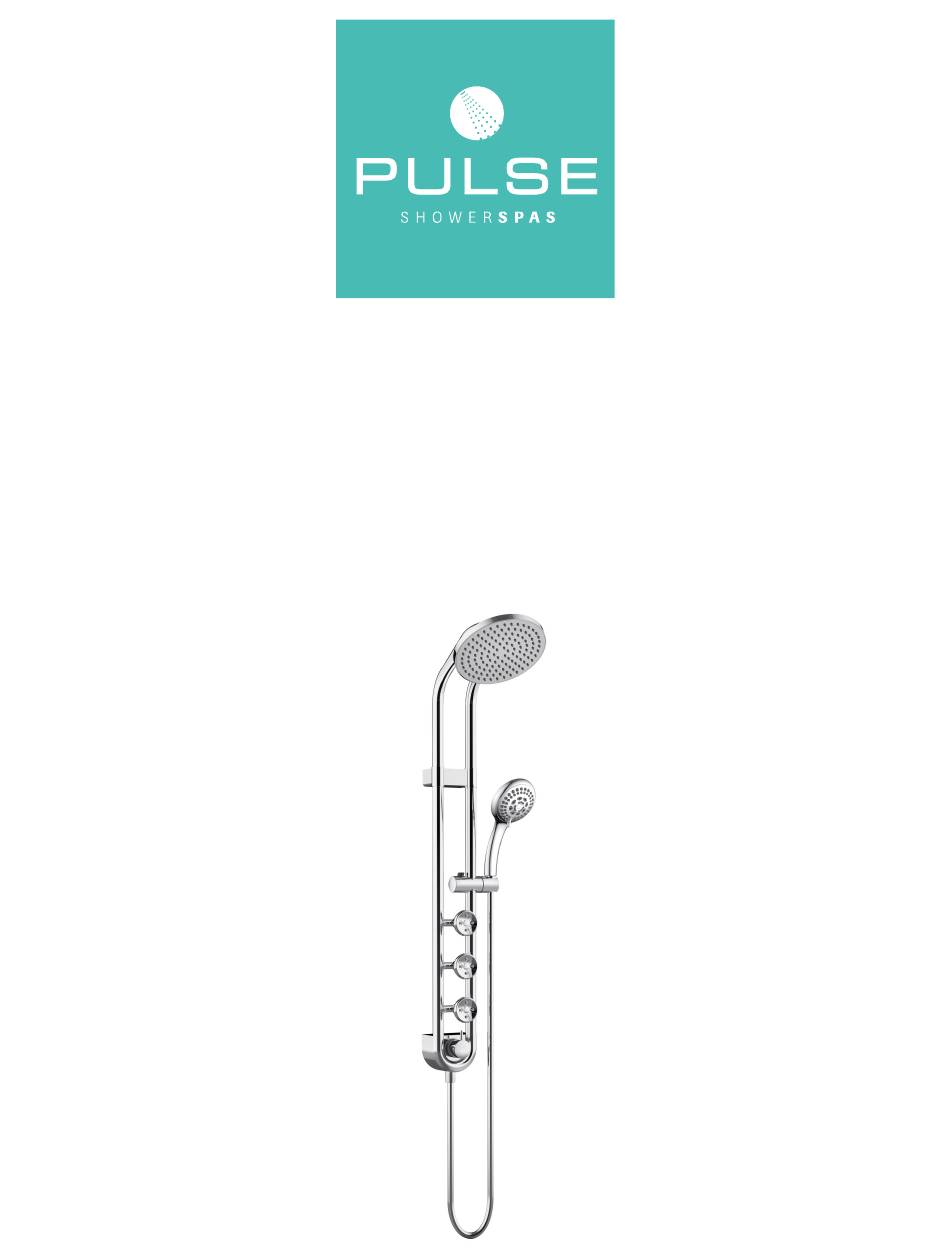

- Page 1 Saturn Shower System Système de douche Saturn Model # Modèle # 1058-CH PW-91058-7818CP & PW-91058-7825CP Owner's Manual Manuel du propriétaire...
- Page 2 Saturn Shower System/PW-91058-7818CP/PW-91058-7825CP Please Read The Following Instructions COMPLETELY Before Beginning! Veuillez lire les instructions suivantes COMPLÈTEMENT avant de commencer! Our goal is to ensure your installation goes smoothly and safely. Please read these instructions carefully and follow recommendations for plumbing and mounting. After reading instructions, if you determine you do not have the necessary skills and/or tools, we recommend that a licensed plumbing contractor complete the installation.
- Page 3 Parts Legend 1. Inlet Fitting 6. Glue 11. Handshower Holder 2. Set Screws......2 7. Lube 12. Handshower 3. Big Hex Wrench 8mm 8. Shower Arm/Riser 13. Body Jets 4. Allen Wrench 2.5/3mm 9. Showerhead 14. Diverter 5. Plumber's tape 10. Shower Body 15.
-
Page 4: Installation Instructions
Installation Instructions Instructions d’installation BEFORE YOU BEGIN AVANT QUE TU COMMENCES Measure the following to ensure your Shower System will fit properly. Mesurez ce qui suit pour vous assurer votre système de douche s’adaptera correctement. New Construction Retrofit Nouvelle construction Rénovation 14”... -
Page 5: Instructions D'installation
Installation Instructions Instructions d’installation Step 1 Étape 1 Step 2 Étape 2 Apply lube (7) on shower arm/riser (8) O-ring and connect it to shower body (10). Appliquez du lubrifiant (7) sur le joint torique de la colonne/le bras de douche (8) et connectez-le au bâti de la douche (10). - Page 6 Installation Instructions Instructions d’installation Connect shower body (10) to inlet fitting (1) and secure with Insert washer (16) into the hex end of the hand shower set screw (2). hose (15). Attach hose to handshower outlet located on the bottom of the diverter (14).
- Page 7 1. Defects Covered; Warranty Period: Pulse Shower Spas, Inc. (“Pulse”) warrants to TO PROVINCE. 1. Défauts couverts; Période de garantie: Pulse Shower Spas, Inc. (« Pulse ») garantit the original consumer purchaser who purchases this shower spa (the “Product”) for à...
- Page 8 NOTES PULSE ShowerSpas, Inc. | 297 Anna Street | Watsonville, CA 95076 | 831.724.7300 www.PulseShowerSpas.com PULSE20-REV. A...
