- Page 1 SENA For Arai Quantic Helmet QUICK START GUIDE ENGLISH 1.0.0...
-
Page 2: Downloadable Sena Software
Downloadable Sena Software Download the Sena Utility App at Google Play Store Store. Sena Utility Download the following items at sena.com. Firmware Sena Device Manager • Firmware upgrade • Device configuration setting Quick Start Guide, User’s Guide Follow us on Facebook, YouTube, Twitter and Instagram to check the latest information and helpful tips. -
Page 3: Product Details

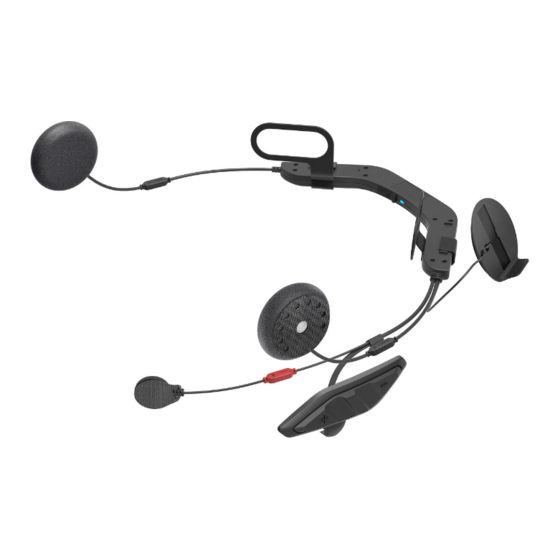

Product Details DC Power Charging & Firmware Upgrade Port Pinhole Fault Reset Button Status LED Main Unit Speakers Connectors Antenna Microphone Connector (–) Button Center Button (+) Button... -
Page 4: Installation
Installation • The ACS10 is compatible with Arai Quantic Helmets. • For more information about installation, refer to the User’s Guide. -
Page 5: Icon Legend
Icon Legend Tap button the specified Press and Hold button for the HOLD number of times specified amount of time Audible prompt “Hello” Basic Operations Powering On Powering Off HOLD Volume Up Volume Down Checking the Battery Level Powering On... -
Page 6: Phone Pairing
Phone Pairing When you initially turn on the headset: Blinking HOLD ① “ Phone Pairing” ② Select ACS10 in the list of Bluetooth devices detected. Bluetooth ACS10 Device B • For more information on phone pairing, refer to the User’s Guide. Using the Phone Answer a Call End a Call... -
Page 7: Music Control
Music Control Play/Pause HOLD Track Backward Track Forward HOLD HOLD Bluetooth Intercom Up to three other people can be paired with the headset for Bluetooth intercom conversations. Intercom Pairing There are two ways to pair the headset. - Page 8 Using the Smart Intercom Pairing (SIP) SIP allows you to quickly pair with your friends for intercom communication by scanning the QR code on the Sena Utility App without remembering the button operation. ① Pair the mobile phone with the headset.
- Page 9 Using the Button Users (You, B) enter into Intercom Pairing. ① Blinking HOLD “ Intercom Pairing” ② Tap the Center Button on either headset. Turns blue Confirms intercoms are paired ③ Repeat the steps above to pair with other headsets (C and D).
-
Page 10: Two-Way Intercom
Last-Come, First-Served If a headset has multiple paired headsets for intercom conversations, the last paired headset is set as the first intercom friend. Intercom Pairing Order Last-Come, First-Served Intercom Intercom Intercom Friend 1 Friend 2 Friend 3 Two-way Intercom Start/End Conversation with the First Intercom Friend D Start/End Conversation with the Second Intercom Friend C Start/End Conversation with the Third Intercom Friend B... -
Page 11: Configuration Menu
Configuration Menu Accessing the Configuration Menu HOLD “ Configuration Menu” Navigating Between Menu Options Execute Menu Options... -
Page 12: Troubleshooting
Troubleshooting Factory Reset HOLD ① “ Configuration menu” ② “ Factory Reset” “ Headset reset, ③ good-bye” Fault Reset Note: Fault Reset will not restore the headset to the factory default settings. -
Page 13: Quick Reference
Quick Reference TYPE OPERATION BUTTON COMMANDS HOLD Power on Power off Basic Operations Volume up/down Answer phone call HOLD End/reject phone call Mobile Phone HOLD Voice dial HOLD Play/Pause music HOLD Track forward Music HOLD Track backward HOLD Intercom pairing Intercom Start/end intercom 1.0.0_EN_June2021...
