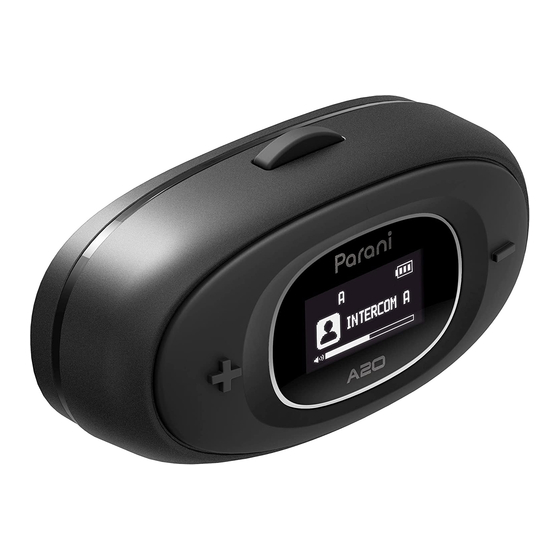

Sena Parani A20 User Manual

Sena Parani A20 User Manual

Motorcycle intercom

Advertisement

Motorcycle Intercom
USER'S GUIDE
1.2.0
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Parani A20 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sena Parani A20

  • Page 1 Motorcycle Intercom USER’S GUIDE 1.2.0 ENGLISH...
  • Page 2 PRODUCT FEATURES GETTING STARTED Blast your favorite tunes, talk over the intercom Update this product for free with the latest with your buddies, hear directions from your firmware to fully enjoy the new advanced GPS and more, all through your A20 Bluetooth features built into this product.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS BEFORE STARTING Charging the Headset Powering On and Off Product Details Adjusting the Volume Package Contents Downloadable Parani Software 3.6.1 Parani Device Manager INSTALLING THE HEADSET ON YOUR HELMET PAIRING YOUR HEADSET WITH Using the Clamp OTHER BLUETOOTH DEVICES Using the Glued Surface Mounting Phone Pairing Adapter...
  • Page 4 Speed Dialing GENERAL SETTINGS 5.2.1 Assigning Speed Dial Presets Function Priority 5.2.2 Using Speed Dial Presets Configuration Menu 8.2.1 Assigning Speed Dial STEREO MUSIC 8.2.2 Voice Prompt (Default: Enable) 8.2.3 Delete All Pairings Firmware Upgrades BLUETOOTH INTERCOM Intercom Pairing TROUBLESHOOTING Two-way Intercom Fault Reset 7.2.1 HD Intercom...
  • Page 5: Before Starting

    1.2 Package Contents 1 BEFORE STARTING • Headset Main Unit 1.1 Product Details • Clamp Multi-function Button (+) Button (-) Button • Glued Surface Mounting Adapter • Speakers and Microphone Cable • Speaker Pads (2) Speakers and Microphone Port LCD Display •...
  • Page 6: Installing The Headset On Your Helmet

    Wired Boom Microphone 2 INSTALLING THE HEADSET ON • Wired Boom Microphone YOUR HELMET • Microphone sponge (2) Before installing the headset, you need to choose between the clamp and the glued surface mounting • Hook and Loop Fastener for adapter.
  • Page 7: Using The Glued Surface Mounting Adapter

    3. Insert the speaker and microphone plug into 2. Remove the cover of the adhesive sticker the headset. on the back to glue the headset on to the helmet. 3. Attach the headset on the left side of the helmet. 2.2 Using the Glued Surface 4.
  • Page 8: Installing The Speakers

    2.3 Installing the Speakers 1. Attach the hook and loop fasteners for speakers to the ear pockets inside the helmet. 2. Attach the speakers to the hook and loop fasteners for speakers inside the helmet. Note: If the helmet has deep ear pockets, you can use the speaker pads to bring the speakers closer to your ears.
  • Page 9: Installing The Wired Boom Microphone

    2.4 Installing the Wired Boom Microphone 1. Attach the hook and loop fastener for wired boom microphone on the inside surface of the left external shell. 2. Attach the wired boom microphone’s mounting plate to the hook and loop fastener. 3.
  • Page 10: Installing The Wired Microphone

    2.5 Installing the Wired Microphone Note: If you have a full face helmet, you can use the wired • You can use the boom microphone holder after microphone. attaching the hook and loop fastener for boom microphone holder on it to ensure secure 1.
  • Page 11: Getting Started

    3. Align the arrows on the main unit and 3 GETTING STARTED microphone cables insert microphone cable into the microphone connector. 3.1 Button Tap/ Press and Hold Multi-function Button (+) Button (-) Button...
  • Page 12: Lcd Display

    • Any 3rd party USB charger can be used with The headset can be charged using many common Sena products if the charger is approved by methods via the supplied USB power & data cable. either the FCC, CE, IC or other locally approved Depending upon the charging method, the headset agencies that Sena accepts.
  • Page 13: Powering On And Off

    3.4 Powering On and Off 3.5 Adjusting the Volume You can raise or lower the volume by tapping the • To power on the headset, press and hold the (+) Button or the (-) Button. Volume is set and (+) Button and (-) Button for 1 second. maintained independently at different levels for each audio source (i.e., phone, intercom), even when the headset is rebooted.
  • Page 14: Pairing Your Headset With Other Bluetooth Devices

    4.1 Phone Pairing 4 PAIRING YOUR HEADSET There are three ways to pair the phone. WITH OTHER BLUETOOTH 4.1.1 Initially Pairing the A20 DEVICES The headset will automatically enter the phone pairing mode when you initially turn on the headset Before using the headset with other Bluetooth or in the following situations: devices for the first time, they will need to be...
  • Page 15: Pairing When The A20 Is Turned Off

    1. While the headset is off, press and hold the (+) Button and (-) Button for 5 seconds. You will hear a voice prompt, “Phone pairing”. 2. On your smartphone, search for Parani A20. 3. Enter 0000 for the PIN. Some smartphones may not ask for PIN.
  • Page 16: Pairing When The A20 Is Turned On

    “Phone pairing”. 2. Tap the (+) Button until you hear a voice prompt, “Second mobile phone pairing”. 2. On your smartphone, search for Parani A20. 3. Enter 0000 for the PIN. Some smartphones 3. On your smartphone, search for Parani A20.
  • Page 17: Mobile Phone Usage

    5 MOBILE PHONE USAGE 5.1 Using Phone Functions Incoming Call Make a Call • Answering a call Tap the Multi-function Button. • Ending a call Tap the Multi-function Button. Make a Call with Conversation • Rejecting a call Voice Dialer Press and hold the Multi-function Button for 2 seconds.
  • Page 18: Speed Dialing

    5.2 Speed Dialing 2. Tap the (+) Button or the (-) Button to navigate between the menus. You will hear 5.2.1 Assigning Speed Dial Presets prompts for each menu item. 3. Tap the Multi-function Button to select a You need to assign speed dial numbers before voice menu among the followings: using the speed dial.
  • Page 19: Stereo Music

    4. To redial the last number called, tap the 6 STEREO MUSIC Multi-function Button when you hear a voice prompt, “Last number redial”. 5. To call one of the speed dials, tap the Multi- • Play/Pause music function Button when you hear a voice Press and hold the Multi-function Button for prompt, “Speed Dial (#)”.
  • Page 20: Bluetooth Intercom

    2. Tap the Multi-function Button on either 7 BLUETOOTH INTERCOM headset and wait until the intercom connection is automatically established. Intercom Pairing The headset can be paired with up to three other headsets Bluetooth intercom Parani conversation. 3. Repeat steps 1 and 2 to pair with Intercom Friends C &...
  • Page 21: Two-Way Intercom

    7.2 Two-way Intercom Last-Come, First-Served You can start/end an intercom conversation with one of any intercom friends by tapping the Multi- function Button. Intercom Friend 1 Intercom Intercom Friend 1 Friend 2 = Tap the Multi-function Button. Intercom Friend 1 Intercom Intercom Intercom...
  • Page 22: Hd Intercom

    7.3 Multi-Way Intercom 7.2.1 HD Intercom HD Intercom enhances the two-way intercom Multi-Way Intercom enables conference-call-style audio from normal quality to HD quality. When you conversations with up to three intercom friends at enter into a Multi-Way Intercom, HD Intercom will the same time.
  • Page 23 1. You (A) need to be paired with two other 3. The second intercom friend (C) may join friends (B & C) for three-way conference the intercom by making an intercom call to intercom. you (A). Intercom Intercom Intercom Intercom Friend B Friend C Friend B...
  • Page 24: Starting A Four-Way Intercom Conference

    7.3.2 Starting a Four-Way Intercom 7.3.3 Ending Multi-Way Intercom Conference You can completely terminate the conference intercom or just disconnect an intercom connection You can have four-way conference intercom with with one of your active Intercom Friends. three other intercom friends by adding one more intercom participant to the three-way intercom.
  • Page 25: General Settings

    8.2 Configuration Menu 8 GENERAL SETTINGS You can set the configuration of the headset by the voice menu instruction described below. 1. Press and hold the Multi-function Button 8.1 Function Priority for 12 seconds until you hear a voice The headset operates in the following order of prompt, “Configuration menu”.
  • Page 26 Configuration Enable/Disable or Configuration Enable/Disable or Setting Execute Setting Execute Execute None Second Mobile Delete All Pairings Phone Pairing Execute Execute Factory Reset Speed Dial Execute Enable/Disable Exit Configuration Voice Prompt...
  • Page 27: Assigning Speed Dial

    8.2.1 Assigning Speed Dial 1. To assign a phone number as a speed dial, tap the (+) Button until you hear a voice prompt, “Speed dial”. Speed Dial 3 3. Call a phone number you want to assign and you will hear a voice prompt, “Save speed dial (#)”.
  • Page 28: Voice Prompt (Default: Enable)

    8.2.2 Voice Prompt (Default: Enable) 9 TROUBLESHOOTING You can disable voice prompts by configuration setting, but the following voice prompts are always 9.1 Fault Reset • Voice prompts for configuration setting menu When the headset is not working properly, you can •...
  • Page 29: Factory Reset

    9.2 Factory reset If you want to restore the headset to factory default settings, use the Factory Reset in the configuration menu. The headset automatically restores the default settings and turns off.
  • Page 30 Copyright © 2021 Sena Technologies, Inc. All rights reserved. © 1998–2021 Sena Technologies, Inc. All rights reserved. Sena Technologies, Inc. reserves the right to make any changes and improvements to its product without providing prior notice. 1.2.0_EN_August2021...
