Sena Parani M10 User Manual

Motorcycle intercom
Hide thumbs
Table of Contents

Advertisement

Quick Links

Motorcycle INTERCOM
USER'S GUIDE
1.3.0
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Parani M10 and is the answer not in the manual?

Questions and answers

Related Manuals for Sena Parani M10

Summary of Contents for Sena Parani M10

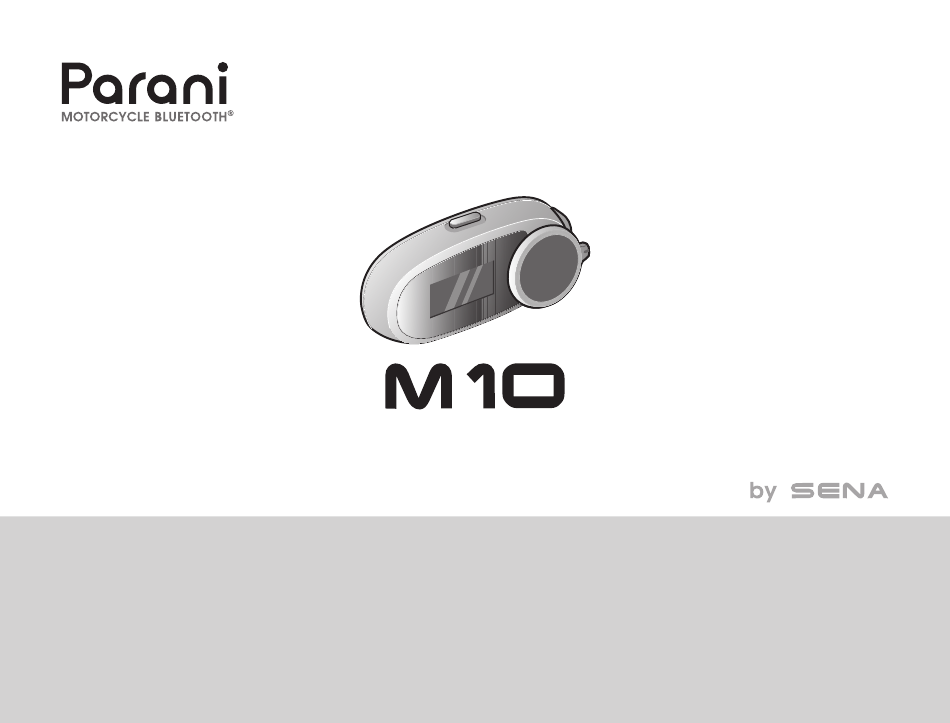

  • Page 1 Motorcycle INTERCOM USER’S GUIDE 1.3.0 ENGLISH...
  • Page 2 PRODUCT FEATURES GETTING STARTED Blast your favorite tunes, talk over the intercom Update this product for free with the latest with your buddies, hear directions from your firmware to fully enjoy the new advanced GPS and more, all through your M10 Bluetooth features built into this product.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS BEFORE STARTING Charging the Headset Powering On and Off Package Contents 1.1.1 Wired Boom Microphone Type Adjusting the Volume 1.1.2 Wired Microphone Type Downloadable Parani Software 3.6.1 Parani Device Manager INSTALLING THE HEADSET ON YOUR HELMET PAIRING YOUR HEADSET WITH Using the Clamp OTHER BLUETOOTH DEVICES Using the Glued Surface Mounting...
  • Page 4 Speed Dialing GENERAL SETTINGS 5.2.1 Assigning Speed Dial Presets Function Priority 5.2.2 Using Speed Dial Presets Configuration Menu 8.2.1 Assigning Speed Dial STEREO MUSIC 8.2.2 Voice Prompt (Default: Enable) 8.2.3 Delete All Pairings Firmware Upgrades BLUETOOTH INTERCOM Intercom Pairing TROUBLESHOOTING Two-way Intercom 7.2.1 HD Intercom Fault Reset...

  • Page 5: Before Starting

    • Speakers and 1 BEFORE STARTING Wired Boom Microphone 1.1 Package Contents Wired Boom Microphone 1.1.1 Wired Boom Microphone Type • Clamp • Headset Main Unit DC Power Charging & Firmware Upgrade Port • Glued Surface Mounting Adapter Jog Dial •...

  • Page 6: Wired Microphone Type

    1.1.2 Wired Microphone Type • Speakers and Wired Microphone • Headset Main Unit DC Power Charging & Firmware Upgrade Port Wired Microphone Jog Dial • Clamp Multi-function Button • Glued Surface Mounting Adapter • Speaker Sponge (2) LCD Display • Hook and Loop Fasteners Speakers and for Speakers (2) Microphone...

  • Page 7: Installing The Headset On Your Helmet

    2. Insert the headset into the helmet using the 2 INSTALLING THE HEADSET ON clamp. YOUR HELMET Before installing the headset, you need to choose between the clamp and the glued surface mounting adapter. To install the headset to the helmet, follow the steps below: 2.1 Using the Clamp 1.

  • Page 8: Installing The Speakers

    2.3 Installing the Speakers 2. Remove the cover of the adhesive sticker on the back to glue the headset on to the 2.3.1 Wired Boom Microphone Type helmet. If you want to install speakers into the headset, follow the steps below: 1.

  • Page 9: Wired Microphone Type

    2.3.2 Wired Microphone Type 4. Insert the Speakers and Microphone plug into the headset. If you have a full face helmet, you can use the wired microphone. 1. Remove the cover of the adhesive sticker of the hook and loop fasteners for speakers. 2.
  • Page 10 4. Peel off the cover of the hook and loop 6. Insert the Speakers and Microphone plug fastener for wired microphone to expose the into the headset. adhesive tape. Then, attach the hook and loop fastener on the inside of the helmet’s chin guard.

  • Page 11: Getting Started

    3.2 LCD Display 3 GETTING STARTED Battery Indicator Pairing Status 3.1 Button Active Function • Jog Dial Volume Bar Rotate/ 3.3 Charging the Headset Rotate while Pressing The headset can be charged using many common Tap/ methods via the supplied USB power & data cable. Press and Hold Depending upon the charging method, the headset •...

  • Page 12: Powering On And Off

    Note: Button and Jog Dial. • Any 3rd party USB charger can be used with Sena products if the charger is approved by either the FCC, CE, IC or other locally approved agencies that Sena accepts. • The headset is compatible with 5 V input USB-...

  • Page 13: Adjusting The Volume

    3.5 Adjusting the Volume 4 PAIRING YOUR HEADSET • To increase, rotate the Jog Dial counterclockwise. WITH OTHER BLUETOOTH • To decrease, rotate the Jog Dial clockwise. DEVICES 3.6 Downloadable Parani Before using the headset with other Bluetooth Software devices for the first time, they will need to be “paired.”...

  • Page 14: Phone Pairing

    • Rebooting after executing the Factory Reset 2. On your smartphone, search for Parani M10. feature; or 3. Enter 0000 for the PIN. Some smartphones may not ask for PIN.

  • Page 15: Pairing When The M10 Is Turned Off

    “Phone pairing” when the headset is headset is turned off. turned on. 2. On your smartphone, search for Parani M10. 2. On your smartphone, search for Parani M10. 3. Enter 0000 for the PIN. Some smartphones 3. Enter 0000 for the PIN. Some smartphones may not ask for PIN.

  • Page 16: Second Mobile Phone Pairing

    Jog Dial for 2 seconds. • To make a call with voice dialer, press and hold the Multi-function Button for 3 seconds. 3. On your smartphone, search for Parani M10. 4. Enter 0000 for the PIN. Some smartphones may not ask for the PIN.

  • Page 17: Speed Dialing

    5.2 Speed Dialing 2. Rotate the Jog Dial to navigate between the menus. You will hear voice prompts for each 5.2.1 Assigning Speed Dial Presets menu item. You need to assign speed dial numbers before using the speed dial. Speed Dial Presets could be LAST assigned in the configuration menu.

  • Page 18: Stereo Music

    3. To redial the last number called, tap the 6 STEREO MUSIC Multi-function Button when you hear a voice prompt, “Last number redial”. 4. To call one of the speed dials, tap the Multi- • To start/pause music, press and hold the Jog function Button when you hear a voice Dial for 1 second.

  • Page 19: Bluetooth Intercom

    2. Press and hold the Jog Dial for 5 seconds, 7 BLUETOOTH INTERCOM then you will hear a voice prompt, “Intercom pairing”. Intercom Pairing The headset can be paired with up to three other headsets Bluetooth intercom Parani conversation. 3. Simply tap the Jog Dial on any one of the two headsets A and B and intercom connection is automatically established.

  • Page 20: Two-Way Intercom

    7.2 Two-way Intercom 7.2.1 HD Intercom You can start/end an intercom conversation with HD Intercom enhances the two-way intercom one of any intercom friends by tapping the Jog audio from normal quality to HD quality. When you Dial. enter into a Multi-Way Intercom, HD Intercom will be automatically disabled.

  • Page 21: Multi-Way Intercom

    7.3 Multi-Way Intercom 1. You (A) need to be paired with two other friends (B & C) for three-way conference Multi-Way Intercom enables conference-call-style intercom. conversations with up to three intercom friends at the same time. While Multi-Way Intercom is in progress, mobile phone connection is temporarily disconnected.

  • Page 22: End Three-Way Intercom

    7.3.2 End Three-way Intercom 3. The second intercom friend (C) may join the intercom by making an intercom call to you When you are a member of an active three-way (A). conference intercom, you can completely terminate the conference intercom or just disconnect an intercom connection with one of your active intercom friends.

  • Page 23: Start Four-Way Intercom

    7.3.3 Start Four-way Intercom Jog Dial Result You can have four-way conference intercom with Press and hold for 1" Disconnect (B) & (C) three other intercom friends by adding one more intercom participant to the three-way intercom. Single tap Disconnect (B) While you are having three-way intercom as above Double tap Disconnect (C)

  • Page 24: End Four-Way Intercom

    7.3.4 End Four-way Intercom Jog Dial Result As in the case of three-way intercom, you can Disconnect (B), (C) completely exit from the four-way conference Press and hold for 1" & (D) intercom or just disconnect a single intercom connection. Single tap Disconnect (B) 1.

  • Page 25: General Settings

    8.2 Configuration Menu 8 GENERAL SETTINGS You can set the configuration of the headset by the voice menu instruction described below. 1. Press and hold the Multi-function Button 8.1 Function Priority for 12 seconds until you hear a voice The headset operates in the following order of prompt, “Configuration menu”.
  • Page 26 Configuration Enable/Disable or Configuration Enable/Disable or Setting Execute Setting Execute Execute Execute Speed Dial Factory Reset Enable/Disable Execute Voice Prompt Exit Configuration Execute Delete All Pairings...

  • Page 27: Assigning Speed Dial

    8.2.1 Assigning Speed Dial 2. Tap the Multi-function Button, and you will hear a voice prompt, “Speed dial one” and 1. To assign a phone number as a speed dial, “Phone connected”. rotate the Jog Dial until you hear a voice Rotate the Jog Dial to select one of three prompt, “Speed dial”.

  • Page 28: Voice Prompt (Default: Enable)

    8.2.2 Voice Prompt (Default: Enable) 3. Call a phone number you want to assign and you will hear a voice prompt, “Save You can disable voice prompts by configuration speed dial (#)”. The phone number is setting, but the following voice prompts are always automatically assigned to the selected speed dial number.

  • Page 29: Troubleshooting

    9 TROUBLESHOOTING 9.1 Fault Reset If the M10 is not working properly for any reason, connect it to a USB cable. The M10 will automatically be turned off and a fault reset will occur. 9.2 Factory reset If you want to restore the headset to factory default settings, use the Factory Reset in the configuration menu.
  • Page 30 Copyright © 2021 Sena Technologies, Inc. All rights reserved. © 1998–2021 Sena Technologies, Inc. All rights reserved. Sena Technologies, Inc. reserves the right to make any changes and improvements to its product without providing prior notice. 1.3.0_EN_May2021...
