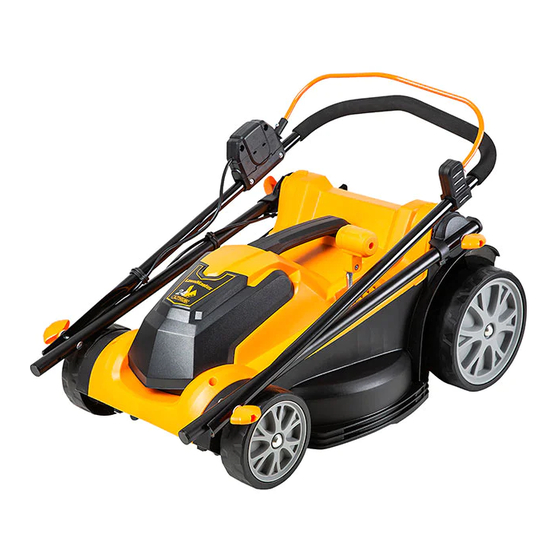

LawnMaster CLMF2437G Instruction Manual

37cm 24v lithium-ion cordless mower
Hide thumbs Also See for CLMF2437G:
Table of Contents

Advertisement

Quick Links

Instruction Manual
37cm 24V Lithium-Ion Cordless Mower CLMF2437G
Original Instructions
WARNING:
Read all safety instructions carefully before assembling and operating
this machine. Ensure the machine has been assembled correctly and safely. Keep the
instructions safe and pass them on to any subsequent user so that the information is always
available.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLMF2437G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LawnMaster CLMF2437G

Summary of Contents for LawnMaster CLMF2437G

  • Page 1 Instruction Manual 37cm 24V Lithium-Ion Cordless Mower CLMF2437G Original Instructions WARNING: Read all safety instructions carefully before assembling and operating this machine. Ensure the machine has been assembled correctly and safely. Keep the instructions safe and pass them on to any subsequent user so that the information is always...
  • Page 3 ① ② Fig.1 Fig.2 Fig.4 Fig.3...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS Section Page Symbols Safety Information 7-16 In the Box Assembly 17-19 Operation 20-24 Maintenance 25-27 Troubleshooting 28-29 Technical data Recycling and Disposal...

  • Page 6: Symbols

    SYMBOLS The following warning symbols appear throughout this manual and indicate the appropriate safety measures you should take when operating and maintaining the appliance. SYMBOL DESIGNATION/EXPLANATION Caution Read instruction manual. Keep bystanders away. Beware of sharp blades. Blades may continue to rotate after the motor is switched off.

  • Page 7: Safety Information

    SAFETY INFORMATION IMPORTANT When using equipment, the following safety precautions must be followed to avoid injuries and damage: ■ Read all operating instructions carefully and comply with them. It is important to understand these instructions and to acquaint yourself with the machine, its correct usage and all safety requirements.
  • Page 8 SAFETY INFORMATION ■ Never operate the machine while people, especially children, or pets are nearby. ■ Use extreme care when approaching blind corners, doorways, shrubs, trees, or other objects that may obscure your view of a child or animal that may run into the path of the mower.
  • Page 9 SAFETY INFORMATION ■ Mow across the face of slopes, never up and down. ■ Exercise extreme caution when changing direction on slopes. ■ Use extreme caution when reversing or pulling the mower towards you. ■ Stay Alert: Do not operate the mower when you are tired. Pay attention to what you are doing.
  • Page 10 SAFETY INFORMATION ■ Do not carry the machine with your finger on the switch. ■ Do not overreach. Keep proper footing and balance at all times. ■ Do not use a machine if the switch does not turn it on and off.
  • Page 11 SAFETY INFORMATION handle immediately. ■ Do not use the mower for any job except that for which it is intended. Do not force the mower. ■ Do not attempt to adjust the wheels or the cutting height while the motor is running. ■...
  • Page 12 SAFETY INFORMATION mower is not in use. This prevents accidental starting of the machine. ■ Replace worn or damaged parts for safety. Use only genuine replacement parts and accessories. ■ Always be alert when using the machine, so that you can recognise and handle risks early.
  • Page 13 SAFETY INFORMATION Battery Safety Information ■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the battery.
  • Page 14 SAFETY INFORMATION minutes, then seek immediate medical attention. ■ When the battery pack is not in use, keep it away from other metal objects like: paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another.
  • Page 15 SAFETY INFORMATION agent of the same or a fully qualified person in order to prevent hazards. ■ The plug of the charger must match the outlet. Never modify the plug in any way. Unmodified plugs and matching outlets will reduce the risk of electric shock. ■...

  • Page 16: In The Box

    SAFETY INFORMATION ■ This product is intended for private domestic use only, not for any commercial trade use. It must not be used for any purposes other than those described. Any use of the machine that deviates from its intended use will invalidate the warranty.

  • Page 17: Assembly

    ASSEMBLY Assembly Preparation ■ Carefully remove all contents from the product packaging. ■ Ensure you have all the accessories and tool(s) needed for assembly and operation. This also includes suitable personal protective equipment. WARNING If any parts are damaged or missing do not operate this product until the parts are replaced. Failure to pay attention to this warning could result in serious personal injury.
  • Page 18 ASSEMBLY Assembling the Grass Collection Bag (See Figs. 3-4) ■ Check the collection bag before assembling to make sure there is no damage. ■ Slide the 2 ends of the grass collection bag frame into the 2 channels found on the grass collection bag cover until they are completely seated.
  • Page 19 ASSEMBLY NOTE: The mulching plug MUST be removed if collection bag is used during mowing operation. This mulching plug prevents grass from being collected by blocking the collection chute. This allows the grass clippings to be deposited back on the lawn during cutting. This finely cut grass acts as a nutrient for the lawn.

  • Page 20: Operation

    OPERATION WARNING Do not allow familiarity with this type of product to make you careless. Always pay attention when operating this product, not doing so can result in serious injury. WARNING Always wear safety goggles or safety glasses with side shields when operating this product. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury.
  • Page 21 OPERATION To set the cutting height: ■ To raise the cutting height, grasp the cutting height adjustment lever, disengage the lever from its current setting, and then move it towards the back of the mower and engage the lever in the desired cutting height position (Fig.
  • Page 22 OPERATION Charger Operation (See Fig. 13) WARNING Use only with 24LB4005-C battery approved by the manufacturer. If any part of the charger is missing or damaged, do not operate it! Replace the charger with a new one. Failure to pay attention to this warning could result in possible serious injury. Check the voltage! The voltage must comply with the information on the rating label.
  • Page 23 OPERATION the battery pack. If the LED status repeats a second time, try to charge another identical battery. If the battery charges normally, dispose of the defective battery pack (see Recycling and Disposal section). If the flashing red light continues after installing the second battery (ensure the battery temperature is normal), the charger may be defective.
  • Page 24 OPERATION ■ Double check that the blade is properly installed. ■ Always hold the product by its operation handles. Keep handles dry to ensure safe support. ■ Ensure that air vents are always unobstructed and clear. Clean them if necessary with a soft brush.

  • Page 25: Maintenance

    MAINTENANCE WARNING If a part becomes worn or damaged, use recommended manufacturers replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING Always switch the product off, remove the isolator key and the battery pack and let the product cool down before performing inspection, maintenance and cleaning work! WARNING Do not use any attachments or accessories not recommended by the manufacturer of this product.
  • Page 26 MAINTENANCE ■ Stop the motor and allow the blade to come to a complete stop. ■ With blade stopped, remove the ISOLATOR KEY and BATTERY from mower and store in a safe location. ■ Remove the grass collection bag from mower if attached. ■...
  • Page 27 MAINTENANCE ■ Place the centre hole of blade on the screwdriver (or nail) (Fig. 21). ■ If blade is balanced, it will remain in a horizontal position. If either end of the blade drops downward, sharpen the heavy side until the blade is balanced. Storing the Mower (See Fig.

  • Page 28: Troubleshooting

    TROUBLESHOOTING WARNING Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by a qualified specialist. Gloves and appropriate protective clothing must be worn when performing these instructions. Always turn off the machine and remove the battery pack and isolator key before making any adjustment.
  • Page 29 TROUBLESHOOTING Cut long grass down in stages The mowing conditions are not by gradually lowering the height optimal. Poor collection performance. of cut. Wait for wet grass to dry. Mulching plug is inside Remove the mulching plug. collection chute. Increase the height of cut and Height of cut is too low.

  • Page 30: Technical Data

    TECHNICAL DATA 24V Cordless Mower CLMF2437G Voltage No Load Speed 3200-3300-3500/min Cutting Width 37cm Cutting Height Adjustment 22/32/42/52/62/72mm (6 Positions) Grass Collection Bag Capacity Functions Mulch, Rear Bag Wheel Size 140/200mm Protection Type IPX1 Sound Pressure Level (L 86.2dB(A) K=3dB...

  • Page 31: Recycling And Disposal

    RECYCLING AND DISPOSAL This marking indicates that this product should not be disposed with other household wastes. The machine must be delivered in rigid packaging to avoid damage during transportation. The packaging and the machine itself are manufactured from recyclable materials and should be disposed of accordingly.
  • Page 33 Fig.5 Fig.6 Fig.7 Ⅱ Ⅰ Fig.11 Fig.10 Fig.8 Fig.9 Fig.12 Fig.13 Fig.14 Ⅱ Ⅰ Fig.15 Fig.16 Fig.17 Fig.19 Fig.20 Fig.18 Fig.21 Fig.22...
  • Page 35 CLMF2437G Suzhou Cleva Electric Appliance Co. Ltd No.8 Ting Rong Street Suzhou Industrial Park, Suzhou Jiangsu Province, China www.cleva-europe.com Made in P.R.C...
