Entellisys Low Voltage Switchgear
Chapter 4. Equipment Installation
All bolted bus joints should be made using the proper torque
as shown in Table A-1 in Appendix A of this manual.
Transformers not manufactured by General Electric may
require special mounting and bus connection hardware.
The neutral bus may be insulated from the grounded frame of
the switchgear equipment; thus, it is mounted on insulators
throughout the equipment. Installation of the neutral bus
splice plate across a shipping split is similar to the ground
bar splice except that the splice plate is not bolted to the
equipment frame. Fig. 4-11 illustrates the installation of the
neutral splice plate.

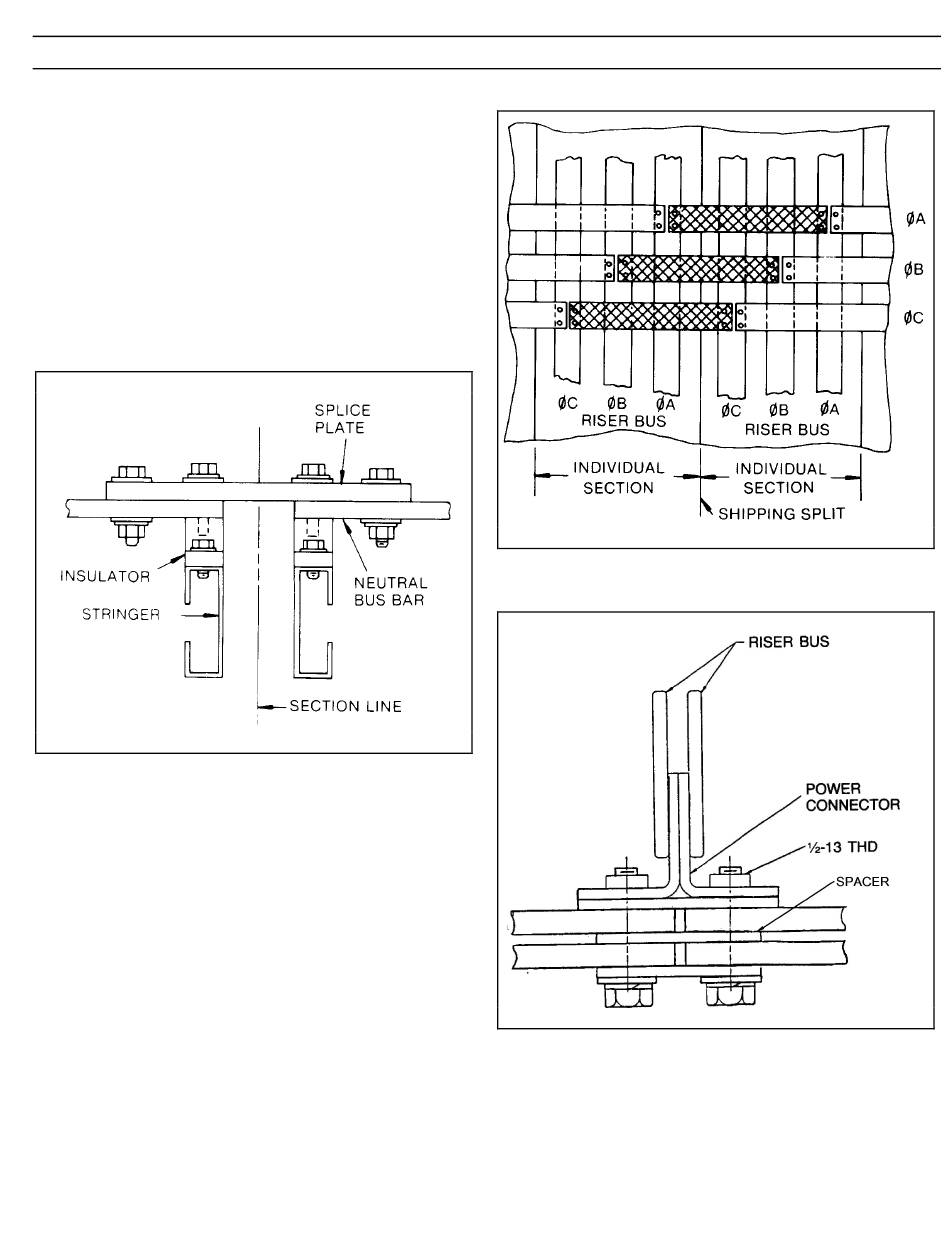

Fig. 4-12. Rear view of main bus at a shipping split
Fig. 4-11. Plan view of neutral bus splice installation
The installation of the horizontal bus splice bars is with
bolted joints.
Figs. 4-12 and 4-13 illustrate the assembly of the main bus
splice plates on the bolted bus system. Copper bus systems
are normally supplied with flat washers and lock washers.
Fig. 4-12 shows the rear view of the main bus area with the
installed splice bus indicated with cross-hatching.
Fig. 4-13 shows that a spacer is used both between the
busbars when more than one bar is used per phase (normally
the 2500 ampere and larger main bus ratings) and over the
Fig. 4-13. Plan view of a two bar main bus connection
outer bars of a single or multiple bar joint.
After assembly of the splice plates and spacers, the 1/2-13
bolts should be tightened to a torque of 35-40 ft-lbs.
