Chapter 3. Description

3-1 General

This section contains a description of the General Electric
Entellisys Low Voltage Switchgear.
functions of the electrical and mechanical systems.

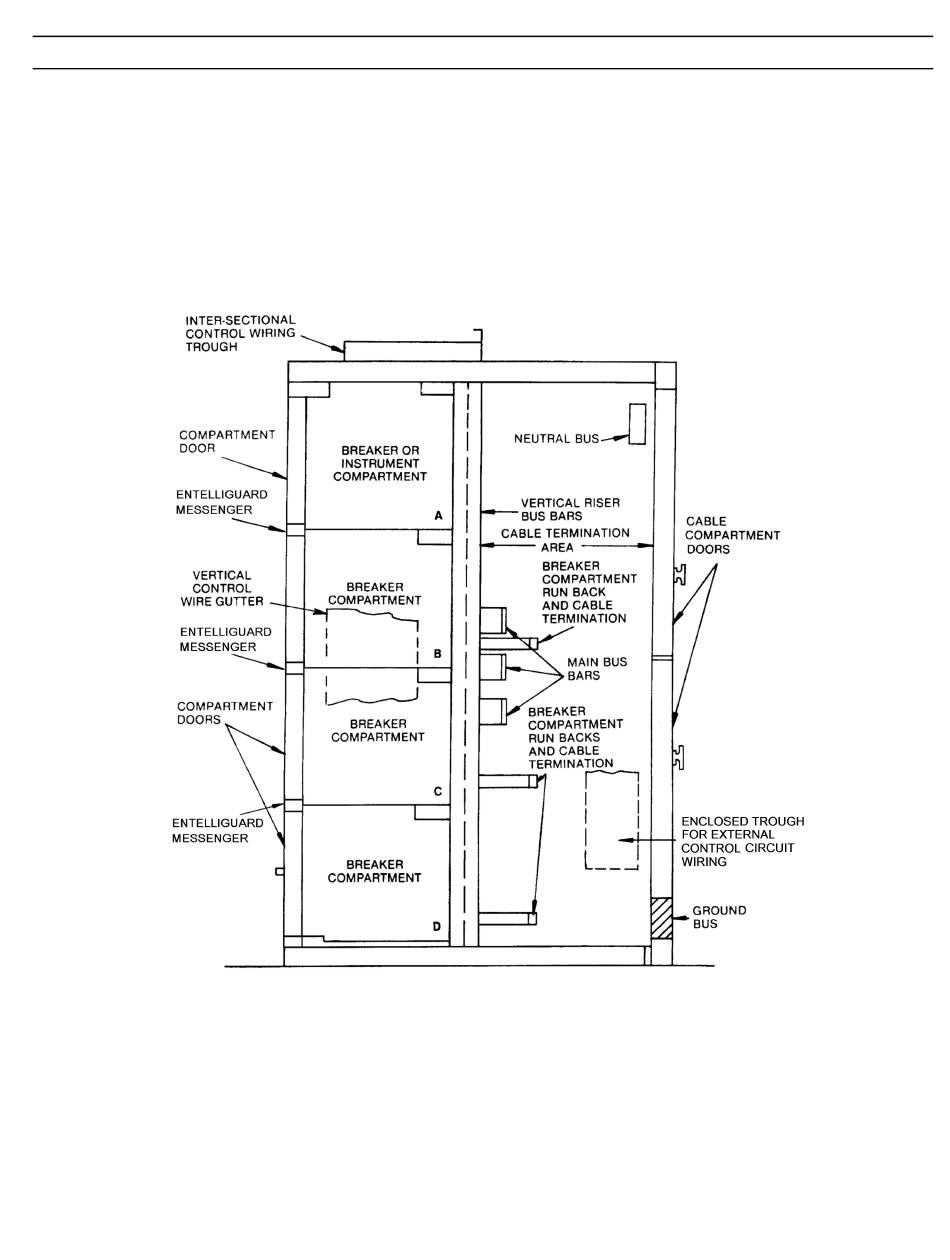

Fig. 3-1 is a side view of a typical section showing
compartmentalization.

3-2 Summary Description

General Electric Entellisys Low Voltage Switchgear is a
It also describes the freestanding assembly of metal-enclosed sections containing
low-voltage
termination provisions, and Entellisys instrumentation. It
may also be an integral part of a load center unit substation,
either single-ended or double-ended.
Fig. 3-1. Side-view of Entellisys Switchgear
8
power circuit breakers, bus bars, cable
