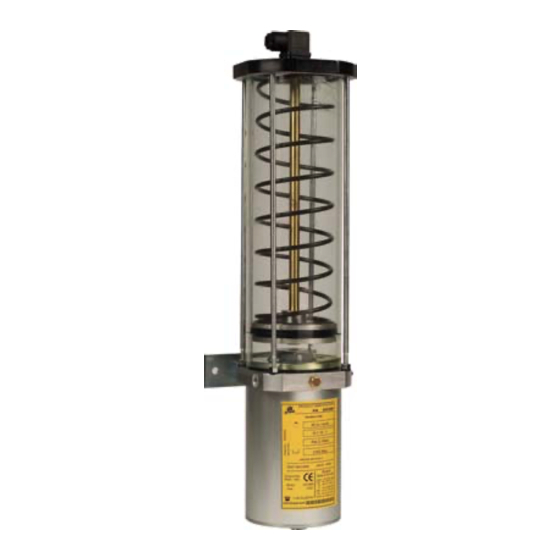

PNEUMATICALLY
OPERATED PUMP
Type 201000
User and
Maintenance Manual
Warranty information

TABLE OF CONTENTS

1.
2.
3.
PRODUCT - MACHINE IDENTIFICATION
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
HANDLING AND TRASPORTATION
14.
15.
16.
WARRANTY INFORMATION
17.
18.
Manufacturer
Product
Year
Certification
Manual drafted in compliance with
EC Directive 98/37, Annex I, Paragraph 1.7.4
DropsA SpA
201000
Pneumatically operated pump
1999
C2013IE - WK 32/03
