Azbil C6097A User Manual

CP-UM-6001E
Pressure Switch
Model C6097A
User's Manual
Thank you for purchasing an Azbil Corporation product.
This manual contains information for ensuring the correct use
of this product.
This manual should be read by those who design and main-
tain equipment that uses this product.
Be sure to keep this manual nearby for handy reference.
Please read "Terms and Conditions" from the following URL
before ordering and use.
https://www.azbil.com/products/factory/order.html
NOTICE
Be sure that the user receives this manual before the product is used.
Copying or duplicating this user's manual in part or in whole is
forbidden. The information and specifications in this manual are
subject to change without notice.
Considerable effort has been made to ensure that this manual is
free from inaccuracies and omissions. If you should find an error or
omission, please contact the azbil Group.
In no event is Azbil Corporation liable to anyone for any indirect,
special or consequential damages as a result of using this product.
© 2022 Azbil Corporation. All Rights Reserved.
SAFETY PRECAUTIONS
Safety precautions are for ensuring safe and correct use of
this product, and for preventing injury to the operator and
other people or damage to property. You must observe these
safety precautions. Also, be sure to read and understand the
contents of this user's manual.
z
Key to symbols
WARNING
Warnings are indicated when mishandling this product
might result in death or serious injury to the user.
CAUTION
Cautions are indicated when mishandling this product
might result in minor injury to the user, or only physi-
cal damage to this product.
This device is equipped with functions that are ex-
tremely important for the safe operation of combustion
equipment.
Before removing, mounting, or wiring the C6097A, be
sure to turn off the power to the C6097A and all con-
nected devices. Failure to do so might cause electric
shock.
Do not disassemble this device. Doing so could result in
faulty operation, damage, or electric shock.
The installation, wiring, adjustment, inspection, and
maintenance of this device should be carried out only
by a trained and experienced technician who has knowl-
edge and technical skills related to combustion equip-
ment and flame safeguard control equipment.
Do not use this device for any fluid other than natural
gas, liquefied petroleum gas and air. If it is used for some
other gas, the switching function may be degraded due
to corrosion of metal or deterioration of rubber.
To prepare for device failure or if an unsafe situation
might occur, consider having a fail-safe design for the
equipment as a whole, or use a redundant design. In the
event that this device fails, the ON/OFF status of its elec-
trical output may continue.
If the diaphragm is somehow damaged while this switch
is being used with a combustible gas, gas will leak from
the low-pressure port but the leakage will be limited by
the 0.8 mm internal orifice. Depending on the ventilation
in the installation location, it is recommended for safety's
sake to connect an exhaust pipe to the low-pressure port
to vent gas to a safe place.
CONVENTIONS USED IN THIS MANUAL
The following conventions are used in this manual:
Handling Precautions:
Handling Precautions indicate items that the user should pay
attention to when handling the C6097A.
(1), (2), (3):
Numbers within parentheses indicate steps in a sequence or
parts of an explanation.

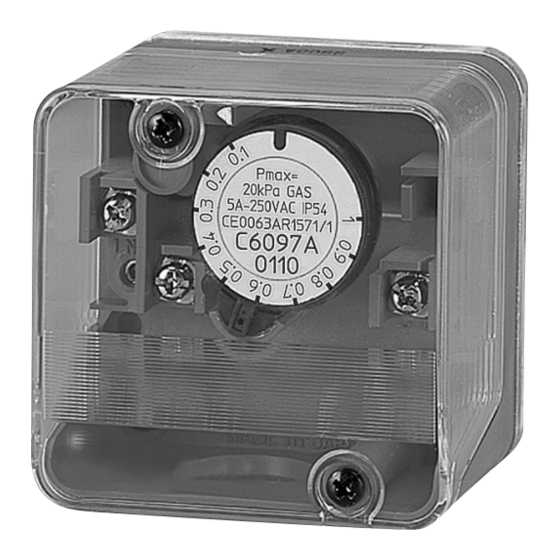

The C6097A can be used to detect the pressure of natural gas, LP
gas, and air.
This switch has a wide range of uses, such as detecting the upper or
lower limit pressure of gas or air being supplied to a gas burner, or
burner blower interlock, or a clogged filter.
„ Features
•
Lightweight and compact.
•
Can be installed either vertically or horizontally. For details,
"Installation orientation" in the "SPECIFICATIONS" section
on page 3.
•
Can be used for differential and negative pressures (air only).
•
Easy pressure setting and transparent cover for easy viewing
•
This product conforms to CE standards. (EN1854,
EN60730-2-6)
1
WARNING
CAUTION
OVERVIEW
