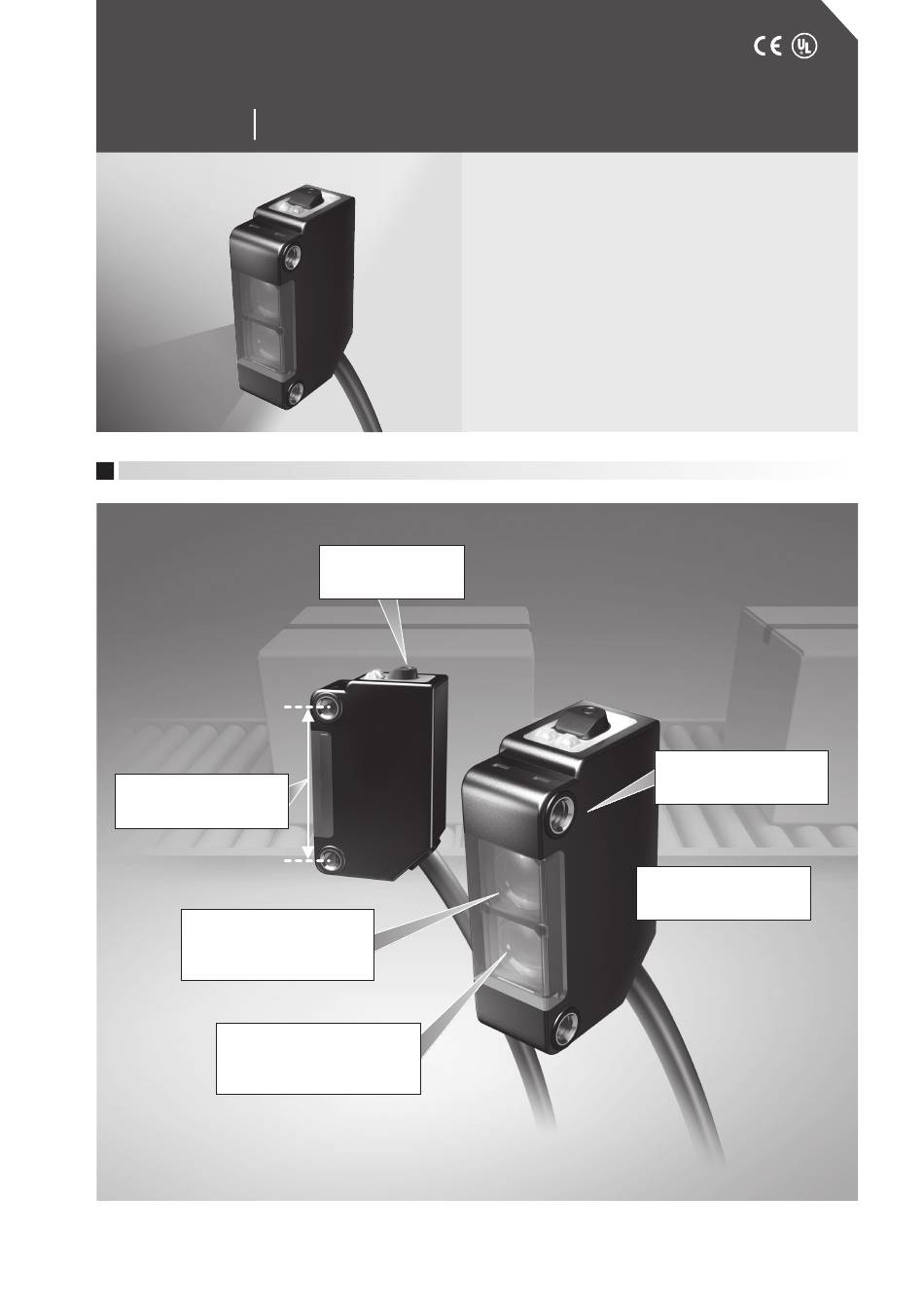

General-Purpose Photoelectric
Switches with Self-Contained Amplifier
HP7
Series
EXPLANATION OF MAJOR FUNCTIONS AND FEATURES
Industry-standard mounting
pitch of 25.4 mm
4-element LED
for high visibility
and long service life
Lens is highly resistant to
oil and chemicals
(thru-scan, retroreflective models)
Wide range of configurations and
specifications
Improved resistance to interference
(e.g., fluorescent lights)
Threaded metal mounting holes for more
reliable installation
Different frequency thru-scan model for
stress-free installation
Auto Adjust button for situations where
detection is difficult
The HP7-C1 series has been added to
the product portfolio for the detection of
transparent objects.
Problem-solving
Auto Adjust button
1
Metal threads
for secure tightening
Mutual interference
prevention function

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HP7 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Azbil HP7 Series

  • Page 1 General-Purpose Photoelectric Switches with Self-Contained Amplifier Series Wide range of configurations and specifications Improved resistance to interference (e.g., fluorescent lights) Threaded metal mounting holes for more reliable installation Different frequency thru-scan model for stress-free installation Auto Adjust button for situations where detection is difficult The HP7-C1 series has been added to the product portfolio for the detection of...
  • Page 2: Interference Suppression

    Reflector model Long-range diffuse-scan model Light-operated indicator *2. In tests conducted by the azbil Group. Secure operating margin over a long distance High-intensity red LED Excellent resistance to sunlight Due to high-intensity four-element LED, light spot is easy to be Switches are designed to provide a high level of resistance to recognized, helping to save time during light axis adjustment.
  • Page 3: Catalog Listings

    CATALOG LISTINGS Base model number Connection: 2 m cable Different- Different-frequency Detection method / Configulation Detection range / Light source Catalog listing Output Wiring method frequency model No. Output HP7-T41 HP7-T45 cable 30 m / Infrared HP7-T42 HP7-T46 cable HP7-T11 HP7-T15 cable 15 m / Red...
  • Page 4 ACCESSORIES Name Configuration Description Catalog listing Compatible model Reflector size FE-RR22 HP7-P_ 47 x 47 mm (Scanning distance 0.05 to 5 m) FE-RR18 Reflector size HP7-P_ 30.8 x 30.8 mm (Scanning distance 0.05 to 3.3 m) *3 *4 FE-RR21 Reflector size Scanning distance: horiz.
  • Page 5: Specifications

    SPECIFICATIONS HP7-T11 (Red) HP7-P51 HP7-P11 HP7-T51 HP7-T41 HP7-A13 HP7-A43 HP7-D23 HP7-D63 HP7-C11S Catalog HP7-T21 (Infrared) listing HP7-T12 (Red) HP7-P52 HP7-P12 HP7-T52 HP7-T42 HP7-A14 HP7-A44 HP7-D24 HP7-D64 HP7-C12S HP7-T22 (Infrared) Detection Retroreflective transparent Thru-scan Diffuse-scan Retroreflective object detection method Power supply 10.2 to 26.4 Vdc (Ripple 10% max.) Power 25 mA max.
  • Page 6: Characteristics Diagrams

    CHARACTERISTICS DIAGRAMS (typical examples) Thru-scan models (HP7-T1_/T2_/T5_) (Light received over the required amount) Excess gain HP7-T1_/T2_ slit mounted HP-SV / SH20 (Emitter and receptor) HP7-T1_ / T2_ HP7-T4_ HP-SV / SH10 HP7-T5_ HP-SV / SH05 10000 10000 10000 1000 1000 1000 Distance (m) Distance (m)
  • Page 7 Retroreflective models (HP7-P1_ ) Excess gain Parallel FE-RR8 / FE-RR21 FE-RR8 / FE-RR22 FE-RR21 horizontal FE-RR22 FE-RR15 / FE-RR18 FE-RR21 vertical displacement FE-RR21 / FE-RR23 FE-RR15 / FE-RR18 FE-RR23 horizontal vertical FE-RR23 FE-RR23 vertical FE-RR21 / FE-RR23 horizontal −20 −40 −60 −80 −100...
  • Page 8: Connector Part

    Pleleaded and M12 pleleaded connector types Retroreflective / Retroreflective transparent Thru-scan emitter Thru-scan receiver object detection model / Diffuse-scan Output indicator Operation button Output indicator Operation button Power supply indicator Stability indicator Stability indicator 10.8 10.4 Receiver Light axis of emitter Light axis of receiver M3 threaded thru hole (2)
  • Page 9 Slit HP-SV_ _ HP-SH_ _ Light source switch Catalog listing Width (mm) Height (mm) HP-SV05 HP-SV10 HP-SV20 HP-SH05 HP-SH10 (20) HP-SH20 Filter Polarizing direction: Polarizing direction: vertical horizontal Stainless steel spring plate Polarizing filter Reflector (Sold separately) FE-RR8 FE-RR15 FE-RR18 Acrylic resin (Transparent) Reflecting area 35.05...
  • Page 10 Bracket (sold separately) Button-mounting Button-mounting L-bracket (HP-B08) L-bracket (HP-B09) Light source switch Light source switch Center of M3 threaded Center of M3 threaded light axis thru-hole (2) light axis thru-hole (2) 3.3 dia. hole (4) SUS304 =1.2 SUS304 =1.2 25.4 15.4 Rear-mounting Wraparound vertical...
  • Page 11 The operation method Tuning without a workpiece 2-point tuning After light axis adjustment, if target objects cannot be reliably If target objects cannot be reliably detected even after tuning without detected at the factory default sensitivity (maximum sensitivity), a workpiece, adjust as shown below. adjust according to the instructions below.
  • Page 12 Position tuning When confused, or to restore the default setting (max. sensitivity) For diffuse-scan detection at any desired specific position, use position tuning. (The positioning accuracy is 15 % at maximum.) If you wish to restore the factory default sensitivity, or if you lose track of your progress while making adjustments, do the following to restore the factory default from any flashing status.
  • Page 13 CONNECTOR WITH CABLE PA5 Series cable Be sure to use a PA5 Series connector with cable when connecting a preleaded connector or connector-type switch. PA5 Series connector with cable Shape Power supply Cable properties Cable length Catalog Lead colors PA5-4I SX2SK 1: brown, 2: white, 3: blue, 4: black Vinyl-insulated cable PA5-4I SX5SK...
  • Page 14 Retroreflective transparent object detection Tips for using the HP7-C retroreflective transparent object detection model Reflector Use the switch in combination with the specified reflector. Detectable objects Objects should block 10 % or more of the light. Setup method After adjusting the light axis, tune without a workpiece (not using a target object). The switch will be automatically set to the optimum sensitivity for detecting transparent objects.
  • Page 15: Handling Precautions

    HANDLING Warning Designed for general industrial use, not for safety equipment. Do not connect this device to AC power. Doing so might cause rupture or burnout. Handling precautions Wiring precautions • • If a cable extension is necessary, use wire at least 0.3 mm Tighten the mounting screws to a maximum torque of 0.8 N·m.
