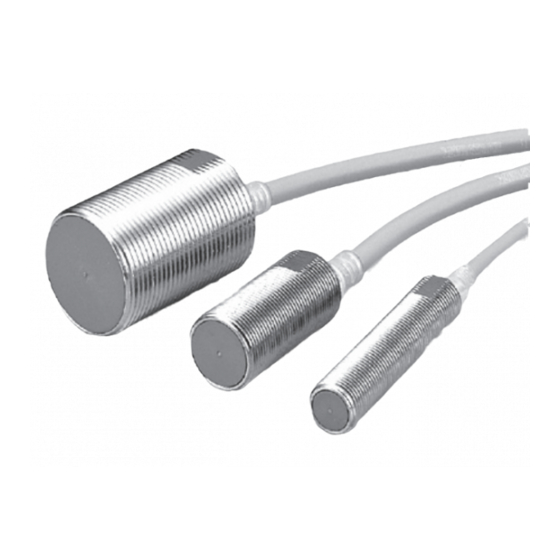

AC/DC2-wire Type Cylindrical
Proximity Switches
FL7M
No-polarity 2-wire general-purpose switches are easy to use.
Series

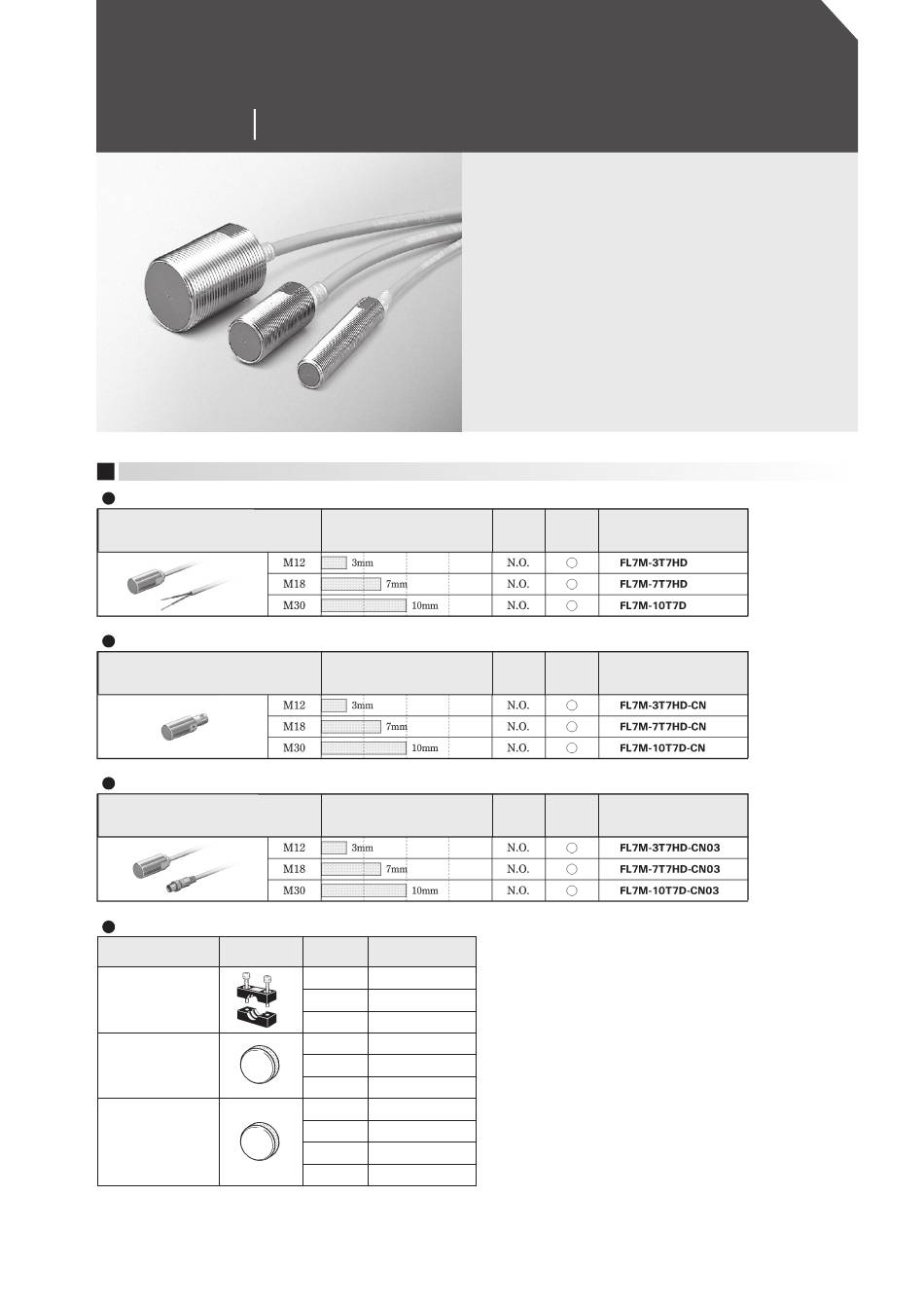

ORDER GUIDE
Standard (pre-leaded) type (2 m cable)
Exterior
Connector type
Exterior
Pre-leaded connector type (30 cm cable)
Exterior
Accessories (sold separately)
Name
Appearance
Mounting bracket
Protective cover
Spatter-guarded
protective cover
� 2-wire type for both AC and DC greatly reduces wiring man-hours
� Stable sensing area displayed by setting indicator (green/red LED)
� Indicator lamp can be seen even from the rear
� Compact and space-saving
� Sealed to IP67
� Enhanced circuit protection (surge absorption, load short-circuit)
Sensing distance
Sensing distance
Sensing distance
O.D.
Catalog listing
For M12
FL-PA112
For M18
FL-PA118
For M30
FL-PA130
For M12
FL-PA12
For M18
FL-PA18
For M30
FL-PA30
FL-PA08W
For M08
FL-PA12W
For M12
FL-PA18W
For M18
For M30
FL-PA30W
1
(preleaded and preleaded connector types)
Operation
Setting
Catalog listing
mode
indicator
Operation
Setting
Catalog listing
mode
indicator
Operation
Setting
Catalog listing
mode
indicator
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Azbil FL7M Series
Summary of Contents for Azbil FL7M Series
- Page 1 AC/DC2-wire Type Cylindrical Proximity Switches FL7M No-polarity 2-wire general-purpose switches are easy to use. Series � 2-wire type for both AC and DC greatly reduces wiring man-hours � Stable sensing area displayed by setting indicator (green/red LED) � Indicator lamp can be seen even from the rear (preleaded and preleaded connector types) �...
-
Page 2: Specifications
SPECIFICATIONS FL7M-3T7HD(-CN,-CN03) FL7M-7T7HD(-CN,-CN03) FL7M-10T7D(-CN,-CN03) 10±1 mm 0 to 2.1 mm 0 to 4.9 mm 0 to 7 mm 10% max. of sensing distance 40 to 250 Vac, 20 to 250 Vdc When AC power supply is used 25Hz When AC power supply is used 25Hz When AC power supply is used 25Hz When DC power supply is used 1 KHz When DC power supply is used 500 Hz... -
Page 3: Sensing Area
SENSING AREA (typical) FL7M FL7M FL7M SENSING DISTANCE ACCORDING TO MATERIAL & SIZE OF OBJECT (typical) FL7M-3T7H FL7M-7T7H FL7M-10T7 Iron Iron Iron Stainless steel Stainless steel (SUS304) (SUS304) Stainless steel (SUS304) Brass Brass Brass Aluminum Aluminum Aluminum Copper Copper Copper Size d of one side of target object (mm) Size d of one side of target object (mm) Size d of one side of target object (mm) -
Page 4: External Dimensions
EXTERNAL DIMENSIONS (unit: mm) Standard (preleaded) type Hexagonal Toothed Hexagonal nut Toothed washer washer Indicator Indicator lamp lamp Vinyl-insulated cable (PVC) Vinyl-insulated cable (PVC) 2000 min. 2000 min. Vinyl-insulated cable (oil-resistant: 0.3 mm , 60/0.08 dia., 2-core) Vinyl-insulated cable (oil-resistant: 0.5 mm , 45/0.12 dia., 2-core) dia. -
Page 5: Mounting Bracket
Preleaded connector type (unit: mm) Toothed washer Hexagonal nut Toothed washer Hexagonal nut Indicator Indicator lamp lamp Vinyl-insulated cable (PVC) Vinyl-insulated cable (PVC) 300 min. 300 min. Vinyl-insulated cable (oil-resistant: 0.3 mm , 60/0.08 dia., 2-core) dia. 4. Cap color: orange. Vinyl-insulated cable (oil-resistant: 0.5 mm , 45/0.12 dia., 2-core) dia. -
Page 6: Wiring Diagrams
Housing: Polyester elastomer Coupling: Ni-plated brass O-ring: NBR Note 1: Specifications assume Azbil male/female connectors. Note 2: The recommended torque is 0.4 to 0.6 N-m. If fastened poorly, the IP67 protection is lost, or looseness occurs. Fasten the connector securely by hand. -
Page 7: Precautions For Use
CABLE WITH CONNECTOR Be sure to use a PA5 Series connector with cable when connecting a preleaded connector or connector-type switch. PA5 Series connector with cable Shape Power supply Cord properties Cord length Catalog listing Lead colors PA5-4J SX2SK 1: brown, 2: white, 3: blue, 4: black Vinyl-insulated cord PA5-4J SX5SK 1: brown, 2: white, 3: blue, 4: black... - Page 8 Cautions for series or parallel connection Loads that cause inrush current When the proximity switch is connected to a load such as an Series connection (AND switching circuit) electromagnetic switch, lamp or motor that causes inrush current, In case of either 100 Vac or 200 Vac, the voltage which is applied use the switch within the rated current, which includes the inrush to the load in the ON condition is VL = VS - (output voltage drop current.
