- Page 1 Operating Instructions Plastic Flow Meter Model: KSM...
-
Page 2: Table Of Contents
Maintenance ....................10 Dimensions ....................11 EU Declaration of Conformance ..............12 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com page 2 KSM K08/0818... -
Page 3: Note
2. Note Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The devices are only to be used, maintained and serviced by persons familiar with these operating instructions and in accordance with local regulations applying to Health &... -
Page 4: Operating Principle

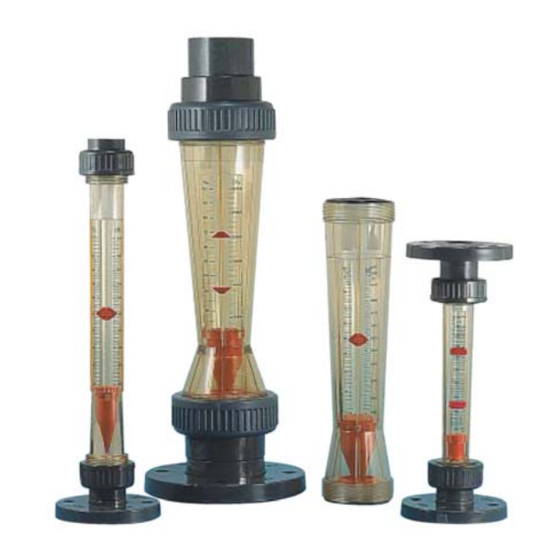

4. Operating Principle The Plastic Flow Meter model: KSM operates according to the variable area principle, in which the float is free to move without friction inside the measuring tube. The reading edge corresponds to the larger diameter of the float. The standard flow meter is equipped with a scale for water (+20°C), a percentage scale, O-rings, 2 adjustable set-point indicators and a rail for accessories;... -
Page 5: Electrical Connection
Protect the measuring tube from external damage. Avoid pressure peaks in the measuring tube, e.g. from sudden surges or stoppage of flow. The units with bistable reed switch may not be installed within an inductive field. If possible, immediately after making mechanical connections, check whether the connections are properly sealed with no evidence of leakage. -
Page 6: Operation
8. Operation In order to initialise the bistable switching function, it is essential that the float-travel activates the contact once in each direction. Adjustment of limit-values The switch-point can be adjusted to the desired levels by using both red sliders as reference points. -
Page 7: Technical Data
9. Technical Data Housing: KSM-1...: Trogamide-T (PA) KSM-2...: Polysulfone Connections: ½”...3½”, see order codes Float: PVDF Guide rod: PVDF/stainless steel for the three largest sizes Seals: EPDM (KSM-1.../KSM-2...) FPM (KSM-3...) Max. temperature: KSM-1...: 0-60 °C KSM-2...: 0-100 °C with contact: 85 °C Max. -
Page 8: Order Codes
10. Order Codes Medium liquids The following scales are available for liquids Model Standard Pressure Special scale Water loss Water Water Water NaOH NaOH HCI* [L/h] [mbar] [L/s] [L/min] 30 % 50 % 30-33 % [L/h] [L/h] [L/h] KSM-..001 15-150 0.25-2.5 3-46 0.5-7... - Page 9 Medium air The following scales are available for air m³ m³ m³ m³ m³ m³ m³ m³ m³ (0 bar rel.) (1 bar rel.) (2 bar rel.) (3 bar rel.) (4 bar rel.) (5 bar rel.) (6 bar rel.) (7 bar rel.) (8 bar rel.) KSM-..001 0.8 - 5...
-
Page 10: Maintenance
If using the setpoint switch, it is particularly important to guard against contamination by ferritic (metal) contaminants. These can be eliminated by using the KOBOLD model MF magnetic filter (or equivalent). page 10 KSM K08/0818... -
Page 11: Dimensions
12. Dimensions L2 (mm) approx. Model [mm] [mm] [mm] Annealed- Glue PVDF [mm] approx. cast-iron conn. G 1/2 G 3/4 G1 1/4 G 1 1/2 welded approx. KSM-..001 R 1 1/2 KSM-..005 R 1 1/2 KSM-..010 R 1 1/2 KSM-..020 R 2 1/4 KSM-..030 R 2 1/4... -
Page 12: Eu Declaration Of Conformance
13. EU Declaration of Conformance We, KOBOLD-Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Plastic Flow Meter with Contact Model: KSM -...R1/R2 to which this declaration relates is in conformity with the standards noted below: EN 61010-1:2011...
