Summary of Contents for Kobold KSK

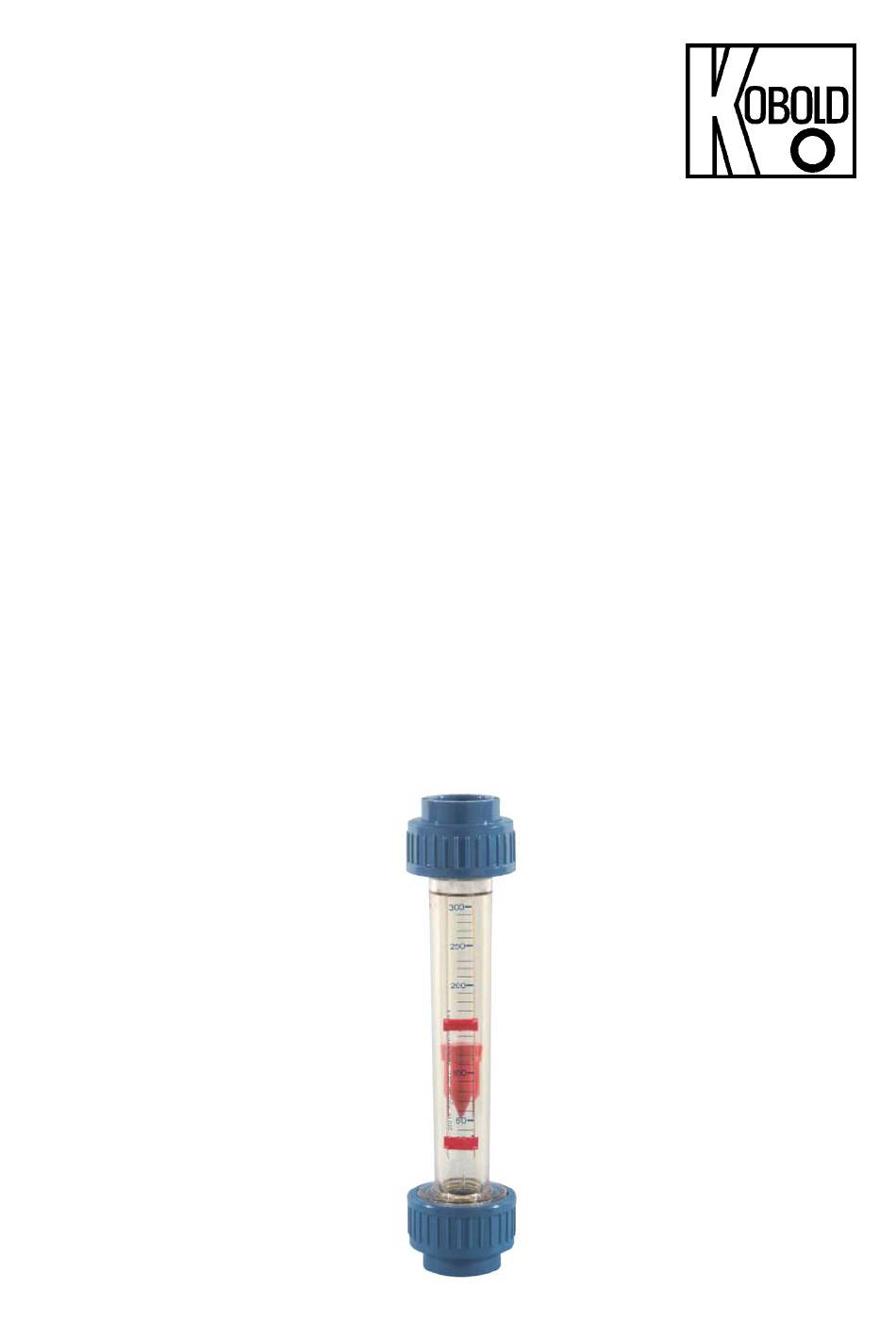

- Page 1 Operating Instructions Plastic Flow Meter Model: KSK...
-
Page 2: Table Of Contents
EU Declaration of Conformance ..............11 UK Declaration of Conformity ..............12 Manufactured and sold by: KOBOLD Instruments Inc. 1801 Parkway View Drive Pittsburgh PA 15205-1422 Tel.: 412-788-2830 Fax: 412-788-4980 E-Mail: info@koboldusa.com Internet: www.koboldusa.com KSK 01/0322... -
Page 3: Note
Plastic Flow Meter model: KSK 4. Regulation Use Any use of the Plastic Flow Meter, model: KSK, which exceeds the manufacturer’s specification, may invalidate its warranty. Therefore, any resulting damage is not the responsibility of the manufacturer. The user assumes all risk for such usage. -
Page 4: Operating Principle
5. Operating Principle Kobold Plastic Flow Meters and Switches, model KSK, are based on the well- known suspended float principle. They are used for measuring and monitoring flows in closed pipes. The media flows, from below, through a conical plastic measuring tube. This raises the float and the flow rate can be read off against scale. -
Page 5: Electrical Connection
Attention! The stated electrical parameters of the contact may not be exceeded, even for a short period of time. For inductive or capacitive loads, we recommend the use of contact protection measures respectively the application of a contact protection relay. KSK 01/0322 page 5... -
Page 6: Electronic Contact (Option)
After connecting the external devices, and adjusting the switch housing to the desired switch points, all the connection work is completed. The unit is ready for operation. KSK 01/0322 page 6... -
Page 7: Operation
9. Maintenance If the medium to be measured is clean, the series KSK is virtually maintenance- free. If deposits form on the inner housing or parts, periodic cleaning of the unit is recommended. Remove the units from the piping with a suitable tool; clean the flow meter with a suitable cleaning agent or make use of an ultrasonic bath. -
Page 8: Technical Information
10. Technical Information Materials Measuring tube: Trogamide T (KSK 1..) or polysulfone (KSK 2..) not transparent, but opaque translucent Float: PVDF O-rings: EPDM (KSK-1../KSK-2..) Max. operating pressure: PN 10 Max. operating temp.: KSK 1... max. 60 °C (0...60 °C) KSK 2... max. 100 °C (0...100 °C) (60 °C with PVC screwed fitting) -
Page 9: Order Codes
Float above contact across PIN 1 and PIN E: Float below contact across PIN 1 and PIN E: 9 - 24 V LED out 11. Order Codes Example: KSK-1015G K10 00 Order Numbers for Standard Types Max. Material Water Range Measuring... -
Page 10: Dimensions
12. Dimensions KSK 01/0322 page 10... -
Page 11: Eu Declaration Of Conformance
13. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Plastic Flow Meter Model: KSK-... to which this declaration relates is in conformity with the standards noted below: EN 61000-6-3:2011 Electromagnetic compatibility (EMC) - Part 6-3: Generic standards - Emission... -
Page 12: Declaration Of Conformity
14. UK Declaration of Conformity We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Plastic Flow Meter Model: KSK-... to which this declaration relates is in conformity with the standards noted below: BS EN 61000-6-3+A1:2007 Electromagnetic compatibility (EMC).
