Summary of Contents for Kobold KFS

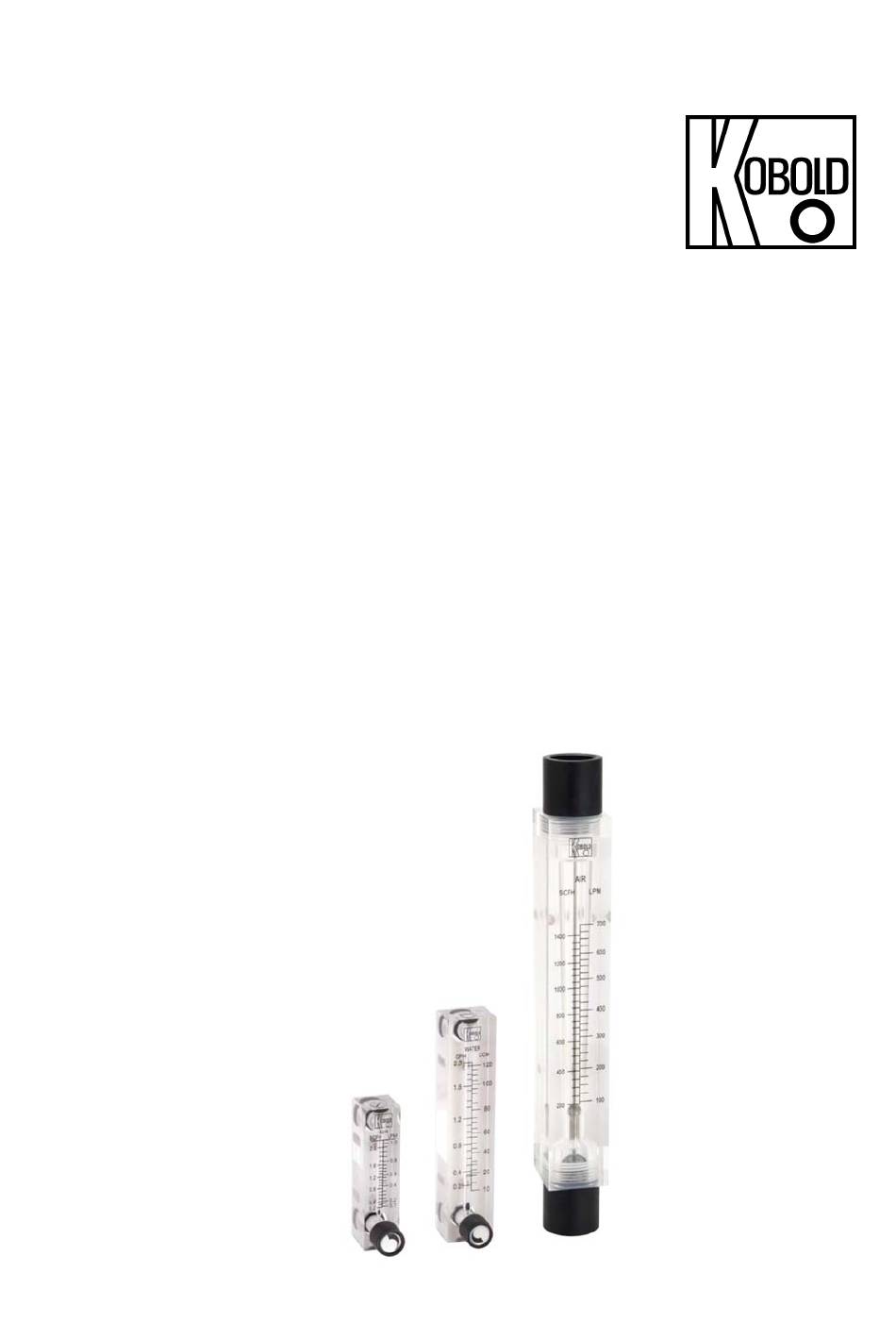

- Page 1 Operating Instructions Low Volume Variable Area Flow Meters Model: KFS...
-
Page 2: Table Of Contents
Regulation Use ..................... 3 Operating Principle ..................4 Installation and Operation Instructions ............4 KFS-2000 through KFS-4000 Series ........... 4 KFS-5000 Series ................. 5 Technical Information ..................6 ... -
Page 3: Note
Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased. -
Page 4: Operating Principle
5. Operating Principle The flow meter model KFS operates on the proven suspended float system, that is, the installation position is vertical and the flow is from bottom to top. The instrument is constructed as a single unit, that is, it has an acrylic housing with removable connections made of PVC or stainless steel. -
Page 5: Kfs-5000 Series

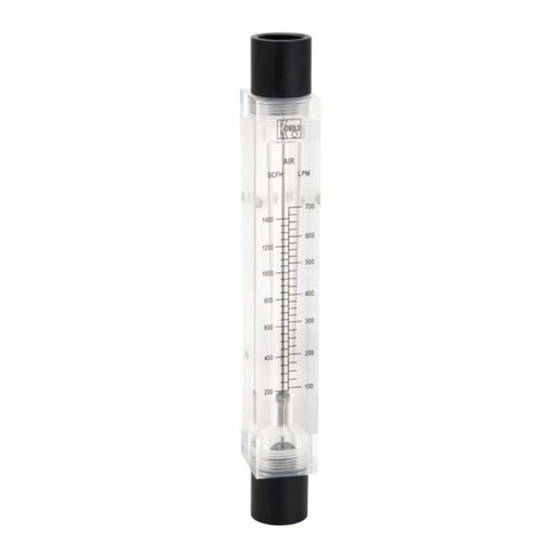

KOBOLD. 6.2 KFS-5000 Series The KFS-5000 acrylic block flowmeters are available in various ranges in both SAE and SI units for air and water (see technical data sheet). These direct reading meters are also available for other gases and liquids. If the meter will be used with fluids other that air or water, please consult chemical compatibility data for possible effects on the meter. -
Page 6: Technical Information
KOBOLD. 7. Technical Information Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 8. Order Codes Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 9. -
Page 7: 10. Disposal
(Cd, Hg, Li or Pb) of the heavy metal that is decisive for the classification as containing pollutants: 1. „Cd" stands for cadmium 2. „Hg" stands for mercury 3. „Pb" stands for lead 4. „Li" stands for lithium Electrical and electronic equipment KFS K01/0724 page 7... -
Page 8: 11. Eu Declaration Of Conformance
11. EU Declaration of Conformance We, KOBOLD Messring GmbH, Nordring 22-24, 65719 Hofheim, Germany, declare under our sole responsibility that the product: Low Volume Variable Area Flow Meters model: KFS to which this declaration relates is in conformity with the following EU directives...
