User Manual
S830
Windows 7 or later, macOS 10.12 or later

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S830 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GAOMON S830

Summary of Contents for GAOMON S830

  • Page 1 User Manual S830 Windows 7 or later, macOS 10.12 or later...

  • Page 2: Precautions

    S830 Precautions 1. Please read this manual carefully before using, and keep it well for future reference. 2. Before cleaning the tablet please unplug the power cord and wipe with a soft damp cloth, do not use any kind of detergents.

  • Page 3: Table Of Contents

    S830 Contents Precautions 1. Product Overview ......................4 1.1 Tablet Introduction 1.2 Product and Accessories 1.3 Connnecting to Computer 1.4 Connecting to Android Phone/Tablet 1.5 Driver Installation 1.6 Pen Nib Replacement 2. Function Setting ......................8 2.1 Device Connection Prompt 2.2 Working Area Setting...

  • Page 4: Product Overview

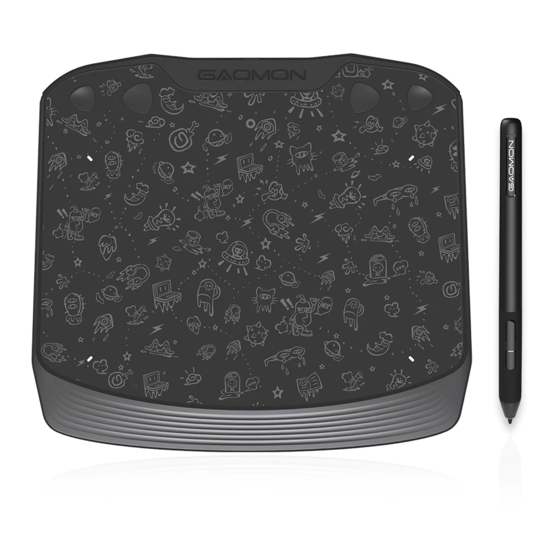

    1. Product Overview 1.1 Tablet Introduction Thanks for buying GAOMON S830 Tablet. This is a new generation of professional battery-free drawing tablet, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely painting and writing, depicting different lines and colors, just as the pen writes on the paper, which brings you a real shock experience.

  • Page 5: Connnecting To Computer

    S830 1.2.2 Packing List Pen Tablet AP32 Pen Micro USB Pen Nib Clip Quick Start Guide Replacement Nibs Quick Start Guide 1.3 Connnecting to Computer Connect the tablet to your computer with USB cable. www.gaomon.net...

  • Page 6: Connecting To Android Phone/Tablet

    3. For some models, you need to go to phone or tablet "Settings", then enable "OTG" function. 4. You may need purchase a USB adapter to make GAOMON tablet connect with your Android phone/tablet. For example a Type-C to USB adapter, or Micro USB to USB adapter, depending on the USB type of your devices.

  • Page 7: Driver Installation

    S830 1.5 Driver Installation 1.5.1 OS Support Windows 7 or later，macOS 10.12 or later 1.5.2 Install Driver Please download the driver from our website: www.gaomon.net/download After finishing installation, you can find the grey driver icon in the system tray area, which means the driver was installed successfully;...

  • Page 8: Function Setting

    S830 2.Function Setting 2.1 Device Connection Prompt 1. No Device Detected: The computer does not recognize the tablet. 2. Device connected: The computer has recognized the tablet. www.gaomon.net...

  • Page 9: Working Area Setting

    S830 2.2 Working Area Setting 2.2.1 Using Multiple Monitors Select the monitor to define the relationship between pen movement on the tablet and cursor movement on the monitor screen. By default the entire active area of tablet maps to the entire monitor. If more than one monitor is in use and you are in extended mode, you need to choose the related monitor on the driver interface which you are going to map to.
  • Page 10 S830 2.2.2 Working Area Setting Define the tablet area that will be mapped to the screen area. 1. Full Area: the entire active area of the tablet. This is the default setting. 2. Custom Area: Drag the corners of the foreground graphic to select the screen area.

  • Page 11: Shortcuts Keys Function Setting

    S830 2.2.3 Rotate Working Area By changing the direction of the tablet to adapt to the left and right hand operation. We provide four directions of choice. 2.3 Shortcuts Keys Function Setting Default Setting Place the cursor on the shortcut key or click the shortcut keys to find the default values.
  • Page 12 S830 www.gaomon.net...

  • Page 13: Pen Buttons Function Setting

    S830 2.4 Pen Buttons Function Setting Click the button to customize its function. Enter a name and select the function to be achieved. www.gaomon.net...

  • Page 14: Pressure Sensitivity Setting

    S830 2.5 Pressure Sensitivity Setting The pressure sensitivity will be changed by dragging the points of the pressure curve. Drag the points to the upper left for higher sensitivity. Drag the points to the lower right for lower sensitivity. www.gaomon.net...

  • Page 15: Pen Pressure Testing

    S830 2.6 Pen Pressure Testing You can gradually apply pressure to the stylus on the screen to test the pressure level. www.gaomon.net...

  • Page 16: Enable The Windows Ink Feature

    S830 2.7 Enable the Windows Ink Feature Microsoft Windows provides extensive support for pen input. Pen features are supported in such as Microsoft Office、Windows Journal、Adobe Photoshop CC、SketchBook 6 and so on. www.gaomon.net...

  • Page 17: Mouse Mode

    S830 2.8 Mouse Mode As shown below, check the checkbox in front of the mouse mode to open the mouse mode. Under mouse mode, when you move the pen, the cursor moves following the relative coordinate principle, similar to moving the cursor with the mouse. This means you can click icons or select options at the edge of the screen without moving the pen to the edge of the working area.
  • Page 18 S830 www.gaomon.net...

  • Page 19: Data Export And Import

    S830 2.10 Data Export and Import The driver supports exporting and importing your custom configuration data of the product, which is convenient for you to use different software and avoid the trouble of repeated settings. www.gaomon.net...

  • Page 20: Specifications

    S830 3. Specifications Model S830 Touch Technology Battery-free EMR 172.3 x 107.7 mm (6.78*4.24in) Working Area Dimension 236 ×214.5×7.5mm Touch Resolution 5080LPI Sensitivity Pressure 8192 Levels Report Rate 266PPS Accuracy ±0.3mm 10mm Pen Sensing Height Micro USB Interface Press Key...

  • Page 21: Trouble Shooting

    S830 4.Trouble Shooting Abnormal Phenomena Possible Solutions You may have installed other tablet drivers or opened the drawing software There is no pressure in the graphics when installing the driver. Please uninstall all drivers and close the drawing software but the cursor moves software, then reinstall the driver.

  • Page 22: Contact Us For After-Sell Service

    S830 5. Contact Us for After-sales Service GAOMON TECHNOLOGY CORPORATION www.facebook.com/Gaomonpentablet twitter.com/Gaomonpentablet service@gaomon.net https://www.gaomon.net www.gaomon.net...
