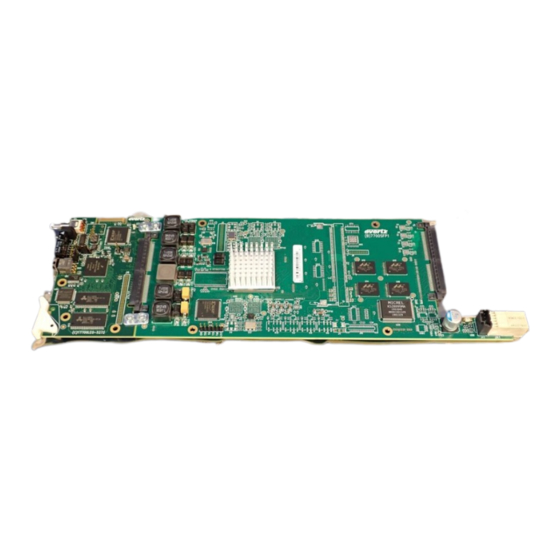

evertz 7708GT-4 User Manual

Quad gigabit ethernet fiber transceiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
© Copyright 2020
EVERTZ MICROSYSTEMS LTD.
5292 John Lucas Drive,
Burlington, Ontario,
Canada L7L 5Z9
Phone:
905-335-3700
Sales:
sales@evertz.com
Tech Support: service@evertz.com
Web Page:
http://www.evertz.com
Version 1.0, August 2020
The material contained in this manual consists of information that is the property of Evertz Microsystems and is intended solely for
the use of purchasers of the 7708GT-4. Evertz Microsystems expressly prohibits the use of this manual for any purpose other than
the operation of the 7708GT-4. Due to on going research and development, features and specifications in this manual are subject
to change without notice.
All rights reserved. No part of this publication may be reproduced without the express written permission of Evertz Microsystems
Ltd. Copies of this manual can be ordered from your Evertz dealer or from Evertz Microsystems.
7708GT-4(-F)
User Manual
Fax: 905-335-3573
Fax: 905-335-7571

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7708GT-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for evertz 7708GT-4

Summary of Contents for evertz 7708GT-4

  • Page 1 The material contained in this manual consists of information that is the property of Evertz Microsystems and is intended solely for the use of purchasers of the 7708GT-4. Evertz Microsystems expressly prohibits the use of this manual for any purpose other than the operation of the 7708GT-4.
  • Page 2 This page left intentionally blank...
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS The picture can't be displayed. The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of un-insulated “Dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 4 FIBER OPTIC DEVICES Some modules in this product may have fiber optic outputs. The following safety information applies to the optical outputs of these modules. Consult individual chapters for specific safety information for handling fiber optics. WARNING Never look directly into an optical fiber. Irreversible eye damage can occur in a matter of milliseconds.
  • Page 5 WARNING Changes or modifications not expressly approved by Evertz Microsystems Ltd. could void the user’s authority to operate the equipment. Use of unshielded plugs or cables may cause radiation interference. Properly shielded interface cables with the shield connected to the chassis ground of the device must be used.
  • Page 6 This page left intentionally blank...
  • Page 7 August 2020 Information contained in this manual is believed to be accurate and reliable. However, Evertz assumes no responsibility for the use thereof nor for the rights of third parties, which may be affected in any way by the use thereof. Any representations in this document concerning performance of Evertz products are for informational use only and are not warranties of future performance, either expressed or implied.
  • Page 8 7708GT-4(-F) Quad Gigabit Ethernet Fiber Transceiver Page left intentionally blank Page ii...

  • Page 9: Table Of Contents

    1.1. 7708GT-4 APPLICATION CONFIGURATIONS ..............1 1.2. ORDERING OPTIONS ......................2 GETTING STARTED ........................3 2.1. HARDWARE INSTALLATION ....................5 2.2. 7708GT-4(-F) STATUS LED AND CONTROLS ..............6 2.2.1. Status Indicator LEDs ....................6 2.2.2. 7708GT-4 –MENU STRUCTURE ................8 TECHNICAL SPECIFICATIONS ....................3 3.1.
  • Page 10 Quad Gigabit Ethernet Fiber Transceiver Figures Figure 1-2: Application Configurations ......................1 Figure 2-1: 7708GT-4(-F) Block Diagram and Rear Panels ................5 Figure 2-2: Location of Status Indicators and Controls ..................6 Figure 4-1: Card Control Tab ......................... 11 Figure 4-2: Monitor Tab ..........................12 Figure 4-3: Faults Tab ............................

  • Page 11: Overview

    The 7708GT-4(-F) occupies one card slot and can be housed in the 1RU 7801FR frame which holds up to four single or two dual slot modules, the 3RU 7800FR frame which has a 15 slot capacity, the portable 3RU 350FR frame which has a 7 slot capacity, or a standalone enclosure which holds a single module.

  • Page 12: Ordering Options

    7708GT-4(-F) Quad Gigabit Ethernet Fiber Transceiver 1.2. ORDERING OPTIONS 7708GT-4 Quad Gigabit Ethernet fi ber transceiver, RJ45 ports for Ethernet • connection 7708GT-4-F Quad Gigabit Ethernet fi ber transceiver, SFP interface for Ethernet • connection (SFP's not included) Note: Select from optical and SFP options below Ordering Options Rear Plate and Fiber Connector must be specifi ed at time of order (Eg.

  • Page 13: Getting Started

    7708GT-4(-F) Quad Gigabit Ethernet Fiber Transceiver TECHNICAL SPECIFICATIONS 2.1. ETHERNET INPUT/OUTPUT (7708GT-4) Standard: IEEE 802.3 10base-T 802.3u 100base-TX 802.3ab 1000base TX Connectors: 4 RJ45 ports Cable Requirements 10Base-T: UTP category 3, 4, or 5 cable up to 328ft/100m 100Base-T: UTP category 5 cable up to 328ft/100m...
  • Page 14 7708GT-4(-F) Quad Gigabit Ethernet Fiber Transceiver Page left intentionally blank Page 4...

  • Page 15: Hardware Installation

    ESD strap be worn. Locate on the chassis a vacant slot. Unpack the 7708GT-4(-F) and insert the rear panel into the back of the chassis and secure using the screws provided. Slide in module on the slot runners that correspond to the...

  • Page 16: 7708Gt-4(-F) Status Led And Controls

    3.2.1. Status Indicator LEDs LOCAL FAULT: On the 7708GT-4, this Red LED will be ON if a card fault exists, or if a local input power fault exists (i.e.: a blown fuse). The LOCAL FAULT indications can also be reported to the frame through the FRAME STATUS jumper.
  • Page 17 7708GT-4(-F) Quad Gigabit Ethernet Fiber Transceiver On the 7708GT-4, there are also eight small LEDs on the front of the main board that indicate the presence of signals. LED 1/2: GREEN: IP Link Activity 4 Present OFF: IP Link Activity 4 Loss...

  • Page 18: 7708Gt-4 -Menu Structure

    ETH(1-4) ELNK ETH(1-4) Table 2-1 : 7708GT-4 Card Edge Menu Structure CTRL This allows users to change settings on the card edge display and connectivity settings. DISP Display control. Allows the user to switch the text orientation of the card display between •...
  • Page 19 7708GT-4(-F) Quad Gigabit Ethernet Fiber Transceiver STAT Displays the status of the card including important information for firmware version of the card and connectivity information of the card network connection. • Displays the firmware version currently installed on the card.
  • Page 20 7708GT-4(-F) Quad Gigabit Ethernet Fiber Transceiver This page left intentionally blank Page 10...

  • Page 21: Vistalink Pro Interface

    7708GT-4(-F) Quad Gigabit Ethernet Fiber Transceiver VISTALINK PRO INTERFACE 4.1. CARD CONTROL Figure 4-1: Card Control Tab 4.1.1. Ethernet Control Bandwidth Limit Port 1-4: Slider control that allows bandwidth limit per port (in MB/s) 4.1.2. Power Threshold Control Laser Output Power Threshold: Allows user to set threshold for output power (in dBM) Receive Input Power Threshold: Allows user to set threshold for input power (in dBM) 4.1.3.

  • Page 22: Monitor

    7708GT-4(-F) Quad Gigabit Ethernet Fiber Transceiver 4.2. MONITOR Figure 4-2: Monitor Tab 4.2.1. Ethernet Port 1-4 Ethernet Link Status: Displays current link status on Ethernet port. Ethernet Speed Status: Displays current connection speed for Ethernet port. Ethernet Duplex Status: Displays duplex status for Ethernet connection.

  • Page 23: 4.2.2. Laser Monitor

    7708GT-4(-F) Quad Gigabit Ethernet Fiber Transceiver 4.2.2. Laser Monitor Vendor Name: Displays name of vendor for connected SFP. Laser Wave Length: Displays wavelength of SFP. Laser Output Power: Displays output power of SFP (in dBm) Receive Input Power: Displays input power of SFP (in dBm) Max Link Length SMF: Displays max link length for a single mode fiber in km.

  • Page 24: Faults

    7708GT-4(-F) Quad Gigabit Ethernet Fiber Transceiver 4.3. FAULTS Figure 4-3: Faults Tab This control allows the user to enable or disable the following Faults:  Ethernet Status Port 1-4  Laser Fail  Laser Warning  Laser Output Power Low ...

  • Page 25: Firmware Upgrade Procedures

    The DHCP mode should be disabled before proceeding with the 7800FC  Frame Controller to upgrade. Note: Please contact Evertz for the latest firmware if it’s not available on Evertz web site. This will open a window that displays all of the current version information loaded onto the card.

  • Page 26: Figure 5-2: Version Information Screen

    7708GT-4(-F) Quad Gigabit Ethernet Fiber Transceiver Figure 5-2: Version Information Screen Check mark the product to be upgrade and click upgrade in the bottom right corner of the Version Information window. Multiple products of the same type may be selected to be upgraded at the same time.

  • Page 27: Jar File Upgrade Procedures

    JAR FILE UPGRADE PROCEDURES Evertz products are constantly evolving and new features are often added. It is therefore important to update the JAR files in use to provide access to all the latest features or enhancements. It will also be necessary to...

  • Page 28: Figure 5-6: Vistalink

    7708GT-4(-F) Quad Gigabit Ethernet Fiber Transceiver To retrieve the JAR file contact your Evertz sales representative or check Evertz web site for availability (www.evertz.com – Support> Downloads VistaLINK PRO JAR File Downloads> > Type “7708GT-4” in ® the Model search and press “Go”). Save the files to the hard drive.

  • Page 29: Figure 5-7: Firmware Version Location

    7708GT-4(-F) Quad Gigabit Ethernet Fiber Transceiver Figure 5-7: Firmware Version Location When the window opens you want to select the latest .jar file from its saved location on the computer and select Open. At this point the VLPro Server will send a message asking to Restart, select Yes. This will apply the update firmware to the card.
  • Page 30 7708GT-4(-F) Quad Gigabit Ethernet Fiber Transceiver End of document Page 20...
