AVS User Manual Rev 2.0 Nov/07
74108407
Voltshield
The Sollatek Switcher Range
Instruction manual
AVS 13/15 micro
AVS 13rL micro
AVS30 micro
AVS100
AVS3P-0
AVS303
important: This manual contains important safety instructions.
Keep this manual handy for reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Voltshield AVS 13/15 micro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sollatek Voltshield AVS 13/15 micro

  • Page 1 ™ Voltshield ™ The Sollatek Switcher Range Instruction manual AVS 13/15 micro AVS 13rL micro ™ Sollatek (Uk) ltd AVS30 micro AVS100 UniT 10 PoyLE 14 indUSTriAL ESTATE, nEwLAndS driVE, PoyLE, SLoUgh SL3 0dX, UniTEd Kingdom tel: international +44 1753 688300 national 01753 688300 Fax: international +44 1753 685306 national 01753 685306 e-mail: sales@sollatek.com www.sollatek.com AVS3P-0 AVS303 ©Sollatek (UK) Limited 1996 All rights reserved. SoLLATEK and the SoLLATEK device are the trade marks of the important: This manual contains important safety instructions. Sollatek group of companies. Keep this manual handy for reference. AVS User Manual Rev 2.0 Nov/07...
  • Page 2 Fully automatic in operation. All these products provide power-back surge protection as standard by their in-built start-up delay and voltage monitoring. Sollatek encompasses a wide range of power protection products for use in many different industries where clean, regulated mains power is critical to their continued Additionally, all models include surge and spike protection. operation. For more information on our range of power protection products, contact us now. contents The Sollatek AVS13/13rL/15 micro p.4-5 The Sollatek AVS30 micro p.6-9 The Sollatek AVS100 p.10-11 The Sollatek AVS3P-0 p.12-13 ™ The Sollatek AVS303 p.14-15 comparison chart p.16-17 Sollatek (Uk) ltd UniT 10 PoyLE 14 indUSTriAL ESTATE, Power problems p.18-19 nEwLAndS driVE, PoyLE, SLoUgh SL3 0dX, UniTEd Kingdom tel: international +44 1753 688300 national 01753 688300 Fax: international +44 1753 685306 national 01753 685306 e-mail: sales@sollatek.com www.sollatek.com...
  • Page 3: Specifications

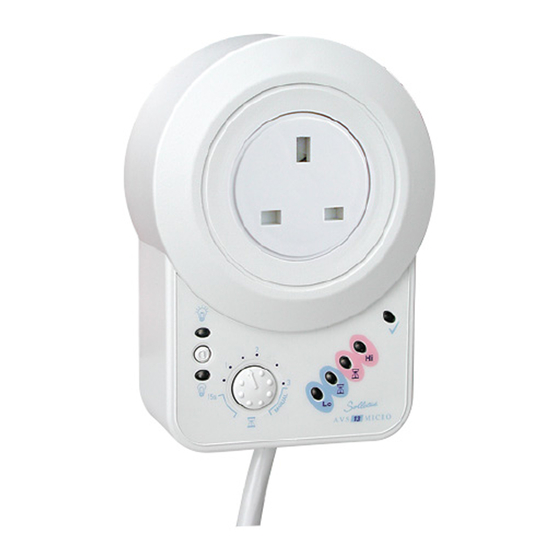

    aVS13 micro, aVS13 rl micro, aVS15 micro SpeciFicationS model AVS13 AVS13rL AVS15 AVS15E The AVS is an Automatic Voltage Switcher rated at 13 Amps (AVS13) or 15Amps (AVS15). The AVS will switch off the equipment current (Amps) connected to it if the mains power goes outside preset acceptable nominal voltage(V) 230 230 230 limits and will re-connect -automatically* - when the mains power wait time (mins) adjustable adjustable adjustable adjustable returns to normal. re-connection takes place after a delay to ensure 15 secs-3mins 15 secs-3mins 1.5mins-5mins 1.5mins-5mins stability of the mains. Under-voltage disconnect(V) 185 185 185 over-voltage disconnect(V) 260 260 260 This new version of the AVS has a built-in micro-processor that has hysteresis(V)
