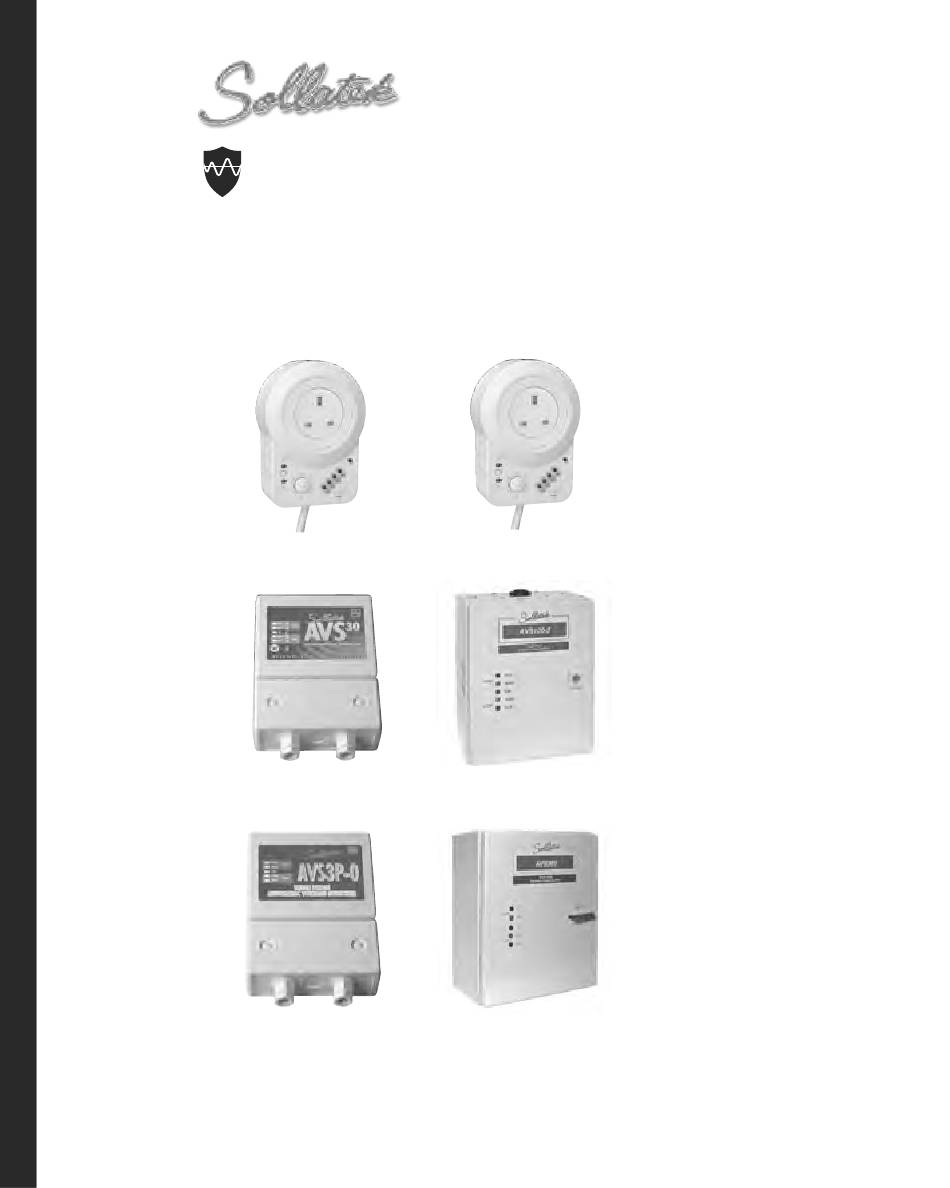

- Page 1 ™ Voltshield ™ The Sollatek Switcher Range Instruction manual AVS 13/15 MICRO AVS 13RL MICRO AVS30 MICRO AVS100 AVS3P-0 AVS303 Important: This manual contains important safety instructions. Keep this manual handy for reference.
- Page 2 Sollatek encompasses a wide range of power protection products for use in many different industries where clean, regulated mains power is critical to their continued operation.
- Page 3 THE SOLLATEK AUTOMATIC VOLTAGE SWITCHER (AVS) RANGE The Sollatek Voltshield (AVS) range prevents damage to equipment from over and under voltage levels of any duration. They work by disconnecting power when voltage levels exceed set parameters. Reconnection takes place when power returns to normal.

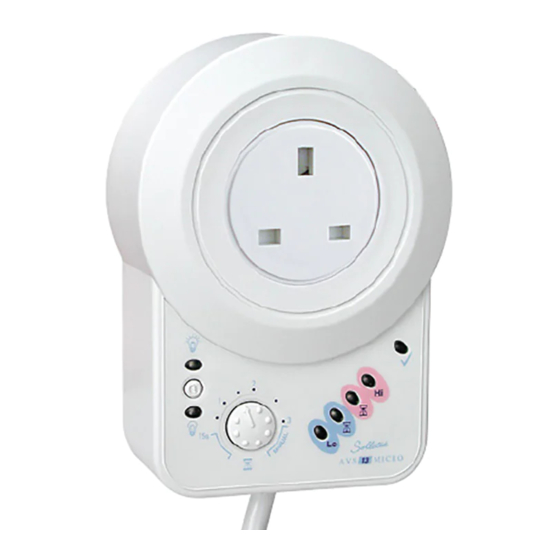

- Page 4 AVS13 micro, AVS13 RL micro, AVS15 micro The AVS is an Automatic Voltage Switcher rated at 13 Amps (AVS13) or 15Amps (AVS15). The AVS will switch off the equipment connected to it if the mains power goes outside preset acceptable limits and will re-connect -automatically* - when the mains power returns to normal.
-
Page 5: Specifications
SPECIFICATIONS Model AVS13 AVS13RL AVS15 Current (Amps) Nominal voltage(V) Wait time (mins) adjustable adjustable adjustable 15 secs-3mins 15 secs-3mins 1.5mins-5mins Under-voltage disconnect(V) Over-voltage disconnect(V) Hysteresis(V) Socket type UK13A (BS1363) UK13A (BS1363) UK15A unfused plug Fused plug Yes. 13Amp Yes. 13Amp RFI protection Attenuation(db) 20@100Khz,50@1Mhz... - Page 6 AVS30 micro The AVS30 micro is a single phase Automatic Voltage Switcher rated at 30 Amps. The AVS will switch off the equipment connected to it if the mains power goes outside pre-set acceptable limits, and will reconnect automatically when the mains power returns to normal. Reconnection takes place after a delay, to ensure stability of the mains.
- Page 7 OPERATION 1. Make sure that your load does not exceed the rating of the AVS which is 30Amps. 2. The limits of the AVS as a standard are set for a window of 190-260 volts. 3. The AVS has to be wired to the mains supply and to the equipment it is supplying. Please refer to the wiring diagram on page 9.
- Page 8 CONNECTION: CAUTION: IF THE AVS IS ALREADY WIRED, MAKE SURE IT IS DISCONNECTED FROM THE MAINS BEFORE YOU DO ANY OF THE FOLLOWING; 1. Remove the bottom cover to obtain access to connection terminals. To remove bottom cover remove the two white caps and then undo the two screws. 2.
- Page 9 AVS30 CONNECTION TERMINALS LAYOUT AVS30 INPUT AVS30 OUTPUT L (Live) to L L (Live) to L out N (Neutral) to N N (Neutral) to N out E (Earth) to E E (Earth) to E out if used spike protection fuse...
- Page 10 AVS100 The is AVS100 is a single phase Automatic Voltage Switcher rated at 100 Amps. If the voltage goes above or below the pre-set limits (the ‘window’), then the AVS100 will switch off. Once the voltage returns within the window limits, the AVS will wait for a pre-set time, continuing to check the voltages, before automatically turning the load back on.
- Page 11 CONNECTION: CAUTION: IF THE AVS IS ALREADY WIRED, MAKE SURE IT IS DISCONNECTED FROM THE MAINS BEFORE YOU DO ANY OF THE FOLLOWING; Open the door to obtain access to connection terminals. Insert cable from the mains supply through the cable entry at the top of the box. AVS100 CONNECTION DIAGRAM AVS100 INPUT L (Live)
- Page 12 AVS3P-0 The AVS3P-0 is an Automatic Voltage Switcher designed to protect three phase loads from voltage fluctuations, over voltage, under voltage, surges, dips and frequent start/stops. The output is a single volt-free changeover contact, rated at 16A. This is intended to control an external contactor, control circuit, start/stop system or alarm.
- Page 13 Set limits of the AVS3P-0 using the thumb-wheel adjustment inside the terminal compartment. Ensure that limits set are safe for the load being protected. For example: Low =185V and High = 260V is normally considered safe for most equipment but you should check with the equipment manufacturer’s information.
- Page 14 AVS303 The AVS303 is a Three Phase Automatic Voltage Switcher which protects against over voltage and under voltage on any one of the three phases as well as loss of one or more phases. Indication and/or disconnection as a result of mains frequency error or phase sequence error is available as an option.
- Page 15 SPECIFICATIONS Model AVS303 Model AVS303 Current (Amps) 23 to1250 Nominal voltage(V) 230/400 Wait time (mins) 10 secs to 10 minutes Under-voltage disconnect(V) 190V (150 - 230V) Over-voltage disconnect(V) 260V (150 - 230V, also off) Hysteresis(V) Socket type direct via brass screw terminal Fused plug RFI protection Transient suppression...
- Page 16 SOLLATEK PRODUCT RANGE COMPARISON CHART The following chart Voltshield ™ The Sollatek Switcher Range Prevents damage to equipment from over or under voltage levels of long duration. Works by disconnecting power when voltage level exceeds set parameters. RFI / Noise...
- Page 17 Sollatek range of products and the protection they offer. Voltright Voltsure Voltsafe ™ ™ ™ The Sollatek Suppressor Range The Sollatek Regulator Range The Sollatek UPS Range Ensures equipment can still operate although the...
-
Page 18: Power Problems
RFI / Noise High Voltage Low Voltage Basic Advanced Expert Power Cuts kes/Surges POWER PROBLEMS Lightning Lightning Lightning AND THEIR ASSOCIATED CAUSES All electrical and electronic equipment, connected to the mains supply is at risk of being damaged from spikes, surges, lightning, brown-outs, power-cuts (blackouts), power back surges, and over-voltage. - Page 19 pert Power Cuts Power-Back Telecom Surges ning Surges r Cuts Power-Back Telecom Surges Basic Advanced Expert Power Cuts Power-Back Telecom Surges Voltage Surges Lightning Lightning Lightning Surges Basic Lightning: Direct or nearby strikes can cause minor problems or severe disturbances and damage. Lightning produces spikes/surges, over-voltage or power cuts.
- Page 20 ™ Sollatek (UK) Ltd. Sollatek House. Waterside Drive. Langley. Slough. SL3 6EZ United Kingdom Tel: +44 (1753) 214 500 Technical support: support@sollatek.com Sales: sales@sollatek.com www.sollatek.com ©Sollatek (UK) Limited 2010. All Rights Reserved. SOLLATEK and the SOLLATEK device are the trade marks of the Sollatek group of AVS User Manual Rev 3.0 December 2009...
