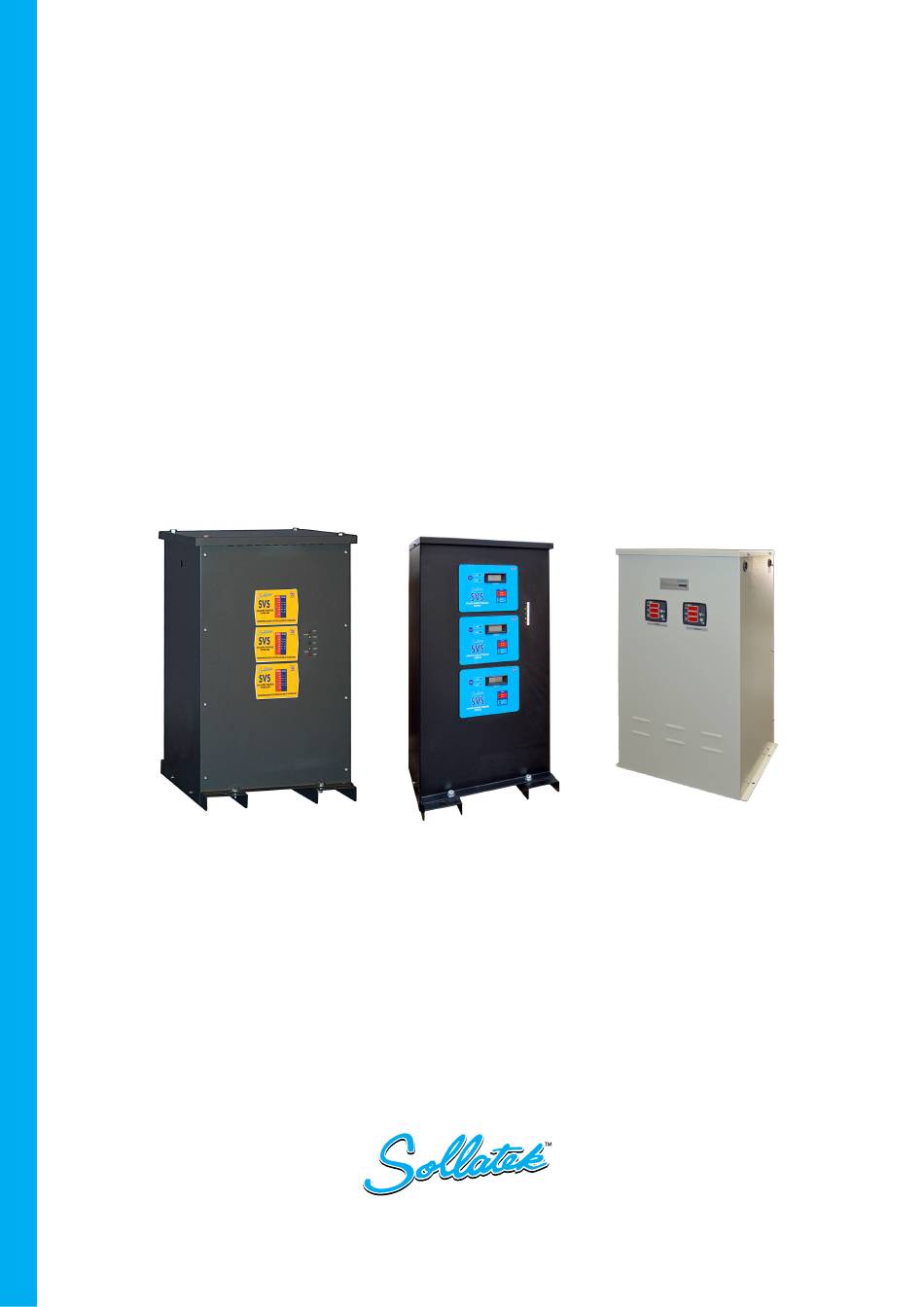

SVS3x35-22 SVS3x45-22 SVS3x75-22
User Instructions
Important: This manual contains important safety instructions.
Keep this manual handy for reference.
• Before using this product please read all instructions carefully.
• Keep these instructions for future reference.
• All specifications are subject to change without prior notice.
the power to protect
w w w.sollatek . com
Advertisement
Related Manuals for Sollatek SVS3x35-22
Summary of Contents for Sollatek SVS3x35-22
- Page 1 Keep this manual handy for reference. • Before using this product please read all instructions carefully. • Keep these instructions for future reference. • All specifications are subject to change without prior notice. the power to protect w w w.sollatek . com...
- Page 2 THREE PHASE SVS INSTRUCTION MANUAL CONTENTS SAFETY The dangers from electricity Reducing the risk of electric shock First Aid DESCRIPTION TECHNICAL SPECIFICATION General specification Model specification UNPACKING & INSPECTION ShockWatch Tip’n’Tell Inspection of the unit PREPARATION What’s in the box Tools needed Packaging Storage...
- Page 3 • Before attempting to use the SVS (Sollatek Voltage Stabiliser) ensure that the total loading of your equipment does not exceed the maximum rating of the SVS. To check the rating of your SVS, refer to the label on the side of the unit.
- Page 4 3-4 minutes is recommended. The 3-4-minute delay allows compressors gas to neutralise before re-starting. By using the Sollatek SVS you will ensure a stable and clean voltage supply to your valuable equipment. Depending on the rating of the SVS, it is suitable for all electrical and electronic appliances, including: •...
- Page 5 THREE PHASE SVS INSTRUCTION MANUAL TECHNICAL SPECIFICATION General specification Input / output range Standard o/p Narrow o/p Input Range -26% to + 19% -20% to + 20% Output Accuracy +/-6% +/-3% Stabilised Range @230V 172 to 274V i/p = 216 to 243V o/p 184-276V i/p =223 to 237 o/p AVS Limits o/p = LVD 142V.
- Page 6 PREPARATION What’s in the box • SVS3xnn Unit. • Installation manual available for download on Sollatek website: https://www.sollatek.com/support/downloads/ Tools needed • Standard electrician’s toolkit • Standard electricians spanner set Packaging Retain the packing material in case of relocation or return of unit in the unlikely event of workshop repair.
- Page 7 THREE PHASE SVS INSTRUCTION MANUAL INTERFACE AND INTERNAL COMPONENTS Front Panels (Layout dependent on model) SVS45E-22 label Stock number: Mar 2018 OUTPUT NOTES Pantone Red 032 Cyan Re ex blue LCD Voltage Display Screen Select Button Pantone cool grey 1* *Small LED windows print clear Pantone Purple (cutter).
- Page 8 THREE PHASE SVS INSTRUCTION MANUAL Internal configuration Top view (lid removed) customer connection Single Phase Case Earth Control Boards (Ensure connections (below) are secure) Input MCB Output MCB Metering Fusing for Control Boards Input and Output Terminals Fans...
- Page 9 The cable length should be kept to a minimum to prevent excess voltage drop. Observe de-rating factors depending on cable fixing method. Model Number AC Input (min)* AC Output* SVS3x35-22 10mm csa 10mm csa SVS3x45-22 16mm csa 10mm csa...
- Page 10 THREE PHASE SVS INSTRUCTION MANUAL Ac connection Ensure all cabling is isolated from any existing mains supply and loads, use appropriate mechanical lock outs to safely isolate the SVS unit. Step 1. Remove top panel - Access the cable terminals: Unscrew the four retainers and remove the top cover of the SVS (photo1).
- Page 11 THREE PHASE SVS INSTRUCTION MANUAL Step 2.C. Ensure terminations are tight and cable is secure. Electrical regulations require that an external disconnect switch be used in the AC input wiring circuit. The AC breakers (MCB) in a sub panel may in most cases satisfy this requirement and local regulations.
- Page 12 For areas subject to lightning related damage. Sollatek advise using advanced protection device such as DSP D-100 spike and surge protection obtainable at any Sollatek distributor. Note: Please read the DSP installation guidelines carefully and ensure there is a good low impedance connection to earth.
- Page 13 SVS off. Restart the unit as per operating instructions. If the above doesn’t solve the problem, please return the unit to a Sollatek service centre. • Ensure that you have followed the operating instructions carefully. • There are no user serviceable parts internally.
- Page 14 • This guarantee does not affect your statutory or Common Law rights. WARRANTY Should your SVS unit need repair, the quickest and simplest way is to return it to your dealer or to a Sollatek Service Centre or direct to the nearest Sollatek office.
