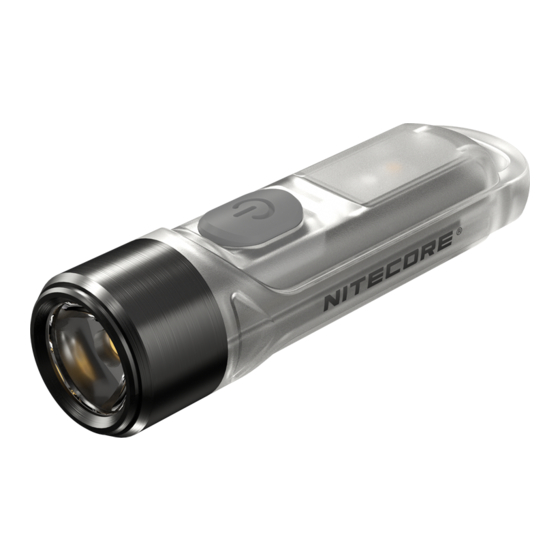

Nitecore TIKI UV User Manual

Features
• Utilizes a primary Luminus SST-10-UV LED (Radiant Power: 1,000mW; Wavelength: 365nm)
• Equipped with 2 x auxiliary high CRI white LEDs (CRI≥90; Color Temperature: 4500K)
• The primary UV light utilizes a TIR (Total Internal Reflection) lens for a uniform and soft beam
• Built-in rechargeable Li-ion battery
• Built-in Li-ion battery charging circuit with a micro-USB port
• Advanced Power Cut-Off (APC) technology for an ultralow standby power consumption
• One hand operable interface controls 2 outputs with a single switch
• Head constructed from aluminum alloy with a superior heat dissipation capability
• Body constructed from durable PC (V0) materials
• Waterproof and dustproof rating in accordance with IP66
• Impact resistant to 1 meter
Specifications
Length: 55mm (2.17")
Head Diameter: 14.7mm (0.58")
Weight: 10.5g (0.37oz)
Technical Data
UV
HIGH
Radiant Power / Brightness 1,000mW 180mW
Runtime 1h
Beam Distance
－
Peak Beam Intensity
－
Impact Resistance
Rating
Note: The stated data is measured using the built-in Li-ion battery (130mAh) under laboratory
conditions. The data may vary in real world use due to different battery usage or environmental
conditions.
Charging Function
The TIKI UV is equipped with an intelligent charging
system. Please charge the battery before the first use.
Connecting to the External Power: As illustrated,
use the USB cable to connect an external power supply
(e.g. a USB adapter, a computer or other USB charging
devices) to the USB port to begin the charging process.
The charging time is approx. 1h 20min.
Charging Indicator: During the charging process, the
charging indicator located beneath the switch will be
steadily turned on. When the battery is fully charged,
the charging indicator will be turned off.
Note: The TIKI UV should be recharged when the output appears to be dim or the light becomes
unresponsive due to low power.
Primary UV Light
On / Off
On: When the light is off, double press the Power Button to access UV LOW.
Off: When the UV light is on, long press the Power Button to turn it off.
UV Levels
When the UV light is on, short press the Power Button to switch between UV HIGH and UV LOW.
Note: The TIKI UV will regulate its output to avoid overheating and prolong its lifespan when
accessing UV HIGH for over 1 minute.
Accessories
Key Clasp
AUX WHITE
LOW HIGH LOW WARNING FLASHING
70 Lumens 35 Lumens 35 Lumens
2h 30min 1h
12m 7m
－
36cd 15cd
－
1m
IP66
Momentary Access to UV HIGH
When the light is off, press and hold the Power Button to access the UV HIGH. Release to turn it off.
Auxiliary White Light
On / Off
On: When the light is off, triple press the Power Button to access AUX WHITE LOW.
Off: When the auxiliary white light is on, long press the Power Button to turn it off.
Brightness Levels
When the auxiliary white light is on, short press the Power Button to cycle through "AUX WHITE LOW
– AUX WHITE HIGH – AUX WHITE WARNING FLASHING".
Warnings
1. CAUTION! Possible dangerous radiation! Don't look into the light! May be dangerous for your eyes.
2. Please charge the battery before the first use.
3. Please recharge the product every 3 months when left unused for a prolonged time.
4. The product contains small assembly parts. Please keep it away from children to avoid danger of
choking or suffocation.
5. DO NOT disassemble, modify or reconstruct the product, otherwise the warranty will be nullified,
and the product might be damaged.
Warranty Service
11h
All NITECORE
－
a replacement through a local distributor/dealer within 15 days of purchase. After that, all defective /
－
malfunctioning NITECORE
purchase. Beyond 24 months, a limited warranty applies, covering the cost of labor and maintenance,
but not the cost of accessories or replacement parts.
The warranty will be nullified if
1. the product(s) is/are broken down, reconstructed and/or modified by unauthorized parties;
2. the product(s) is/are damaged due to improper use.
For the latest information on NITECORE
distributor or send an email to service@nitecore.com
※ All images, texts and statements specified herein this user manual are for reference purposes only.
Should any discrepancy occur between this manual and information specified on www.nitecore.
com, Sysmax Innovations Co., Ltd. reserves the rights to interpret and amend the content of this
document at any time without prior notice.
