7. Front panel controls

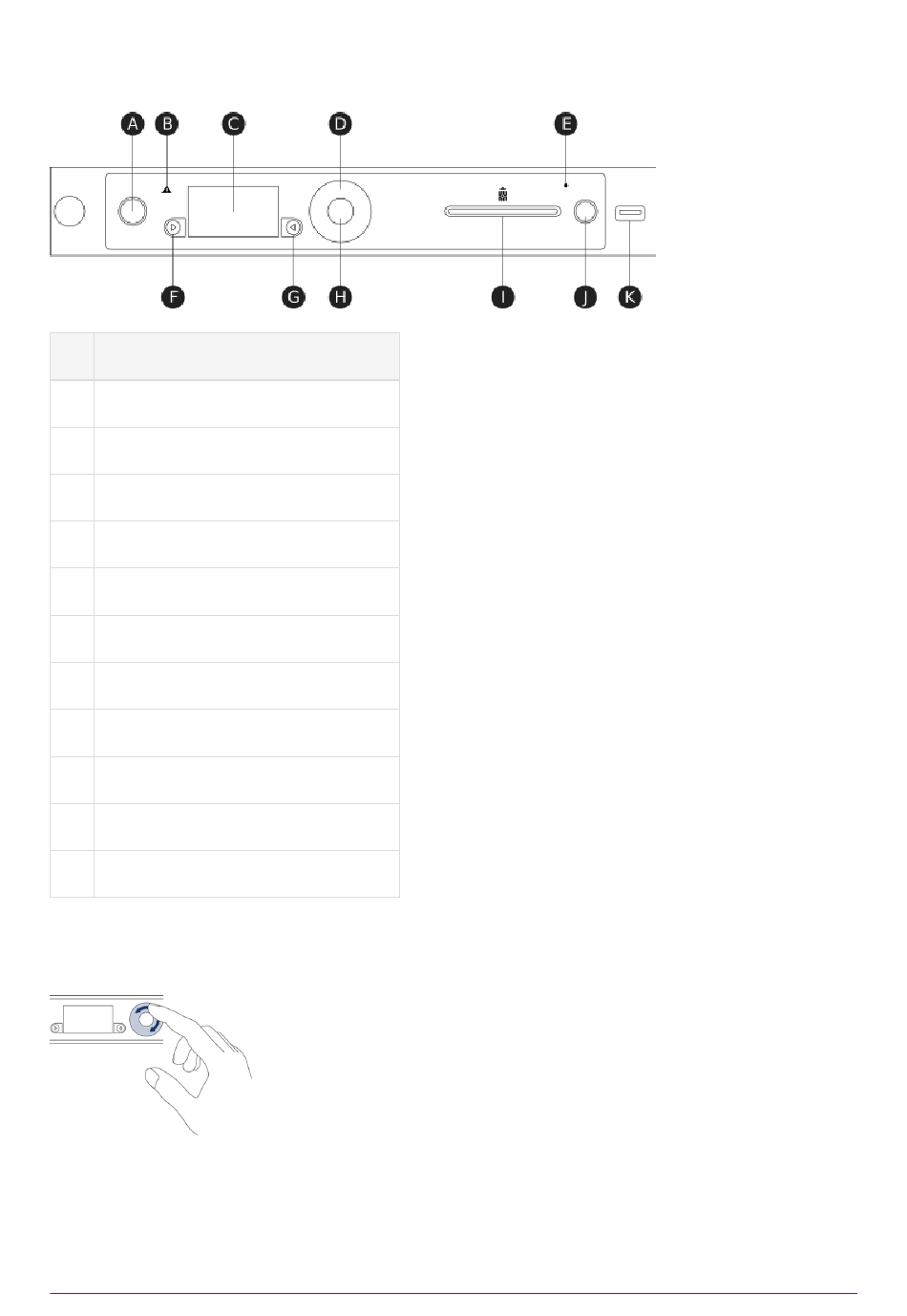

Key Description
A
Power button
B
Warning LED (orange)
C
Display screen
D
Touch wheel
E
Status indicator LED (blue)
F
Display navigation button (left)
G
Display navigation button (right)
H
Select button
I
Slot for smart cards
J
Clear button
K
USB connector
For more information about the user interface, including the front panel controls, see the
nShield Connect User Guide.
Use the touch wheel to change values or move the cursor on the display screen. To
confirm a value, press the Select button.
nShield® Connect Installation Guide
22 of 73
