ST STEVAL-BLUEPIRV1 User Manual

How to use the STEVAL-BLUEPIRV1 evaluation board for Bluetooth
Introduction
The STEVAL-BLUEPIRV1
on a passive infrared (PIR) sensor and featuring Bluetooth
The passive infrared sensors are the most used sensors for motion detection, thanks to their low-power
consumption and price.
The STEVAL-BLUEPIRV1
Fresnel lens is up to 5 m.
The on-board low-power
with a power consumption in a sub-µA range.
The embedded
BNRGM2SA), which integrates an application microcontroller based on an Arm
®
Bluetooth Low Energy connectivity.
The whole design has been built by focusing on low-power consumption. Even though powered via a CR2032
coin-cell battery, the board expected lifetime is around a year.
UM3001 - Rev 1 - April 2022
For further information contact your local STMicroelectronics sales office.
Energy wireless motion detector based on a PIR sensor
evaluation board is an application example design of a wireless motion detector based
evaluation board uses IRA-S210ST01 by Murata. The detection range of the IML-0688
TSU102 CMOS op-amp and
BlueNRG-M2SA FCC and IC certified radio module (FCC ID: S9N-BNRGM2S and IC: 8976C-

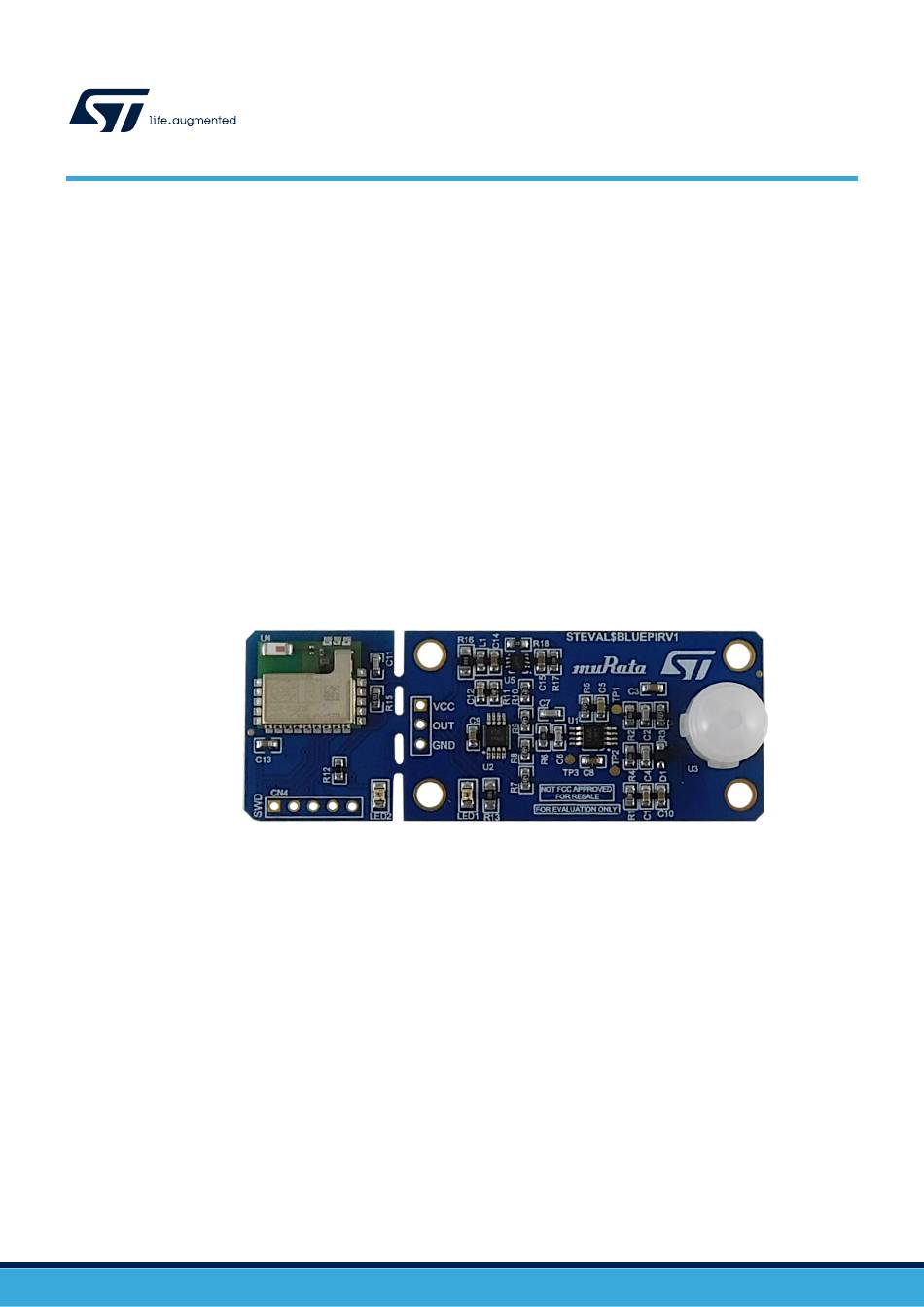

Figure 1. STEVAL-BLUEPIRV1 evaluation board
®
Low Energy wireless connectivity.
TS883 comparator perform the analog signal conditioning
®
