- Page 1 INSTALLATION INSTRUCTIONS AND MANUAL CINEMA TWO SUB SYSTEM PN.33-1600 1.99...
-
Page 2: Table Of Contents
CUSTOM INSTALLATION CONSIDERATIONS GETTING THE MOST FROM YOUR CINEMA SUBWOOFERS 8-9 INSTALLATION QUICKSTART AND PARTS LIST INSTALLATION SAFETY / CARE AND MAINTENANCE NEW CONSTRUCTION / RETROFIT INSTALLATION BACK BOX / SPEAKER / GRILLE INSTALLATION CONNECTING THE CINEMA 2120 SUBWOOFER SETTINGS 15-16 SPECIFICATIONS... -
Page 3: Important Safety Instructions
The décor friendly, sonically superior Sonance Cinema Systems meet the highest standard for accurate reproduction of cinema soundtracks and are compatible with all Dolby Digital sound tracks. -
Page 4: Getting The Most From Your Cinema Subwoofers

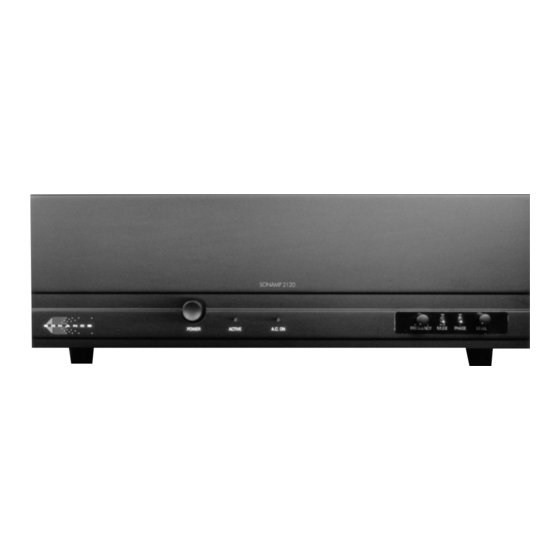

The Cinema Two SUB System includes a dedicated a Sonamp Cinema 2120 specially designed to drive subwoofers.As a convenience, the Sonamp Cinema 2120 features an auto-on circuit which activates the amplifier when a signal is present and automatically shuts it down after 3 minutes of inactivity. You... - Page 5 The Cinema Two SUB System requires a nominal six inch depth (2" x 6") stud walls thus accommodating the massive magnet structures of their drivers. Due to the high-energy output of which they are capable, the Cinema Two SUBs must be installed with their 72"...
-
Page 6: Installation Safety / Care And Maintenance
Drill a hole as small as possible in the rear or side panel of the back box and pass the speaker wire through it. For ease of speaker installation, leave two feet of extra wire beyond the actual speaker mounting location. -
Page 7: Back Box / Speaker / Grille Installation
Sonamp Cinema 2120. If no line level output is available to drive the subwoofer, use a Sonance OP-3 to convert high level speaker output to the appropriate level for input to the Sonamp Cinema 2120. Connect subwoofer speaker wires to the right and left speaker terminals on the back of the amplifier. - Page 8 SPL. Some THX controllers include the THX Wow disk with test tones with the controller manual. Most controllers produce a pink noise signal for speaker calibration. Other test CDs are available from your Sonance dealer. Always take SPL readings from ear level at the listening position.
- Page 9 (WxHxD) Fixed Depth Bracket Cutout - 10-3/16" x 18-15/16" (259mm x 481mm) Grilles: Metal Speaker Dimensions (WxHxD): 15" x 26-1/4" x 5-1/4" (381mm x 667mm x 133mm) Fixed Depth Bracket Cutout: 10-3/16" x 18-15/16" (259mm x 481mm) SONAMP CINEMA 2120...
-
Page 10: Service
ONE YEAR LIMITED WARRANTY(SONAMP CINEMA 2120) Sonance warrants to the original retail purchaser for the period of one (1) year, the unit to be free from defects in material and workmanship provided the unit is operated in accordance with the printed instructions included with the unit.
