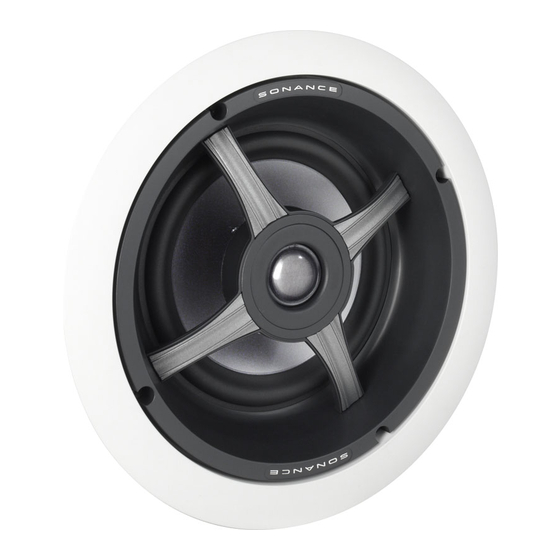

Sonance ThinLine TL622R Specification Sheet

Sonance ThinLine
Sonance ThinLine™ speakers deliver a high
level of per formance in a size that allows them
to be installed in locations that are too shallow
for conventional in-ceiling speakers.
Now consisting of four models (including a
S i n g l e - S t e r e o Te c h n o l o g y
Sonance ThinLine speakers are ideal for both
multi-channel home theater and stereo music
applications. High-quality driver materials and
p r e c i s i o n e n g i n e e r i n g
musical performance, yet the speaker effortlessly
integrates into almost any lifestyle.
With paintable aluminum grilles and a small
diameter that let them practically disappear into
the décor, Sonance ThinLine speakers bring
high-quality enter tainment to life in places that
present dif ficult installation challenges.
Features:
• Thin (77mm) depth allows installation in
areas too shallow for conventional speakers.
• Advanced woofer cone materials produce
robust, low-distortion bass in a small
footprint that increases installation options.
• Pivoting tweeters direct the sound at listeners
for clear sound and improved stereo imaging
even when speaker placement options are
limited (TL623 /TL622
R
• TL623 reproduces both left and right
SSTR
channels from a single speaker — ideal for
small spaces like hallways, closets and
bathrooms.
• A 3-position tweeter adjustment switch lets
you balance the speaker's high-frequency
energy to better compliment your room's
setup and acoustics (TL623
• The RotoLock® mounting system makes
installation quick and easy.
• Exclusive new FastMount
in the mounting hole during installation,
allowing installer to let go of the speaker to
pick-up tools or other items.
TL623 Speaker
R
Speakers
™
S S T R m o d e l ) ,
®
d e l i v e r i m p r e s s i v e
).
R
/TL623 ).
R SSTR
tabs hold speaker
®
Sonance In-Ceiling Speakers
ThinLine

Specifications:

TL623
R
Tweeter:
Woofer:
Frequency Response:
Impedance:
Power Handling:
Sensitivity:
Grille Material:
Adjustments:
Dimensions (Dia. x Depth): 9¾" (248mm) x 3
Cutout Diameter:
Shipping Weight:
TL622
R
Tweeter:
Woofer:
Frequency Response:
Impedance:
Power Handling:
Sensitivity:
Grille Material:
Adjustments:
Dimensions (Dia. x Depth): 9¾" (248mm) x 3
Cutout Diameter:
Shipping Weight:
(continued on back)
Series
™
1" (25mm) Silk dome, Ferrofluid-cooled,
pivoting
6½" (165mm) Carbon fiber cone, rubber
surround
43Hz – 20kHz ±3dB
8 Ohms nominal; 6 Ohms minimum
5 watts minimum; 135 Watts maximum
90dB SPL (2.83V 1 meter)
Per forated aluminum
±3dB Tweeter level
1
" (77mm)
/
32
5
8 " (207mm)
/
32
10 lbs. (4.5kg) Pair
1" (25mm) Silk dome, Ferrofluid-cooled,
pivoting
6 ½ " ( 1 6 5 m m ) P o l y p r o p y l e n e
rubber surround
45Hz – 20kHz ±3dB
8 Ohms nominal; 6 Ohms minimum
5 watts minimum; 125 Watts maximum
89dB SPL (2.83V 1 meter)
Per forated aluminum
None
1
" (77mm)
/
32
5
8 " (207mm)
/
32
10 lbs. (4.5kg) Pair
c o n e ,
