INTRODUCTION
Thank you for purchasing Sonance Cinema Ultra II speakers. When
properly installed, this product will provide you with years of
entertainment pleasure.
To obtain the full potential of this product, please read all instructions
before starting the installation.
PARTS LIST - Ultra II LCR
Each Sonance Cinema ULTRA II LCR speaker package includes the
following items:
(1) THX ULTRA II LCR in-wall speaker
(1) Paintable grille
(1) Plastic paint plug to protect speaker during painting
(1) Mounting cutout template ( in packaging )
(6) Rotolock towers ( 4 corner and 2 side )
PARTS LIST - Ultra II SUR
Each Sonance Cinema ULTRA II SUR speaker package includes the
following items:
(2) THX ULTRA II SUR in-wall speakers
(2) Paintable grilles
(2) Plastic paint plug to protect speaker during painting
(1) Mounting cutout template ( in packaging )
(12) Rotolock towers ( 8 corner and 4 side )
OPTIONAL ACCESSORIES
Cinema FlexBracket - part number 92023
Plastic template to reserve hole in new construction.
Designed to be used with the Rotolock mounting system.

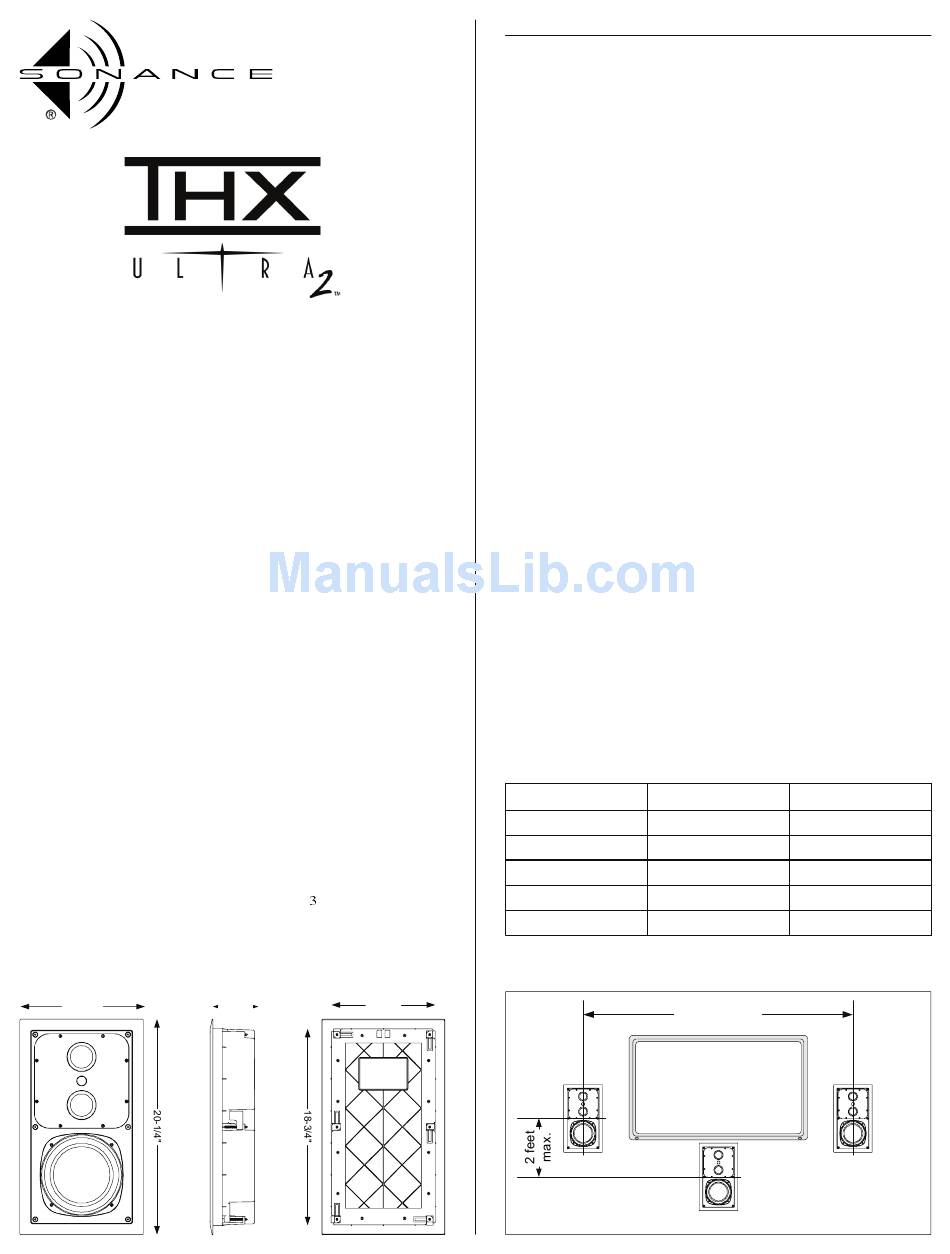

DIMENSIONS - LCR
11-9/16"
10-1/4"
3-15/16"
I N S T A L L A T I O N
T H X - U L T R A
LEFT AND RIGHT SPEAKER PLACEMENT
The ideal mounting height for the LCR speakers is 38 to 42 inches
from the floor to the center of the speaker baffle . This height
corresponds to the height of your ear when you are sitting on a couch
or in a chair.
Use the chart below to determine the placement height of the
speakers. As part of the THX Ultra II approval process the LCR
speakers have very broad vertical dispersion, approximately +/-10
degrees.
The left and right speakers should be separated from 6 to 10 feet
apart center to center. If the speakers are separated too far apart the
sound will seem to come from each front speaker. If the speakers are
placed too close together the sound will seem too congested around
the television.
Note: The Ultra II LCR can be placed horizontally. When
placing the speaker horizontal the midrange / tweeter plate
should be rotated 90 degrees to maintain proper dispersion.
CENTER CHANNEL SPEAKER PLACEMENT
If possible, locate the center channel in you home theater system the
same height as your left and right speakers (38 to 42 inches from the
floor). If you must place the speaker above or below a television, we
recommend placing the speaker no more than 2 feet above or below
the center of the left and right speakers.
Note: The Sonance Cinema Ultra II LCR speakers are
magnetically shielded to eliminate interference with TV's, or
other electrical devices.
OPTIMAL LCR PLACEMENT HEIGHT
Distance from Speaker
6 feet
8 feet
10 feet
12 feet
14 feet
Height measured to center of speaker from floor
1
I N S T R U C T I O N S
I I I N - W A L L S P E A K E R S
Minimum Height Maximum Height
27"
23"
19"
15"
11"
6 to 10 feet
PN. 33-3187 06/07
53"
57"
61"
65"
69"
