Sonance VISUAL PERFORMANCE VP82R Specifications

V i s uA L P e R F o R M A n C e
V P 8 2 R , V P 8 6 R , V P 8 8 R , + S q u a r e A d a p t e r
Product Family Overview
From the company that invented the category, comes the
best sounding, best looking and most complete range of
in-wall and in-ceiling speakers ever. Visual Performance

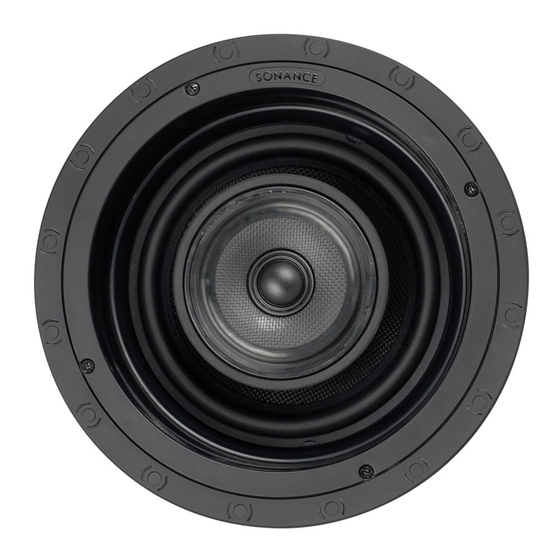

V P 8 2 R

Features and Benefits

Absolute best sonic performance at all price points
• Designed using state-of-the-art computer modeling software
to vastly improve magnetic field and suspension linearity
for consistent sonic performance at any SPL for
best-in-class performance
• Pivoting woofer, midrange, and tweeter for improved
frequency response in off-axis installations
Latest high-tech driver and tweeter material technology
• Improved low frequency performance
• Improved driver cone materials
• Low diffraction woofer, and midrange tweeter design
• Pivoting drivers for improved frequency response in
off-axis installations
• Chambered midrange and tweeter design on all models
the chambered tweeter design does the following
• Lowers the resonance frequency of the tweeter
• Allows for a lower crossover frequency to the woofer
Specifications
Diameter: 11 5/8" (295mm)
Depth: 5 7/8" (149mm)
Cut Out Diameter: 10 1/8" (257mm)
With square Adapter and grille
Width: 11 3/4" (299mm)
Height: 11 3/4" (299mm)
®
V P 8 6 R
Diameter
11.06 [ 281.0] 11.06 [ 281.0]
Cut Out
Diameter
s e R i e s
®
comes in various shapes and sizes to compliment down lights and
décor and a complete range that allows you to enjoy a consistent
Series aesthetic for any application in any room.
V P 8 8 R
• Reduces the back pressure on the tweeter dome
• Reduces the distortion of the tweeter near the
crossover frequency
easier to install
• Easier to access Roto-Lock
• Removed metal hang tabs
• One-piece paintable grille with peel and stick scrim cloth
for easier painting
• Two piece toggle feet allows installation with double dry wall
and thicker ceiling and wall materials
square adapter w/ grille can turn any round speaker
into a square speaker
• Allows easy alignment of the square grille with other
ceiling features
• Available in 1 pair or 5 pair bulk packages
Depth
Square Adapter w/ Grille
screws
®
Height
11.06 [280.9]
Width
11.06 [280.9]
