Sonance TRUFIG VX-VXQ Installation Manual

TRUFIG VX-VXQ SQUARE SOLID SURFACE
INTRODUCTION
This installation guide will provide instructions to install a VX-VXQ Square speaker into a routable solid surface.
TOOLS NEEDED:
Plunge Router
Amana 45464-S router bit (see illustration last page)
1/2 inch top bearing router bit.
3/8 drill bit

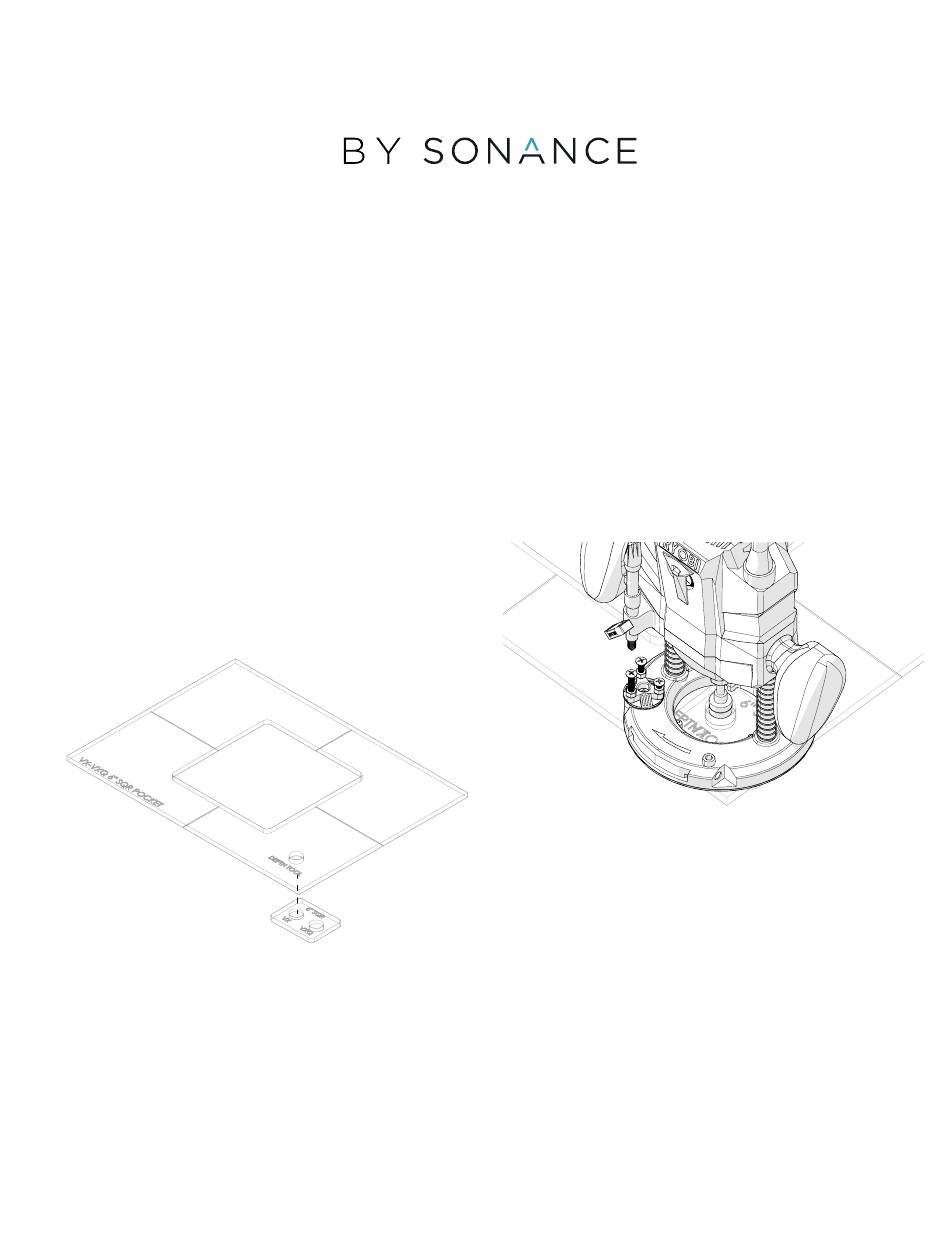

SETTING UP THE PLUNGE ROUTER
1. Locate the SQR Depth Tool and place the Pocket
of the desired model to be installed under the Pocket
Template Depth Tool opening and center it with the
Depth Tool hole.
SQR Pocket Template
2. With the Amana 45464-S bit installed in the plunge
router set the depth of the cut.
page 1 of 4
T R U F I G
INSTALLATION MANUAL
SQR Depth Tool
Power drill
Jig saw
Double sided tape
Clamps
Corner chisel
POSITIONING
1. Locate where the speaker is to be installed.
2. Create center lines on the speaker location long enough
so the Router Template Center Lines can be matched.
Note: to avoid marking the finished surface apply
masking tape where the lines are to be drawn, darw
lines on the tape.
336-0151 REV A
