Summary of Contents for Colorlight C6
-
Page 2: Table Of Contents
3.3 Advanced Settings .......................................... 10 3.3.1 Playing Parameters ......................................10 3.3.2 Network Settings ......................................... 11 Chapter 4 C6 Async Content Editing and Sync Playing ................................. 14 4.1 Async Content Editing ........................................14 4.2 Async Content Publishing ....................................... 15 4.2.1 Publish Contents through Direct USB .................................. 15 4.2.2 Content Publishing through USB disk .................................. -
Page 3: Chapter 1 C6 Interface And Hardware Connection

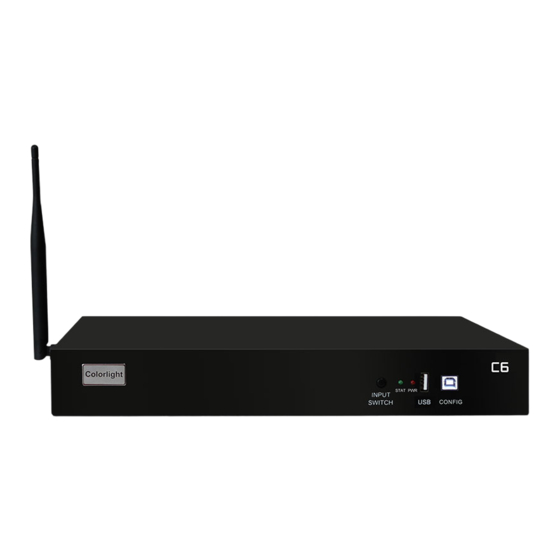

Chapter 1 C6 Interface and Hardware Connection 1.1 C6 Interface Name Function Input Switch Switch between synchronous and asynchronous display Indicator Light Indicates power and signal status USB Port Play and update contents through USB stick CONFIG Parameter setting and update contents through computer... -
Page 4: Hardware Connection
1.2 Hardware Connection C6 Configuration Control & play without computer... -
Page 5: Chapter 2 Ledvision Installation
Chapter 2 LEDVISION Installation First download the installation package of LEDVISION software from Colorlight’s official website www.lednets.com, and complete the installation according to the diagrams shown below. 1. Run the software package, and select [ English ] for installer language. Click [ OK ] to move on. - Page 6 www.lednets.com 2. After selecting a language, an installation wizard like below will appear. Click [ Next ]; Then choose installation location, click [ Browse ] to change default target location, then click [ Next ] after completing. Choose components according to your own computer status, click [ Install ] to complete. After the installation is complete you are ready to use LEDVISION.
-
Page 7: Chapter 3 C6 Parameter Settings
3.1 Connection Settings 1. Before connecting your C6 to the computer, first click the control menu [ Control ] → [ Screen Control ], then select [ C-Series Play Box ] in Select Sending Device, then set up [ LED Screen Window Management ]. - Page 8 2. Use standard USB A/B cable to connect C6 to computer when C6 is powered on, one side to connect USB port, another side for C6 config port. Click [ Publish Program to C Series Playboxes ] (as shown in the red box) to enter program publish interface.
- Page 9 3. Left-click [ Direct USB ] and then right-click choose [ Refresh ], your C6 will show up in program publishing window, select your device to set parameters and choose what content to play.
-
Page 10: Basic Settings
● Ensure LED display is under normal configuration before setting on C6 parameters. ● When setting up C6 parameters, you can connect your C6 to your PC through a standard USB A/B cable, and connect your C6 to your LED screen through network cable. - Page 11 The surface development of your C6’s parameter setting interface is shown below:...
-
Page 12: Advanced Settings
www.lednets.com 3.3 Advanced Settings 3.3.1 Playing Parameters ① Screen Resolution The [ width ]/ [ Height ] you input must be equal to or slightly larger than the actual screen resolution. ② Output Every Frame ( Default ). Every Other Frame ( Choosing [ every other frame ] can help avoid lag when image loading area is too large ). -
Page 13: Network Settings
www.lednets.com 3.3.2 Network Settings ① WiFi Check [ WiFi ] in network tab, and input your WiFi login information for [ network name ] and [ password ], then click [ Apply ] and [ Refresh ] to complete setting, click [ detail... ] to check connection status. - Page 14 www.lednets.com ② WiFi Hotspot Input your [ network name ] and [ password ] to use a WiFi Hotspot. CDMA: 2.4G or 5G (5G mode will be faster and more reliable if both smart phone and computer support 5G WiFi.) Channel: 14 choices, to avoid network overload.
- Page 15 When you connect your C6’s LAN port to a networked router, your C6 will automatically obtain an IP address. 2. Use the Following IP Address To use a specific IP address, enter information for [ IP ], [ Subnet Mask ] and [ Gateway ], then connect C6 LAN port to the router.
-
Page 16: Chapter 4 C6 Async Content Editing And Sync Playing
Chapter 4 C6 Async Content Editing and Sync Playing 4.1 Async Content Editing When you open LEDVISION, you will see [ LED1 ] in program editing area. Right-click [ LED1 ] to add [ normal page ], you can add [ file window ] in [ normal page ], then add [ image ] and [ video ] under the [ file window ] to... -
Page 17: Async Content Publishing
www.lednets.com 4.2 Async Content Publishing 4.2.1 Publish Contents through Direct USB ① In [ program editing area ], after finishing content editing, select the [ program page ] that you are going to publish;... - Page 18 ② Click [ C6 ] and then right-click to choose [ Publish Program to current playbox ], you must rename the content and allow it to finish uploading to fully publish your program.
-
Page 19: Content Publishing Through Usb Disk
www.lednets.com 4.2.2 Content Publishing through USB disk 1. To begin publishing through USB, first insert your USB stick to the PC USB port. Click [ Publish Program to C Series Playboxes ] (as shown in the red box) to extend program publishing window. Note: USB stick should be empty before publishing for best performance. - Page 20 ② Choose USB Stick Mode: ● Play program from USB stick ( Auto play USB stick contents after inserting to C6; and the content won’t be stored in C6). ● Upload program from USB stick ( Auto play USB stick content after inserting to C6; the content will be stored in C6).
- Page 21 ③ Select the drive letter under USB stick group, and then right-click to choose [ Publish the current program to the selected disk ], after publishing program successfully, insert USB stick into C6 USB port. Note: A rotating circle in LED upper left corner will appear during the upload procedure. You may unplug the USB...
-
Page 22: Sync Playing
4.3 Sync Playing In sync play, your C6 plays contents sent to its HDMI port by an external source like your PC. Note: C6 will automatically switch to play sync signal content when an external HDMI signal input is detected. You... -
Page 23: Chapter 5 Network Management Of C6
1. LAN Connection: Connect C6 to network through WiFi or LAN port. 2. C6 network management: After controlled end ( PC, smart phone, or other device) and C6 are connected into same LAN, select [ LAN ] then [ Refresh ]. LEDVISION will auto identify C6, which will have already connected to same network and place C6 into Default Group. -
Page 24: Add Group And C6
1. Add Group: Select [ LAN ], and right-click to choose [ Add Group ]. 2. Add C6 Device: Select any playbox group, and right-click to choose [ Manually Add Playbox ], then input C6’s corresponding IP (Add even if your device did not connect to network). - Page 25 www.lednets.com...
