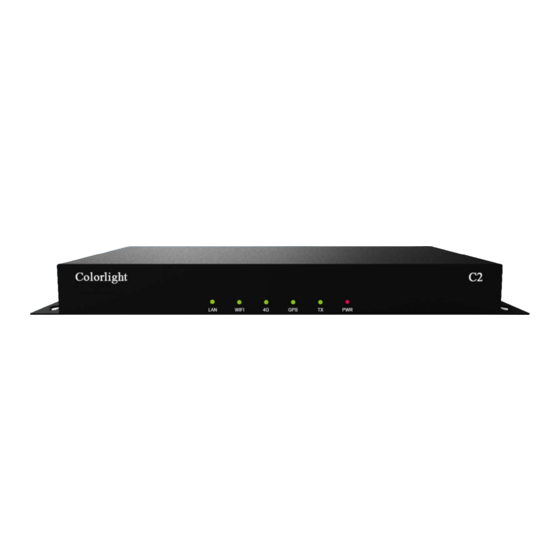

  • Page 1 C2 PLAYER...

  • Page 2: Table Of Contents

    CONTENT Chapter 1 C2 Interface and Hardware Connection ................................1 1.1 C2 Interface ............................................2 1.2 Hardware Connection ........................................3 Chapter 2 LEDVISION Installation......................................4 Chapter 3 C2 Settings ..........................................6 3.1 Connect with USB Cable ........................................6 3.2 Basic Settings ............................................ 8 3.3 Advanced Settings ..........................................

  • Page 3: Chapter 1 C2 Interface And Hardware Connection

    Chapter 1 C2 Interface and Hardware Connection...

  • Page 4: C2 Interface

    1.1 C2 Interface Name Functions HDMI Output Signal output, connecting with LCD Audio Output HIFI stereo output CONFIG Port Screen parameters setting; Program publishing USB Port Program updating through U disc LAN Port Access network Power Port DC12V WIFI interface...

  • Page 5: Hardware Connection

    1.2 Hardware Connection C2 Configuration Control & Play without computer...

  • Page 6: Chapter 2 Ledvision Installation

    Chapter 2 LEDVISION Installation First download the installation package of LEDVISION software from Colorlight’s official website www.colorlightinside.com, and complete the installation according to the diagrams below. 1. Run the software package, and select [ English ] for installer language. Click [ OK ] to move on.
  • Page 7 www.colorlightinside.com 2. After selecting a language, an installation wizard like below will appear. Click [ Next ]. Then choose installation location, click [ Browse ] to change default target location, then click [ Next ] after completing; Choose components according to your own computer status, click [ Install ] to complete; After the installation is complete you are ready to use LEDVISION.

  • Page 8: Chapter 3 C2 Settings

    Chapter 3 C2 Settings 3.1 Connect with USB Cable 1. Before connecting C2 to the computer, first click the control menu [ Control ] – [ Screen Control ], then select [ C-Series Play Box ] in Select Sending Device.
  • Page 9 Net Card mode and C2 CONFIG interface. 2. Use standard USB A/B cable to connect C2 to computer when C2 is powered on. Click [ Publish Program to C Series Playboxes ] (as shown in the red box) to enter program publish...

  • Page 10: Basic Settings

    3.2 Basic Settings ● Ensure LCD display is powered. ● When setting C2 parameters, connect C2 to PC through a standard USB A/B cable, and connect C2 to LCD screen through HDMI cable. Time Settings: Click [ Modify ] to set up date and time, or time zone, etc.
  • Page 11 1. After connecting C2 to the computer, a C2 player will show up in Direct USB, you can check the specific information and some basic settings about it through selecting the player.
  • Page 12 2. In Program Management, you can conduct a comprehensive management on programs in C2 player.
  • Page 13 www.colorlightinside.com 3. Schedule In Schedule Settings, click [ Add ] to add schedule for programs, sleep, wakeup, reboot, brightness adjustment, media volume, etc. as shown below:...
  • Page 14 www.colorlightinside.com Edit schedule:...

  • Page 15: Advanced Settings

    www.colorlightinside.com 3.3 Advanced Settings 3.3.1 Playing Parameters Resolution [ Width ] / [ Height ]: LCD pixel Resolution in width and height, the device will reboot after applying.

  • Page 16: Network

    www.colorlightinside.com 3.3.2 Network 1. WiFi Check [ WiFi ] in network tab, and input your WiFi login information in terms of [ SSID ] and [ Password ], then click [ Apply ] to complete setting, click [ Refresh ]/[ Details ] to check connection status.
  • Page 17 2. WiFi Hotspot Make the C2 acts as a WiFi Hotspot. Note: You must change the default password of the C2 WiFi Hotspot. [ Band ]: 2.4G or 5G (5G mode will be more reliable if your controlling devices such...
  • Page 18 3. LAN (Network Cable) [ Automatically Obtain IP Address ] (Default)  When you connect C2’s LAN port into a LAN capable of providing IP address, C2 will automatically obtain an IP address. [ Use Following IP Address ] ...
  • Page 19 www.colorlightinside.com 4. 4G Check [ 4G ] in network tab, click [ Apply ] and [ Refresh ] to access 4G network, click [ Test Network State ] to check connection status.

  • Page 20: Chapter 4 Program Editing And Publishing

    www.colorlightinside.com Chapter 4 Program Editing and Publishing 4.1 Program Editing When you open LEDVISION, you will see [ LED1 ] in program editing area. Right-click [ LED1 ] to add [ Normal Page ], add [ File Window ] in [ Normal Page ], then add [ Image ] and [ Video ] under the [ File Window ] to add media for asynchronous play.

  • Page 21: Program Publishing

    www.colorlightinside.com 4.2 Program Publishing 4.2.1 Publish Program through Direct USB Cable...
  • Page 22 www.colorlightinside.com 1. In [ Program Editing Area ], after finishing program editing, select the [ Program Page ] that you are going to publish; 2. Right-click the device and choose [ Publish current program to the selected player ], rename the program and wait for the uploading finish.

  • Page 23: Publish Program Through Lan

    www.colorlightinside.com 4.2.2 Publish Program through LAN...
  • Page 24 www.colorlightinside.com 1. In [ Program Editing Area ], after finishing program editing, select the [ Program Page ] that you are going to publish; 2. Right-click the device and choose [ Publish current program to the selected player ], rename the program and wait for the uploading finish.

  • Page 25: Publish Program Through Usb Disk

    www.colorlightinside.com 4.2.3 Publish Program through USB Disk 1. To begin publishing through USB, first insert your USB disk to a PC USB port; Click [ Publish Program to C-Series Playboxes ] to expand program publishing window. Note: USB disk should be empty before publishing for best performance.
  • Page 26 2. Software will automatically detect USB disk when plugged in, click [ USB Disk ], find the USB Disk. 1) Select the [ Program Page ] in Program Editing Area. 2) Choose USB Disk Mode: ●Play program from USB disk (Auto play USB disk content after inserting to C2; and the content won’t be...
  • Page 27 C2) ●Update program from USB disk (Auto play USB disk content after inserting to C2; and the content will be copied and stored in C2) 3) Select the drive letter under USB Disk, then right-click to choose [ Publish current program to the selected USB disk ], after publishing program successfully, insert the USB disk into C2 USB port.

  • Page 28: Chapter 5 Manage C2 From Lan

    2. Auto Scan: After controlling end (PC, smart phone, or other device) and C2 are connected into the same LAN, select [ LAN ] then [ Refresh ], LEDVISION will scan automatically C2 in the LAN and place C2 into Default Group.

  • Page 29: Manual Connect C2

    1. Add Group: Select [ LAN ], and right- click to choose [ Add Group ]. 2. Add C2: Select any player group, and right-click to choose [ Manually Add Player ], then input C2’s corresponding IP (Can add even if the C2 is not connecting to the network).
