  • Page 1 C6 LED Player...

  • Page 2: Table Of Contents

    CONTENT 1 C6 Interface and Hardware Connection ............1 1.1 C6 Interface ..................1 1.2 Hardware Connection ............... 2 2 LEDVISION Installation ................3 3 C6 Parameter Settings ................. 5 3.1 Connection Settings ................5 3.2 Basic Settings ................... 7 3.3 Advanced Settings ................10...

  • Page 3: C6 Interface And Hardware Connection

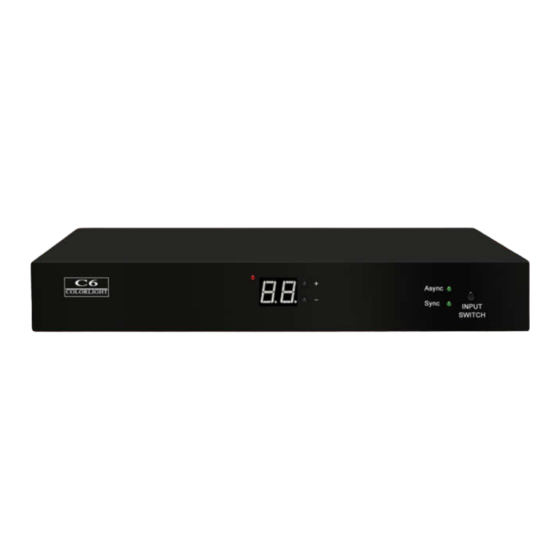

    1 C6 Interface and Hardware Connection 1.1 C6 Interface Name Functions Indicator Green indicator shows Async or Sync display Switch Button Switch between Async & Sync display WiFi Interface Connect with WiFi antenna 4G Interface Connect with 4G antenna (Optional)

  • Page 4: Hardware Connection

    www.colorlightinside.com 1.2 Hardware Connection...

  • Page 5: Ledvision Installation

    1. Run the software package, and select [ English ] for installer language. Click [ OK ] to move on. Note: Run LEDVISION version 5.0 or higher while using C6. 2. After selecting a language, an installation wizard like below will appear. Click [ Next ].
  • Page 6 www.colorlightinside.com Choose components according to your own computer status, click [ Install ] to complete; After the installation is complete you are ready to use LEDVISION.

  • Page 7: C6 Parameter Settings

    3 C6 Parameter Settings 3.1 Connection Settings 1. Before connecting C6 to the computer, first click the control menu [ Control ] – [ Screen Control ], then select [ C-Series Play Box ] in Select Sending Device, then set up [ LED Screen Window Management ].
  • Page 8 Note: If you do not complete this step, LEDVISION may not function properly because of a conflict between Net Card mode and C6 CONFIG interface.

  • Page 9: Basic Settings

    2. Use standard USB A/B cable to connect C6 to computer when C6 is powered on, one side to connect USB port, another side for C6 CONFIG port. Click [ Publish Program to C Series Playboxes ] (as shown in the red box) to enter program publish interface.
  • Page 10 Schedule: Conduct timing settings on command contents like play program, sleep, wakeup, reboot, brightness adjustment, etc. 1. After connecting C6 to the computer, a C6 player will show up in Direct USB, you can check the specific information and some basic settings about it...
  • Page 11 2. In Program Management, you can conduct a comprehensive management on programs included in C6 player, and all programs can be deleted in Program Management regardless of the type and source. 3. Schedule Settings: In Schedule Settings, click [ Add ] to add schedule command, and...

  • Page 12: Advanced Settings

    www.colorlightinside.com Commands can be edited and deleted after completing adding schedule commands. 3.3 Advanced Settings 3.3.1 Playing Parameters ①LED Resolution The [ Width ] / [ Height ] you input must be equal to or slightly larger than the actual screen resolution. ②Input Type: HDMI or Internal Media...

  • Page 13: Network

    www.colorlightinside.com ③Output [ Every Frame ] (Default) [ Every Other Frame ] (Choose [ Every Other Frame ] can help avoid lag when image loading area is too large) ④Control Area Select [ Custom ] in control area, and modify the values according to your network port control area, click [ Apply ] to complete setting.
  • Page 14 www.colorlightinside.com setting, click [ Details ] to check connection status.
  • Page 15 [ Channel ]: 14 or 24 choices, to avoid network overload. ③LAN (Network Cable) 1. [ Automatically Obtain IP Address ] (Default) When you connect your C6’s LAN port to a networked router, C6 will automatically obtain an IP address. 2. [ Use Following IP Address ] To use a specific IP address, enter information for [ IP ], [ Subnet Mask ], [ Gateway ], then connect C6 LAN port to the router.
  • Page 16 www.colorlightinside.com 3. [ Details ] View network connection information like Status, Mac Address, IP address, etc. ④4G Check [ 4G ] in network tab, click [ Apply ] and [ Refresh ] to access 4G network, click [ Test Network State ] to check connection status.

  • Page 17: Async Program Editing And Sync Playing

    www.colorlightinside.com 4 Async Program Editing and Sync Playing 4.1 Async Program Editing...

  • Page 18: Async Program Publishing

    ①In [ Program Editing Area ], after finishing program editing, select the [ Program Page ] that you are going to publish; ②Click [ C6 ] and then right-click to choose [ Publish current program to the selected player ], you must rename the program and allow it to finish...

  • Page 19: Publish Program Through Ethernet Port

    ①In [ Program Editing Area ], after finishing program editing, select the [ Program Page ] that you are going to publish; ②Click [ C6 ] and then right-click to choose [ Publish current program to the selected player ], you must rename the program and allow it to finish uploading to fully publish your program.
  • Page 20 www.colorlightinside.com publishing window. Note: USB disk should be empty before publishing for best performance. Remove previous updated programs before using it to update or play new programs, so as to avoid any problems.
  • Page 21 ①Select the [ Program Page ] in Program Editing Area. ②Choose USB Disk Mode: ●Play program from USB disk (Auto play USB disk content after inserting to C6; and the content won’t be stored in C6) ●Update program from USB disk (Auto play USB disk content after inserting to C6;...

  • Page 22: Sync Playing

    You may unplug the USB drive after the circle disappears. 4.3 Sync Playing In sync playing, your C6 plays programs sent to its HDMI port by an external source like your PC. Note: C6 will automatically switch to play sync signal program when an external HDMI signal input is detected.

  • Page 23: Network Management Of C6

    2. C6 Network Management: After controlled end (PC, smart phone, or other device) and C6 are connected into same LAN, select [ LAN ] then [ Refresh ], LEDVISION will auto identify C6 in the LAN and place C6 into Default Group. You can manage your C6 under Default Group.
  • Page 24 www.colorlightinside.com...
